Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel accessory trim plate. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in INSTRUMENT PANEL, GAGES, AND CONSOLE
- Remove the accessory switch from the instrument panel. Refer to ACCESSORY SWITCH REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE e.

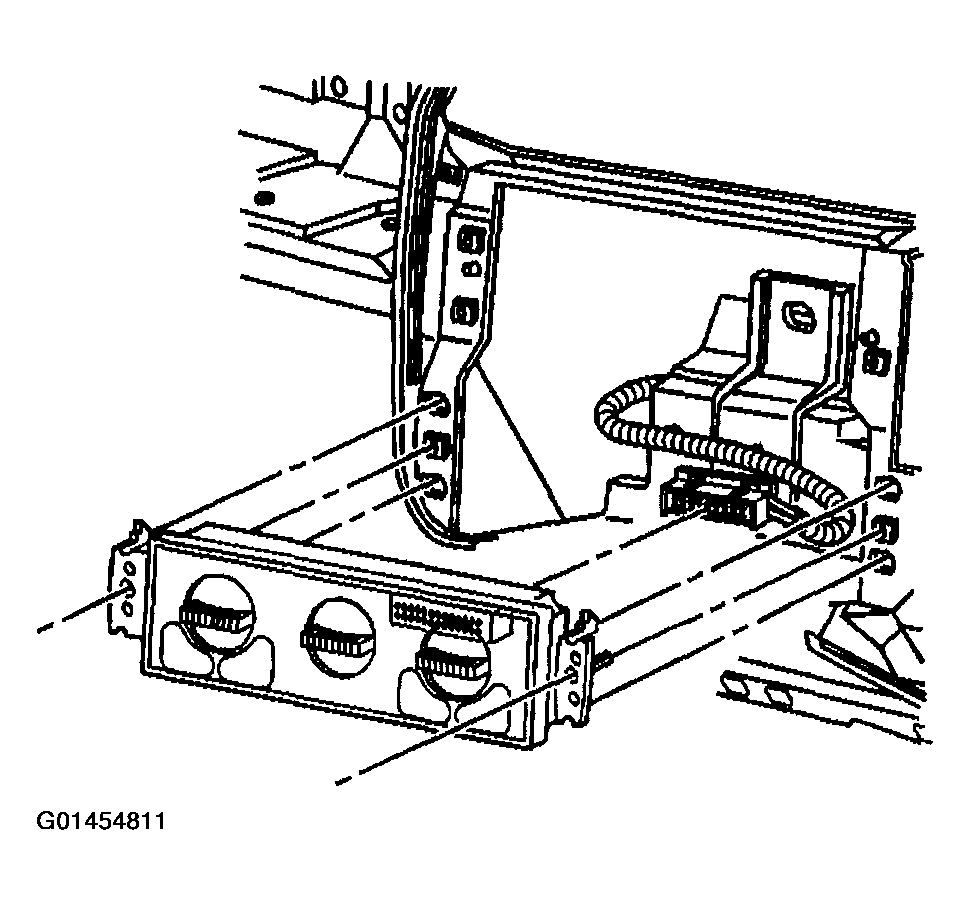

- Remove the screws from the HVAC control module.
- Depress the control assembly retaining tabs and remove the HVAC control module from the instrument panel.
- Disconnect the electrical connectors from the HVAC control module.
