Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove wiper module. Refer to WIPER MOTOR MODULE REPLACEMENT .
Remove the upper strut mounting nuts.

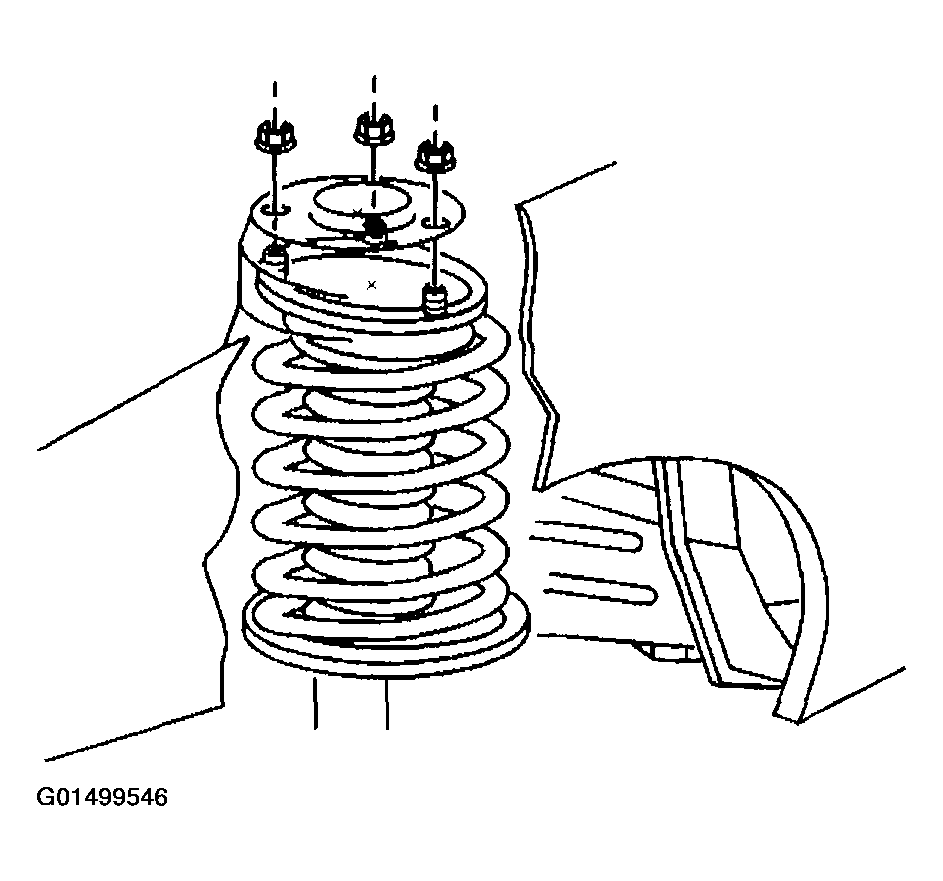

Fig 1: Removing Upper Strut Mounting Nuts
Courtesy of GENERAL MOTORS CORP.

Important: Lift the vehicle using ONLY a frame-contact vehicle lift. Do NOT lift the vehicle using a suspension-contact vehicle lift.
Raise and support the vehicle.
Remove the tire and wheel.
Scribe the strut to the steering knuckle.

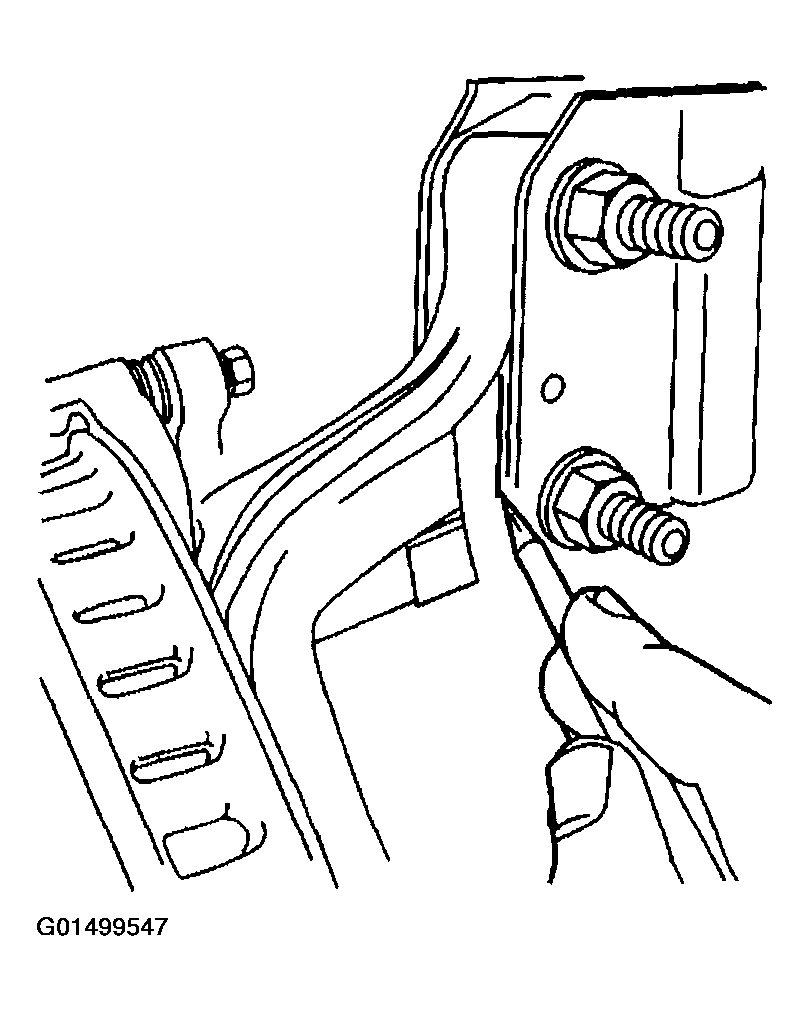

Fig 2: Scribing Strut To Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the strut lower mounting bolts and nuts.
Remove the strut.

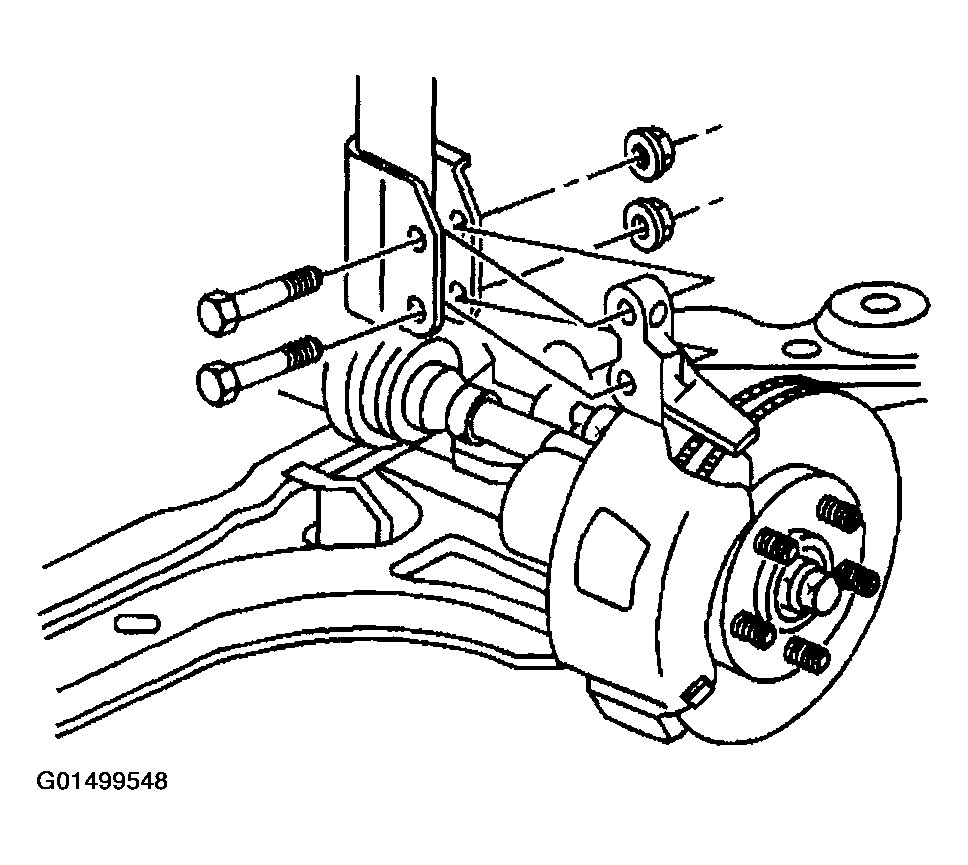

Fig 3: Removing Strut Lower Mounting Bolts And Nuts
Courtesy of GENERAL MOTORS CORP.
