Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container level sensor and seal to the washer solvent container pressing in until fully seated.

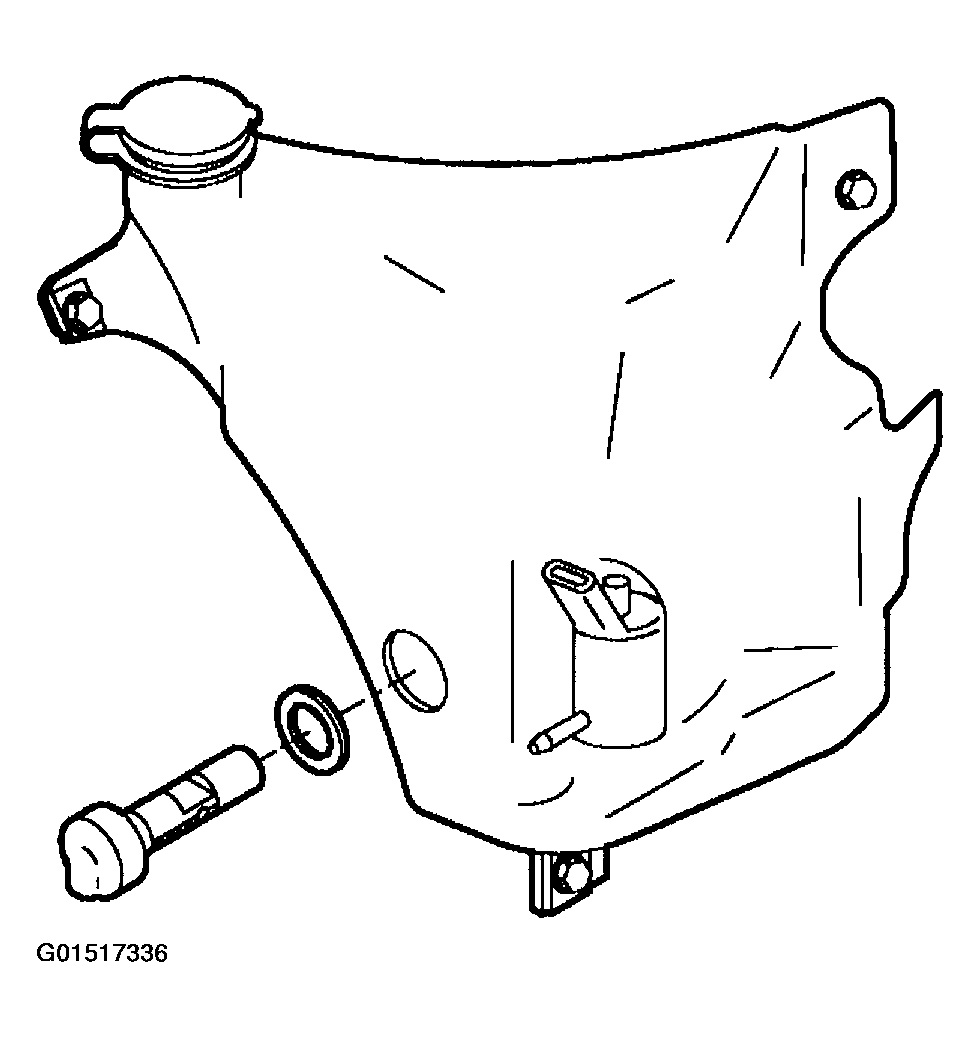

    Fig 1: Positioning Washer Solvent Container Level Sensor And Seal
    G01517336Courtesy of GENERAL MOTORS CORP.
  2. Connect the washer solvent container level sensor electrical connector.
  3. Fill the washer solvent container with washer solvent.
  4. Close the hood.

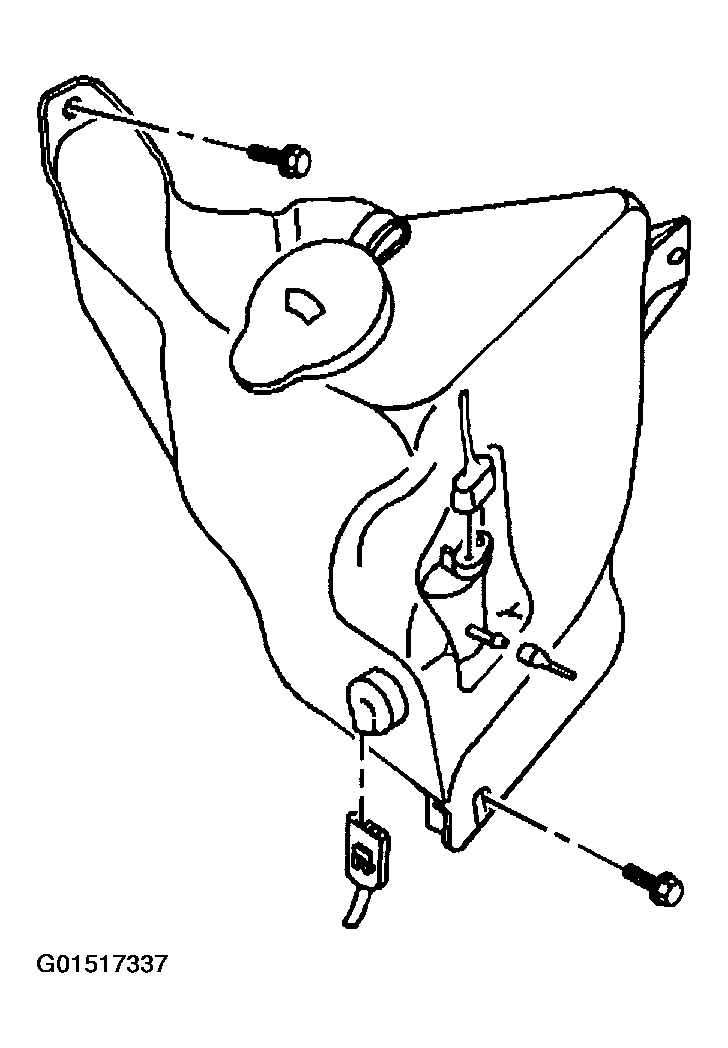

    Fig 2: Connecting Washer Solvent Container Level Sensor Electrical Connector
    G01517337Courtesy of GENERAL MOTORS CORP.
