Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the screws to the overhead compartments.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  2. Install the second seat audio controls to the overhead console. Refer to AUDIO CONTROL REPLACEMENT -- SECOND SEAT (AZTEK) or AUDIO CONTROL REPLACEMENT -- SECOND SEAT (RENDEZVOUS) .
  3. Close the overhead compartment doors.

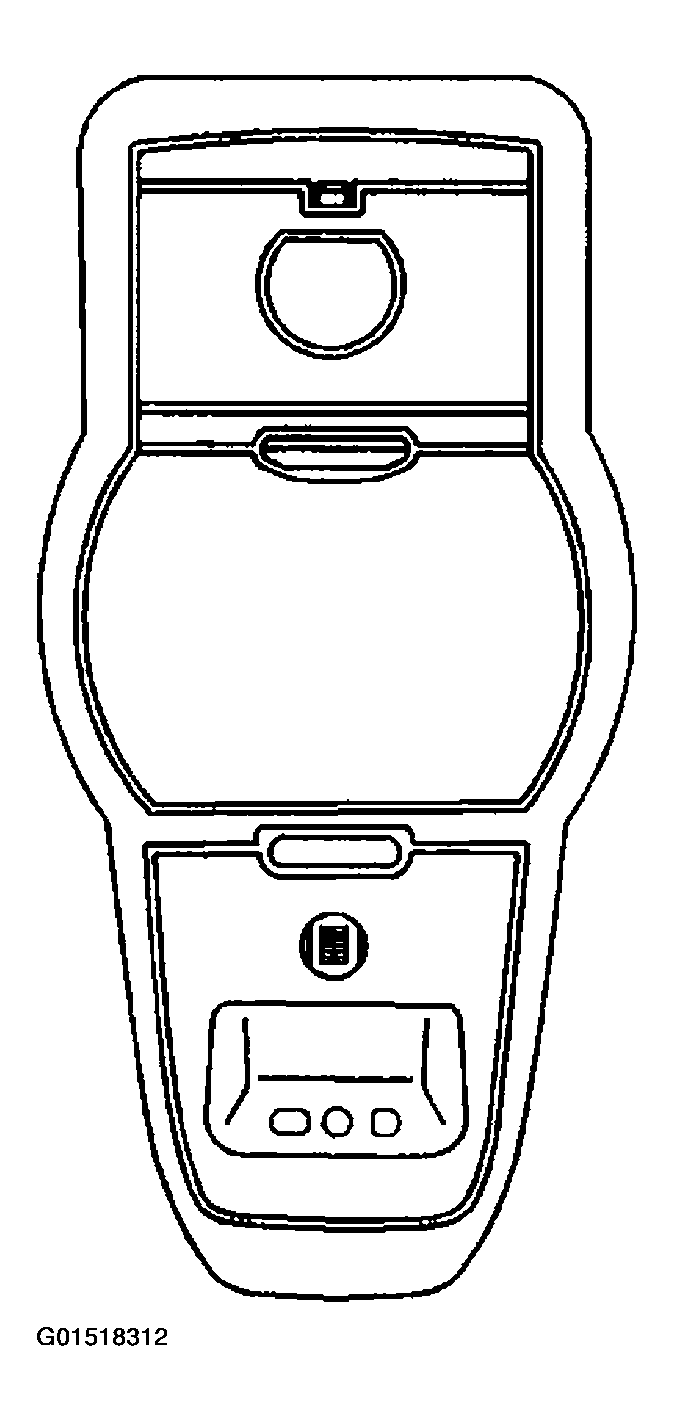

    Fig 1: Installing Procedure Of Console - Overhead (Aztek)
    G01518312Courtesy of GENERAL MOTORS CORP.
