Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

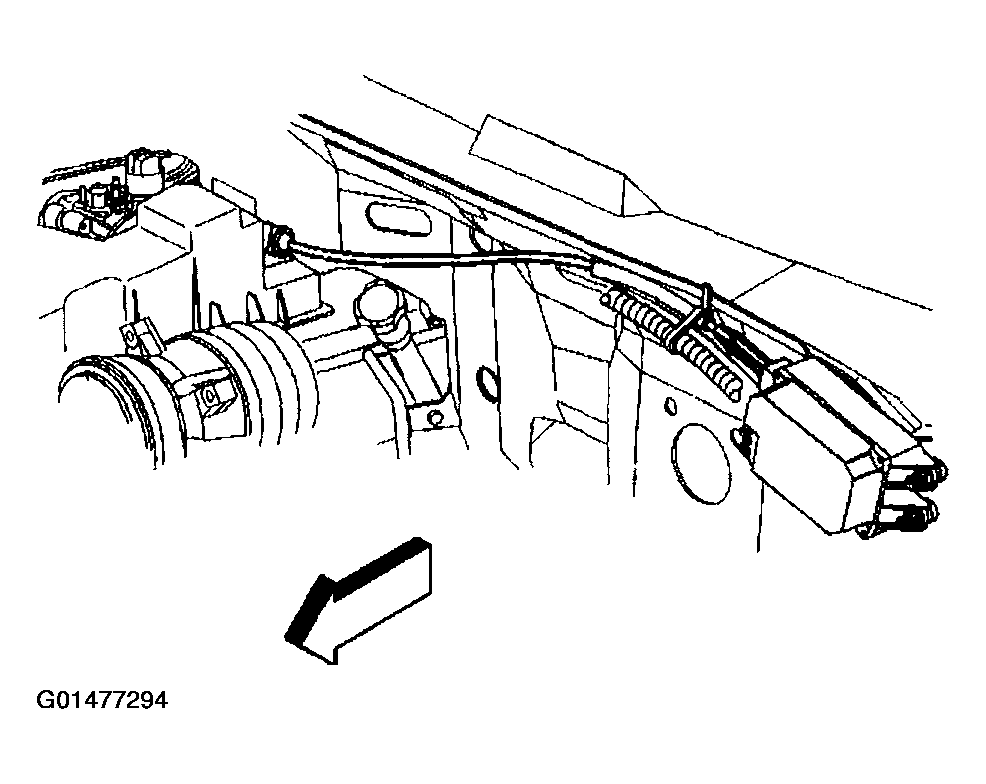

- Connect the cruise control cable to the vehicle.
- Connect the cruise control cable bead to the fitting on the cruise control module ribbon.
- Pull the cruise control cable until the cable is taut.
- Turn the cruise control cable at the engine-end fitting in order to straighten the cruise control module ribbon, as needed.
The ribbon must be flat and vertical.
- Slide the cruise control cable conduit over the ribbon.
- Install the tangs to the cruise control module housing.
Ensure that the tangs snap securely into place.
- Ensure the cruise control cable is routed in the original position.

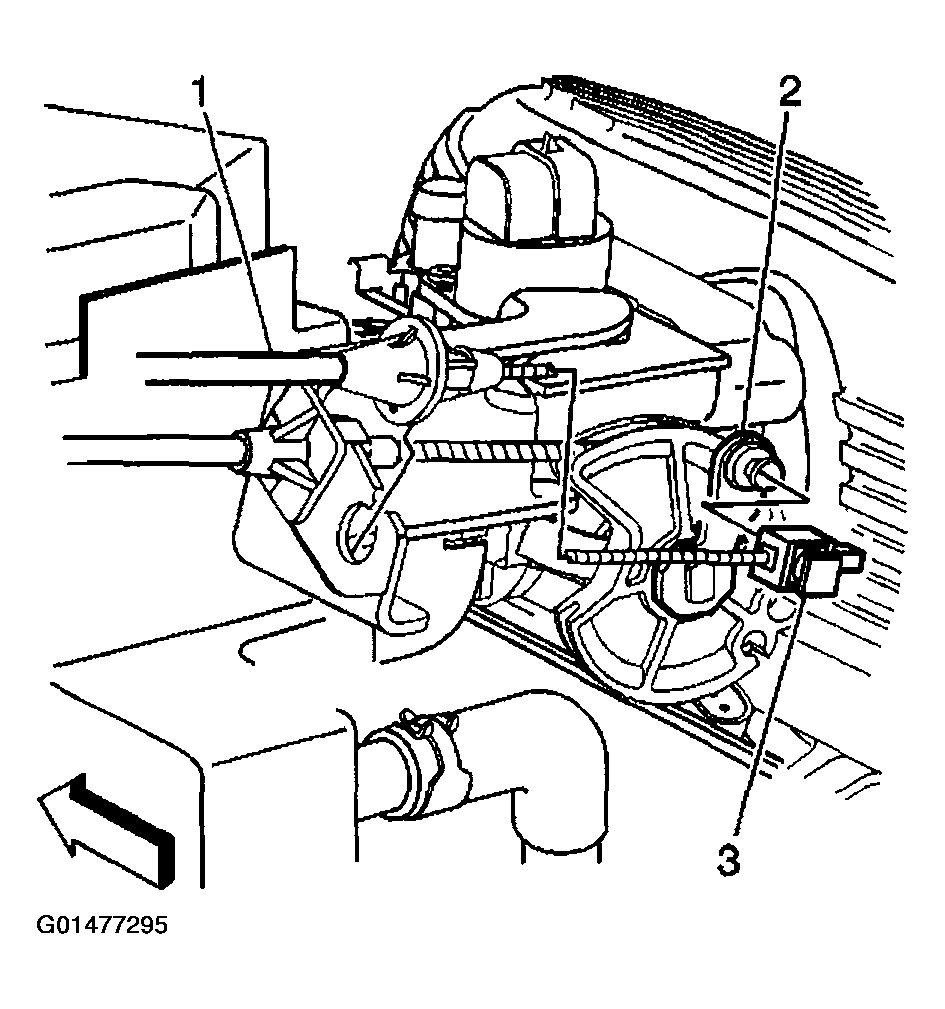

- Rotate the throttle cam lever in order to install the cruise control adjuster (3) onto the nail head on the throttle cam lever.
Discard any cable with kinks or damage to the core wire.
- Pull the cable conduit toward the right side of the vehicle. Thread the cable through the slot in the round hole of the cable bracket.
- Push the cable adjuster locking button into the locked position.
Important: Secure all of the components of the accelerator and the cruise control cables as specified. Ensure that the throttle linkage operates freely without binding between the idle position and the wide open throttle.
- Push the cable adjuster plunger into the locked position (2). Ensure that the white paint area is no longer visible.
The lash should automatically be set at 0.0-1.0 mm (0.0-0.04 in) by the adjuster.

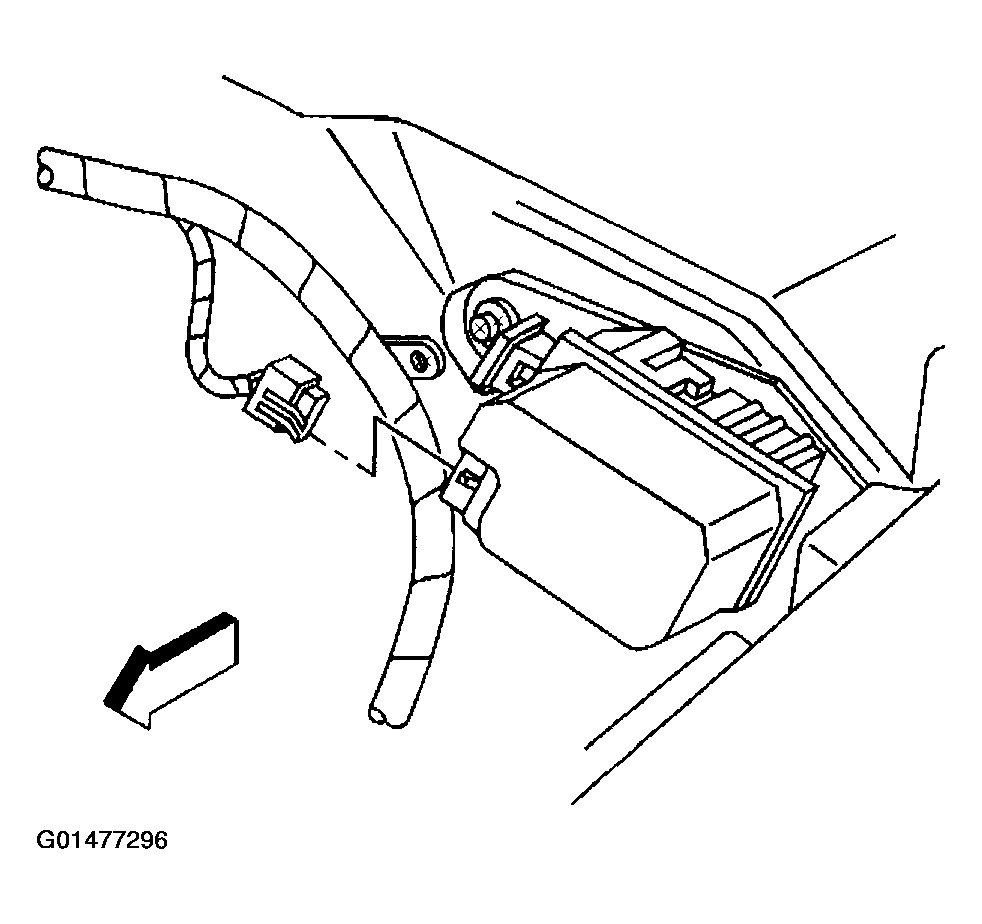

- Connect the electrical connector to the cruise control servo module.
