Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
in Cautions and Notices.
- Disconnect the battery negative cable.
- Disconnect the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT (4.3L) or CRUISE CONTROL CABLE REPLACEMENT (2.2L) .
- Disconnect the electrical connector.

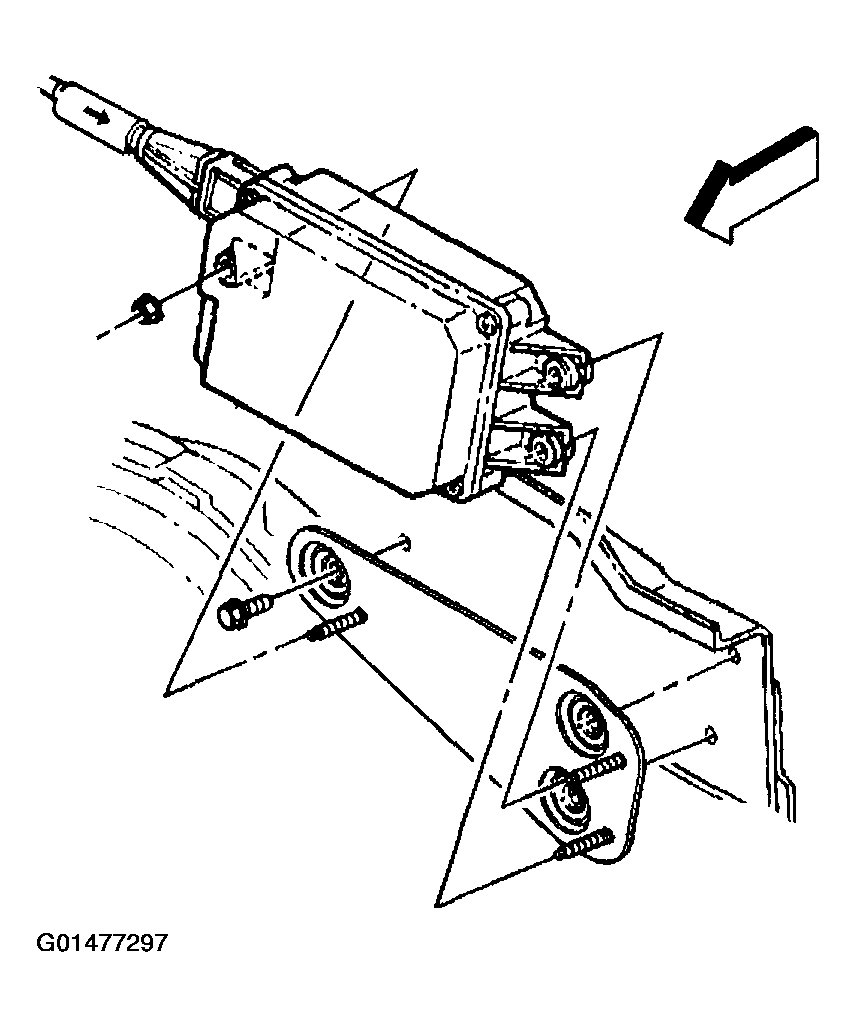

- Remove the 3 nuts that retain the cruise control module to the mounting bracket studs.
- Remove the cruise control module from the mounting bracket.
- Remove the 3 screws that retain the mounting bracket to the cowl panel.
