Starter/Generator Control Module Fan - HP2

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

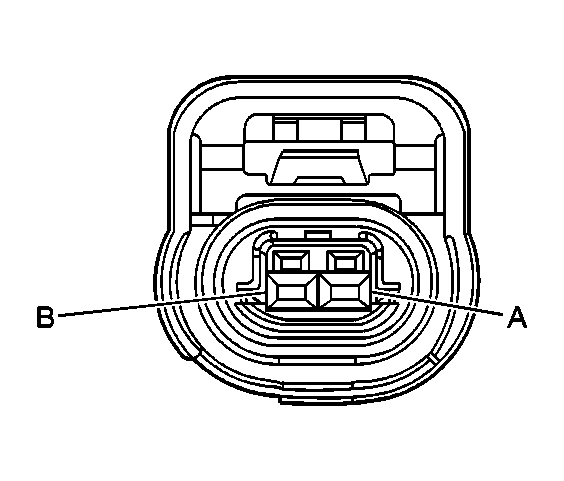

Starter/Generator Control Module Fan Terminal Identification - HP2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326801 2-Way F GT 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	LT BLU	409	Cooling Fan Motor Supply Voltage
B	BLK	150	Ground
