Head Up Display (HUD) Switch Connector End View

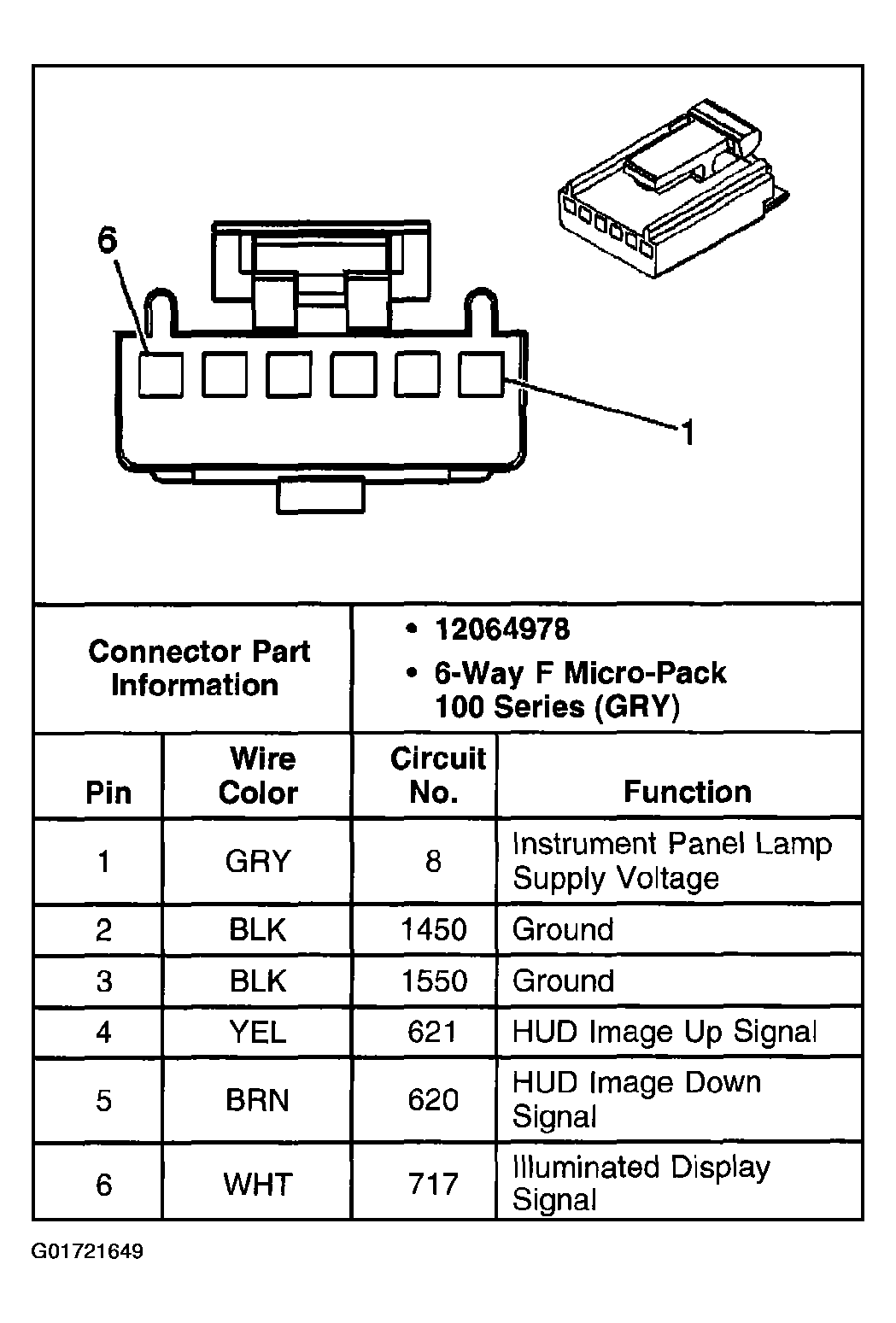

Fig 1: Head Up Display (HUD) Switch Connector End View
G01721649Courtesy of GENERAL MOTORS CORP.
