I/P Switch Assembly C1 (Buick) Connector End View

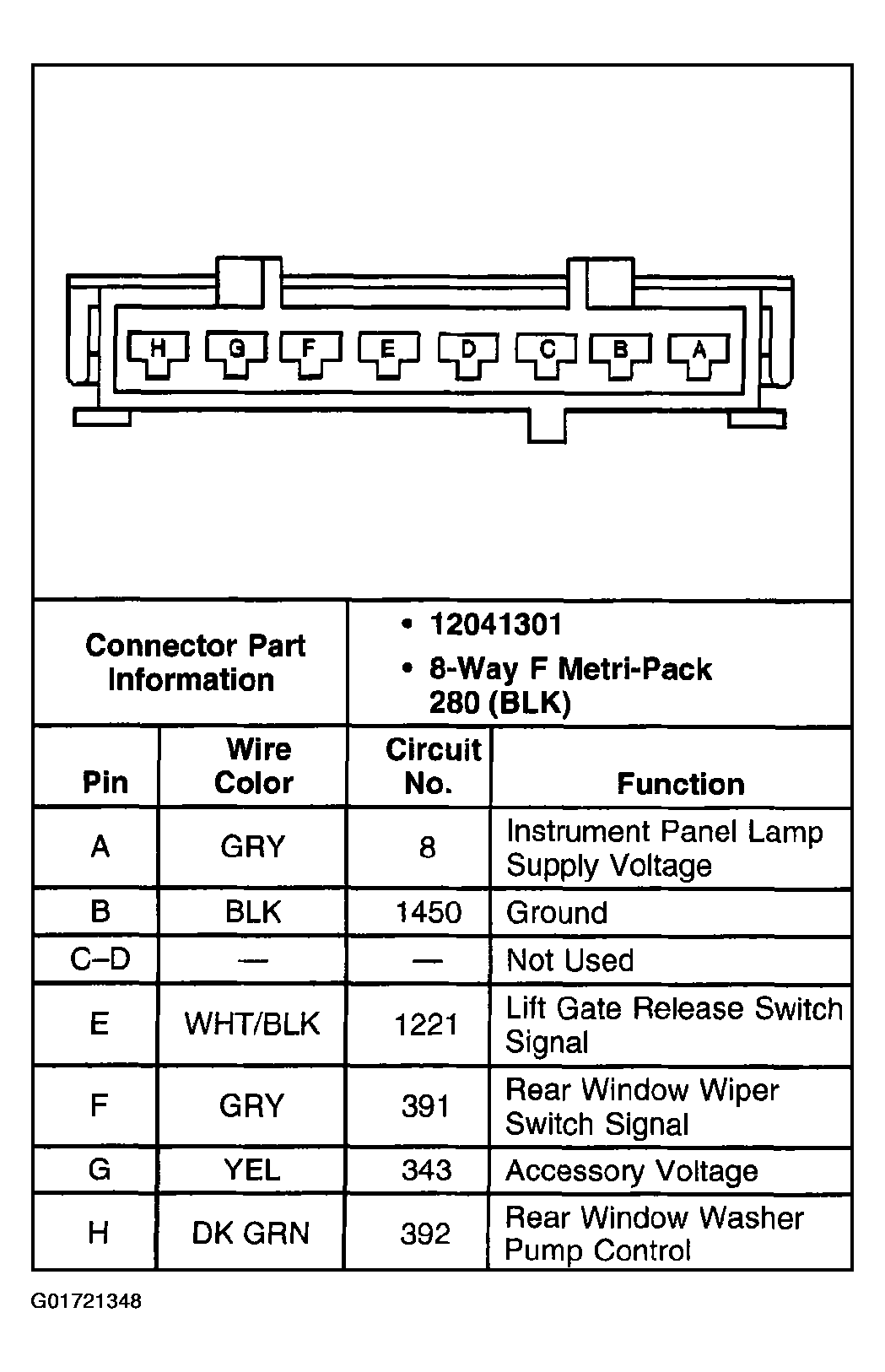

Fig 1: I/P Switch Assembly C1 (Buick) Connector End View
G01721348Courtesy of GENERAL MOTORS CORP.
