Steering Column Disassembled View (Aztek/250)

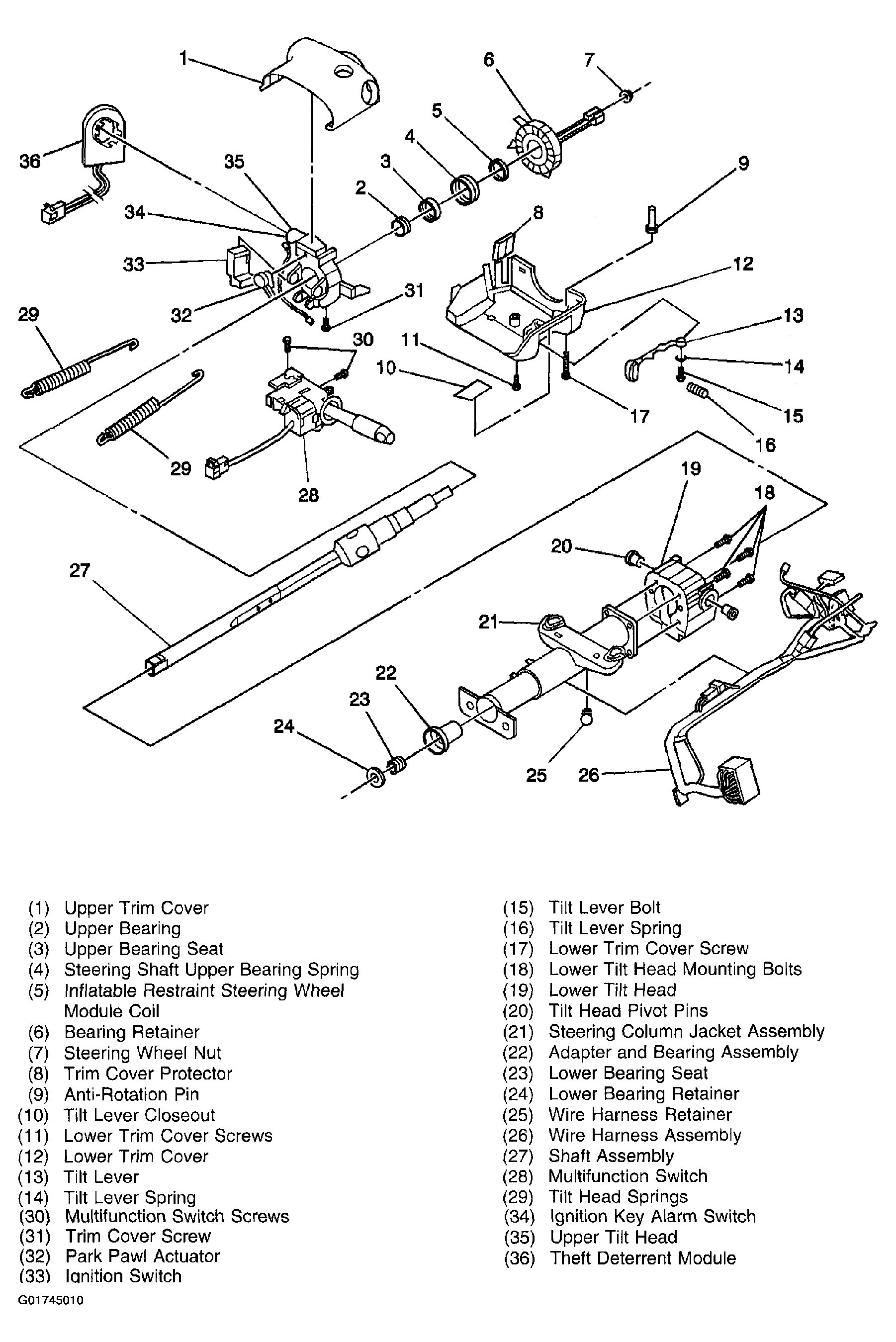

Fig 1: Steering Column Disassembled View (Aztek/250)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
