Automatic Level Control Suspension Component Views

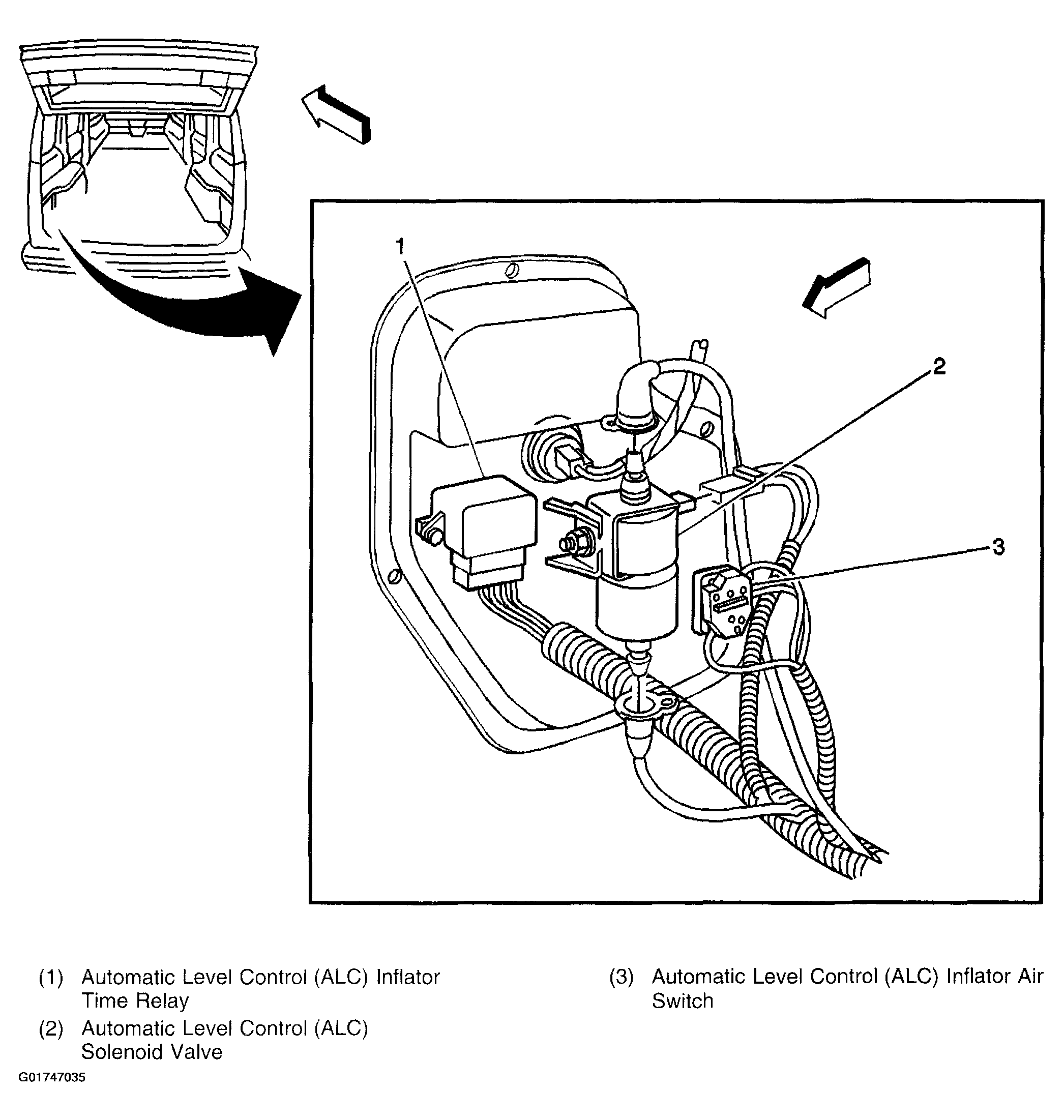

Fig 1: Relay, Switch and Solenoid Assembly
Courtesy of GENERAL MOTORS CORP.

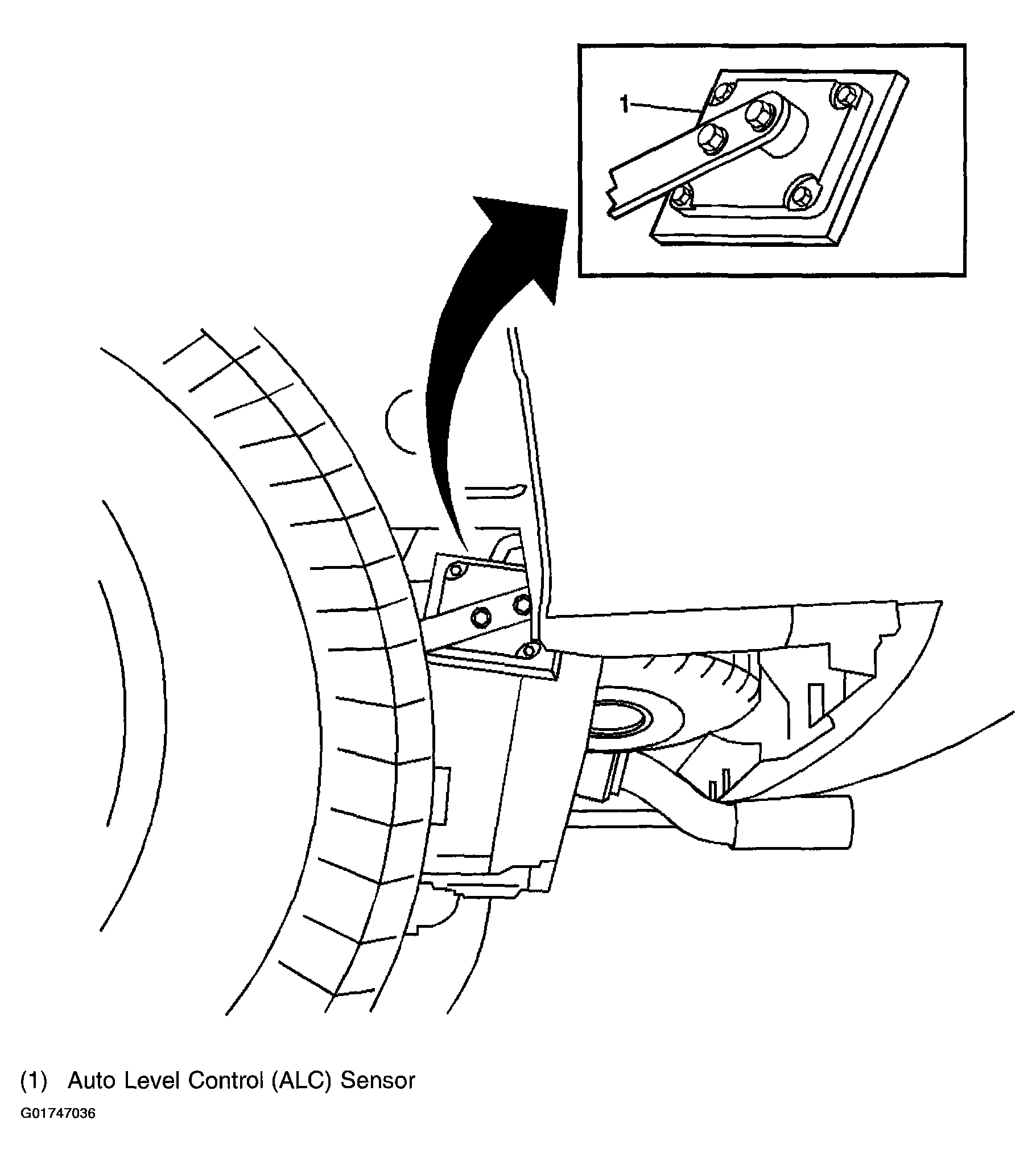

Fig 2: Automatic Level Control (ALC) Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
