Installation Procedure

  1. Install the air compressor to the air compressor bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the air compressor bolts (1).

    Tighten

    Tighten the air compressor bolts to 6 N.m (53 lb in).

  3. Install the air dryer. Refer to Automatic Level Control Air Dryer Replacement .

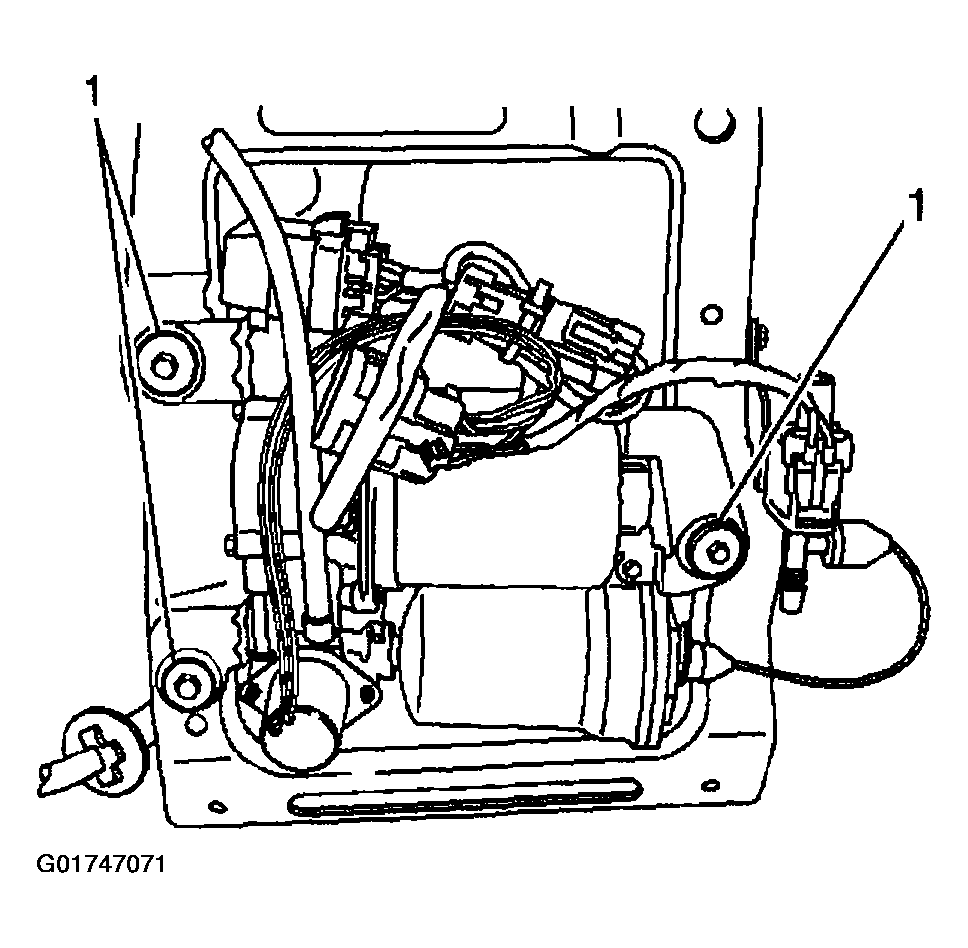

    Fig 1: Installing Air Compressor, Bracket & Bolts
    G01747071Courtesy of GENERAL MOTORS CORP.
  4. Install the air compressor and bracket to the underbody rail.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the air compressor bracket nuts.

    Tighten

    Tighten the air compressor bracket nuts to 10 N.m (89 lb in).

  6. Install the air compressor bracket bolts.

    Tighten

    Tighten the air compressor bracket bolts to 10 N.m (89 lb in).

  7. Connect the air compressor electrical connector.
  8. Connect the air tube to the air dryer.
  9. Install the air compressor filter to the underbody rail.
  10. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

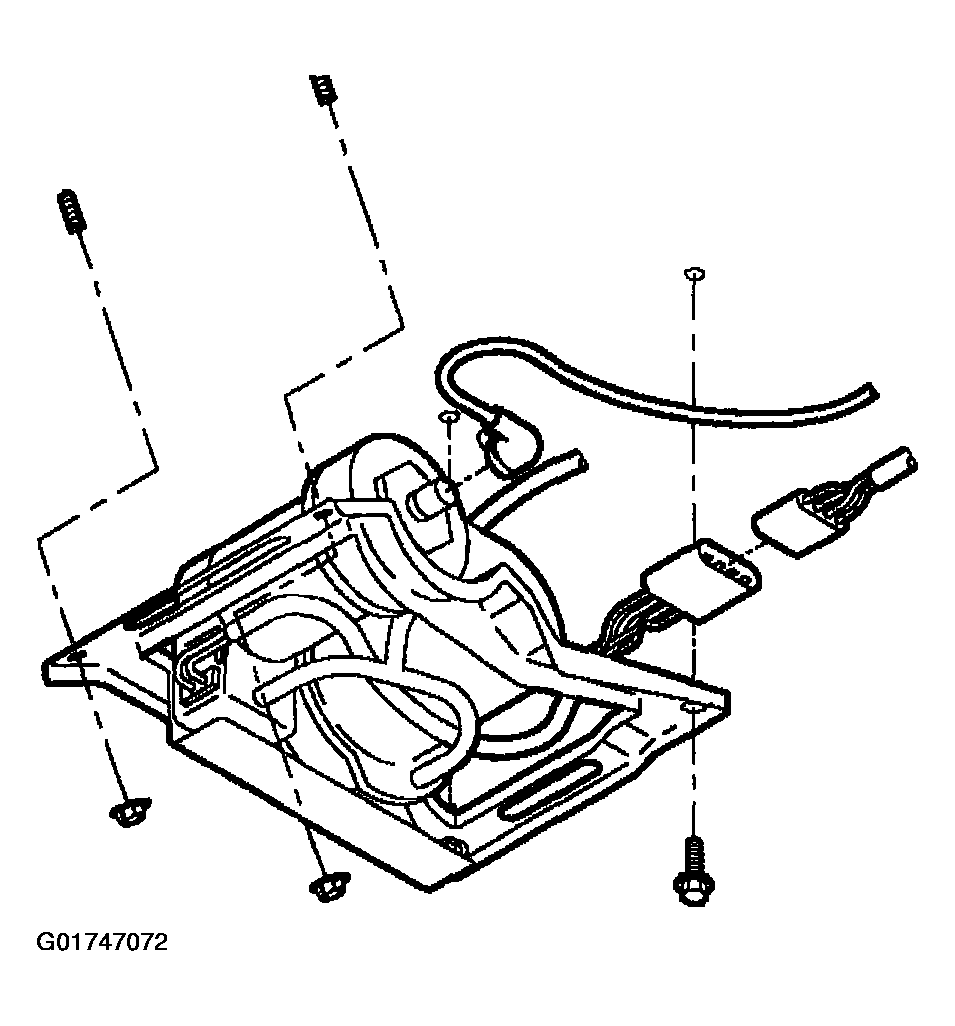

    Fig 2: Installing Air Compressor, Bracket, Nuts & Bolts
    G01747072Courtesy of GENERAL MOTORS CORP.
