Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the air compressor filter from the underbody rail.
  3. Disconnect the air tube from the air dryer.
  4. Disconnect the air compressor electrical connector.
  5. Remove the compressor bracket bolts.
  6. Remove the compressor bracket nuts.
  7. Remove the air compressor and bracket from the vehicle.

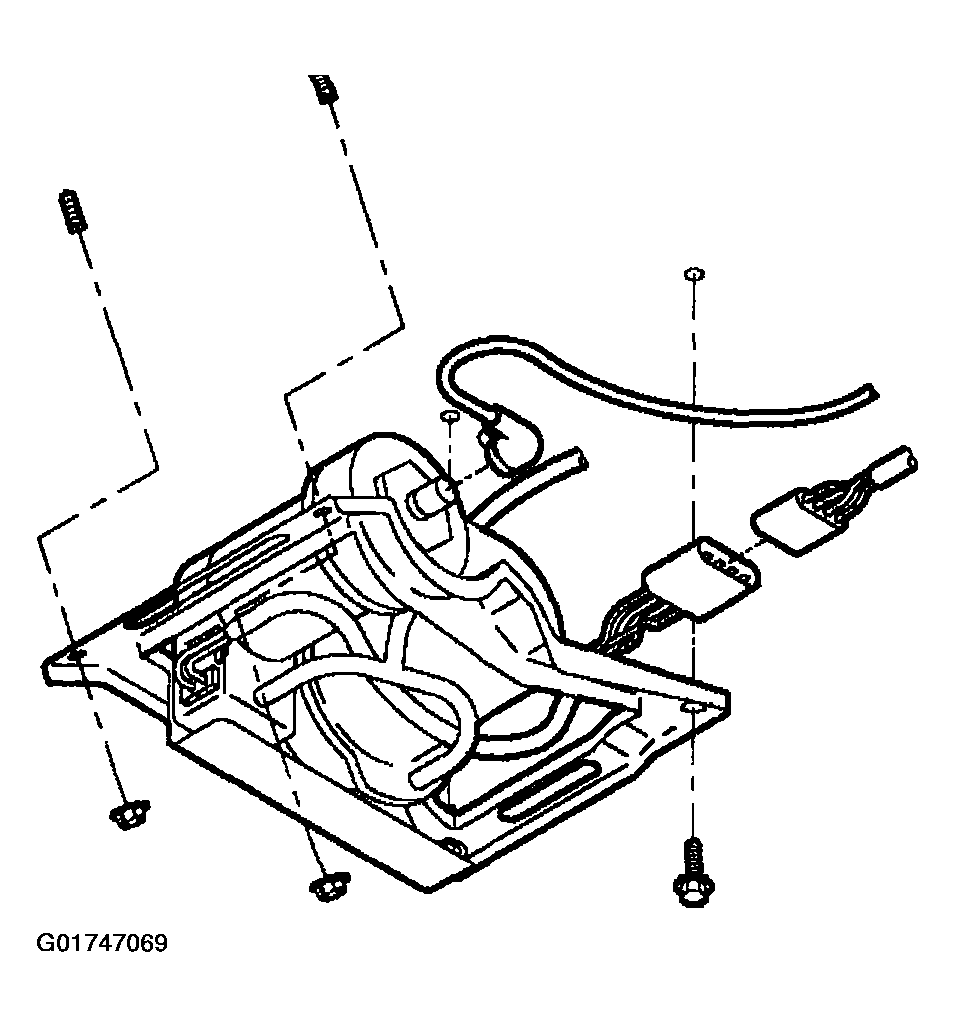

    Fig 1: Removing Air Compressor, Bracket, Nuts & Bolts
    G01747069Courtesy of GENERAL MOTORS CORP.
  8. Remove the air dryer. Refer to Automatic Level Control Air Dryer Replacement .
  9. Remove the air compressor bolts (1).
  10. Remove the air compressor from the air compressor bracket.

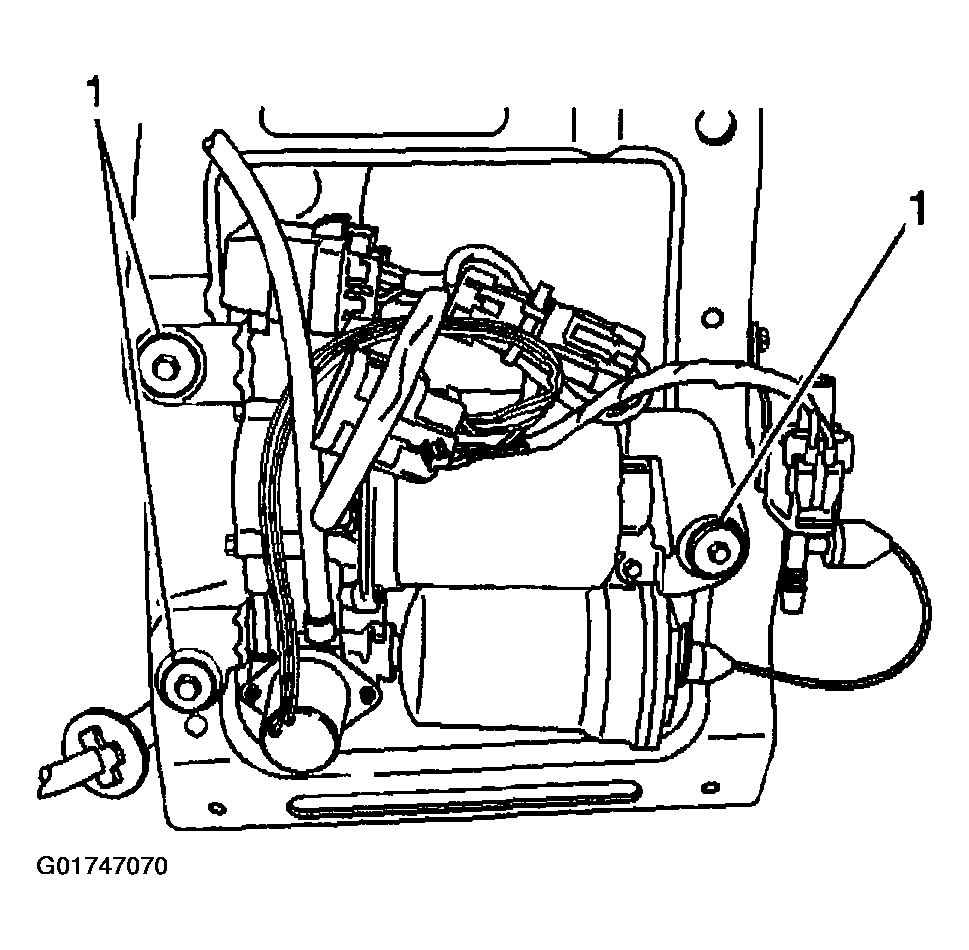

    Fig 2: Removing Air Compressor Bolts
    G01747070Courtesy of GENERAL MOTORS CORP.
