Removal Procedure

  1. Remove the automatic level control air compressor From the vehicle. Refer to Air Compressor Replacement .
  2. Remove the air dryer from the automatic level control air compressor. Refer to Automatic Level Control Air Dryer Replacement .
  3. Remove the wiring terminals B and D from the automatic level control air compressor electrical connector.
  4. Disconnect the exhaust hose from the automatic level control air compressor head.
  5. Remove the bolts/screws from the automatic level control air compressor head (2).
  6. Remove the automatic level control air compressor head.
  7. Remove the O-ring (3) from the automatic level control air compressor.

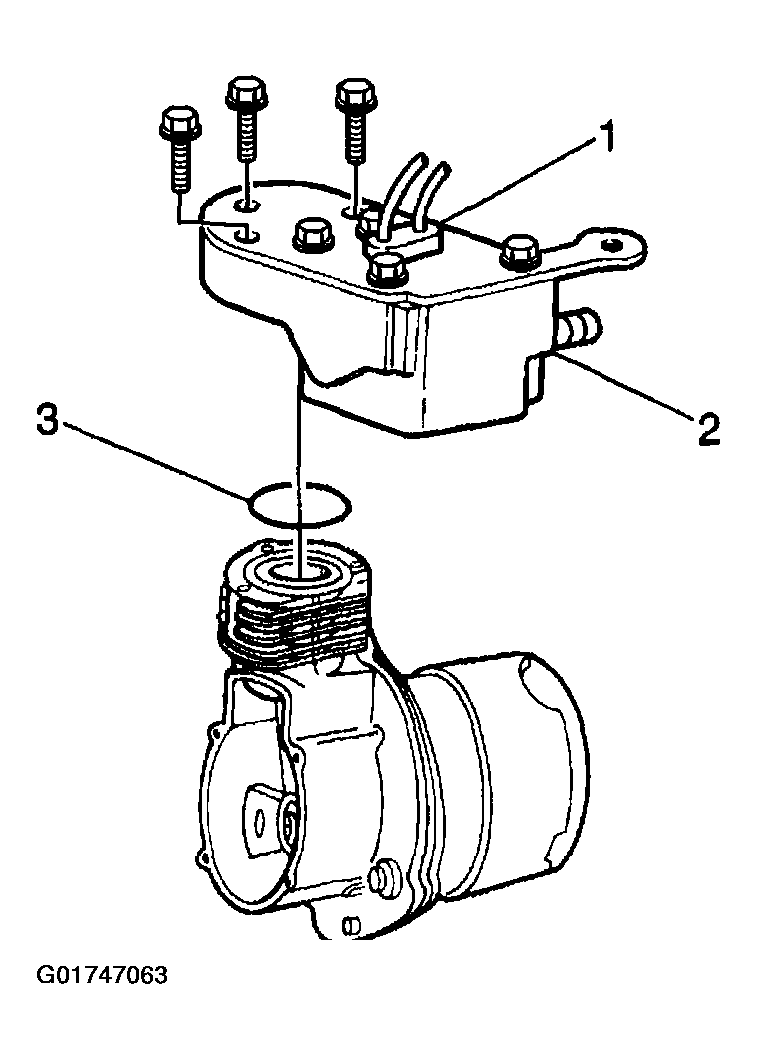

    Fig 1: Removing O-Ring & Bolts/Screws From Automatic Level Control Air Compressor
    G01747063Courtesy of GENERAL MOTORS CORP.
