Installation Procedure

  1. Install the air dryer (2) to the air dryer bracket (1) and automatic level control air compressor head (4).
  2. Rotate the clip 90 degrees in order to retain the dryer to the automatic level control air compressor head.

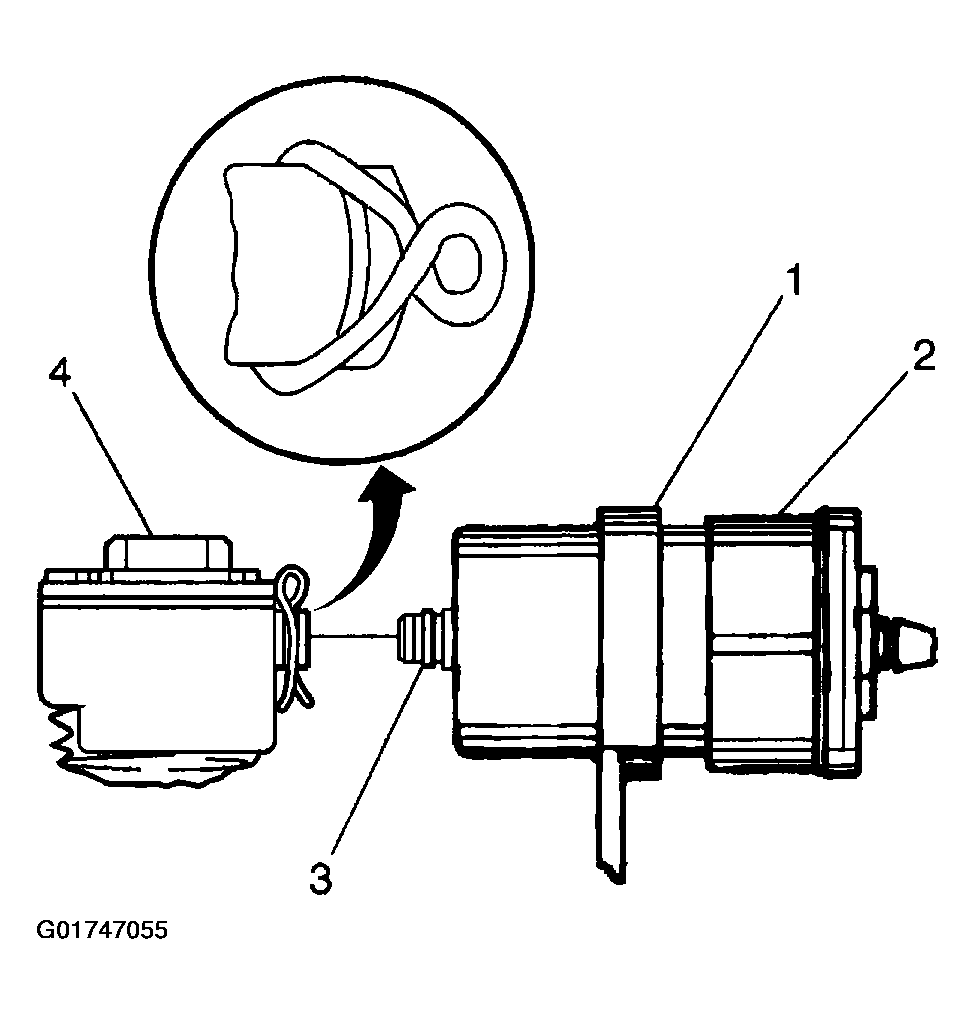

    Fig 1: Installing Air Dryer To Bracket & Automatic Level Control Air Compressor Head
    G01747055Courtesy of GENERAL MOTORS CORP.
