Removal Procedure

  1. Remove the inflator fill valve access cover.
  2. Remove the lower rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  3. Remove the switch from the inflator control panel.
  4. Disconnect the electrical connector from the inflator switch.

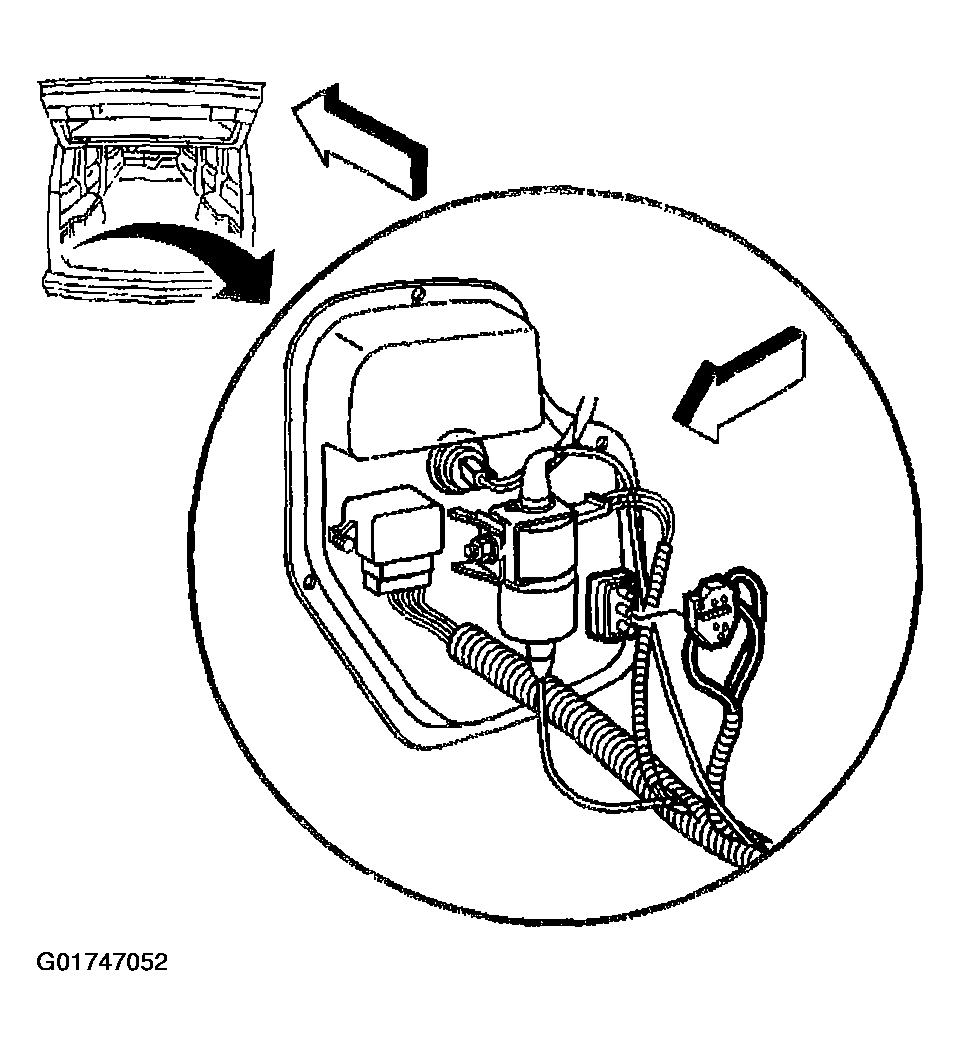

    Fig 1: Removing Automatic Level Control Inflator Air Switch & Disconnecting Electrical Connector
    G01747052Courtesy of GENERAL MOTORS CORP.
