Installation Procedure

  1. Install the automatic level control sensor with the bracket (2) to the vehicle.
  2. Install the height sensor bracket bolts/screws.

    Tighten

    Tighten the height sensor bracket bolts/screws to 10 N.m (89 lb in).

  3. Install the automatic level control sensor link to the tie rod ball stud.
  4. Install the automatic level control sensor Electrical connector.
  5. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

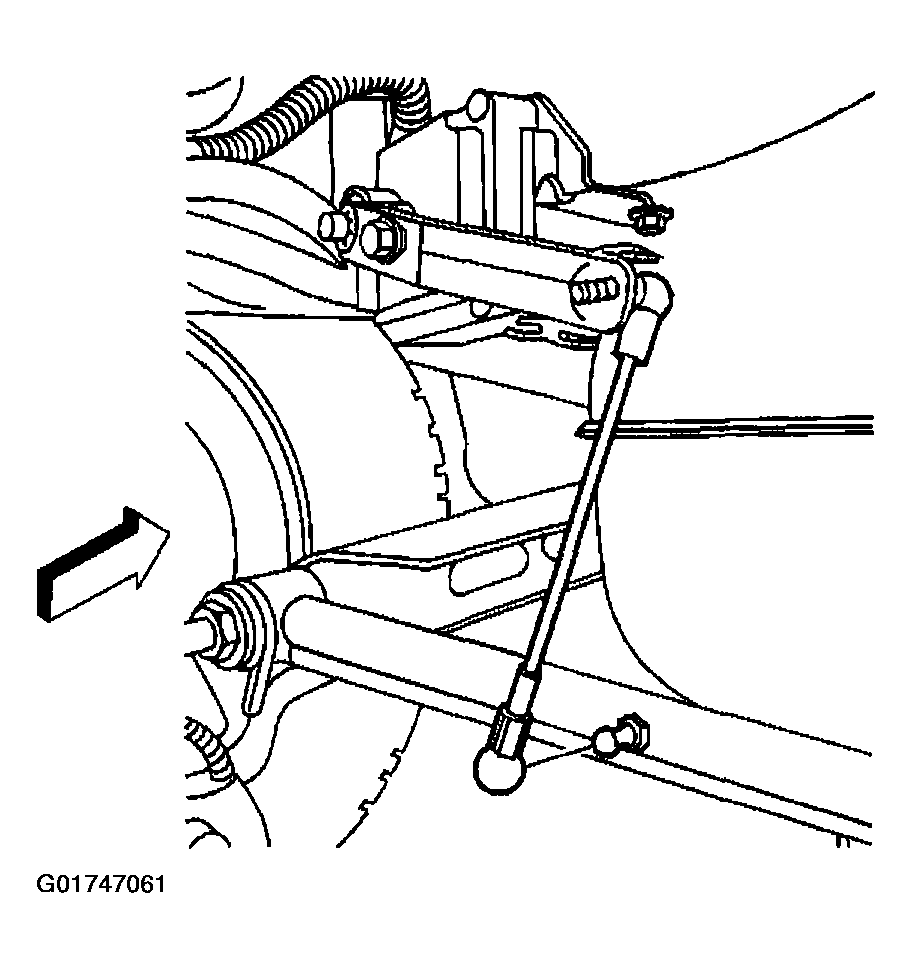

    Fig 1: Installing Automatic Level Control Sensor Link To Tie Rod Ball Stud
    G01747061Courtesy of GENERAL MOTORS CORP.
