Installation Procedure

  1. Install the inflator solenoid.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the inflator solenoid nut.

    Tighten

    Tighten the inflator solenoid nut to 3 N.m (27 lb in).

  3. Install the inflator solenoid fill valve washer and nut.

    Tighten

    Tighten the inflator solenoid fill valve nut to 3 N.m (27 lb in).

  4. Install the inflator solenoid fill valve cap.

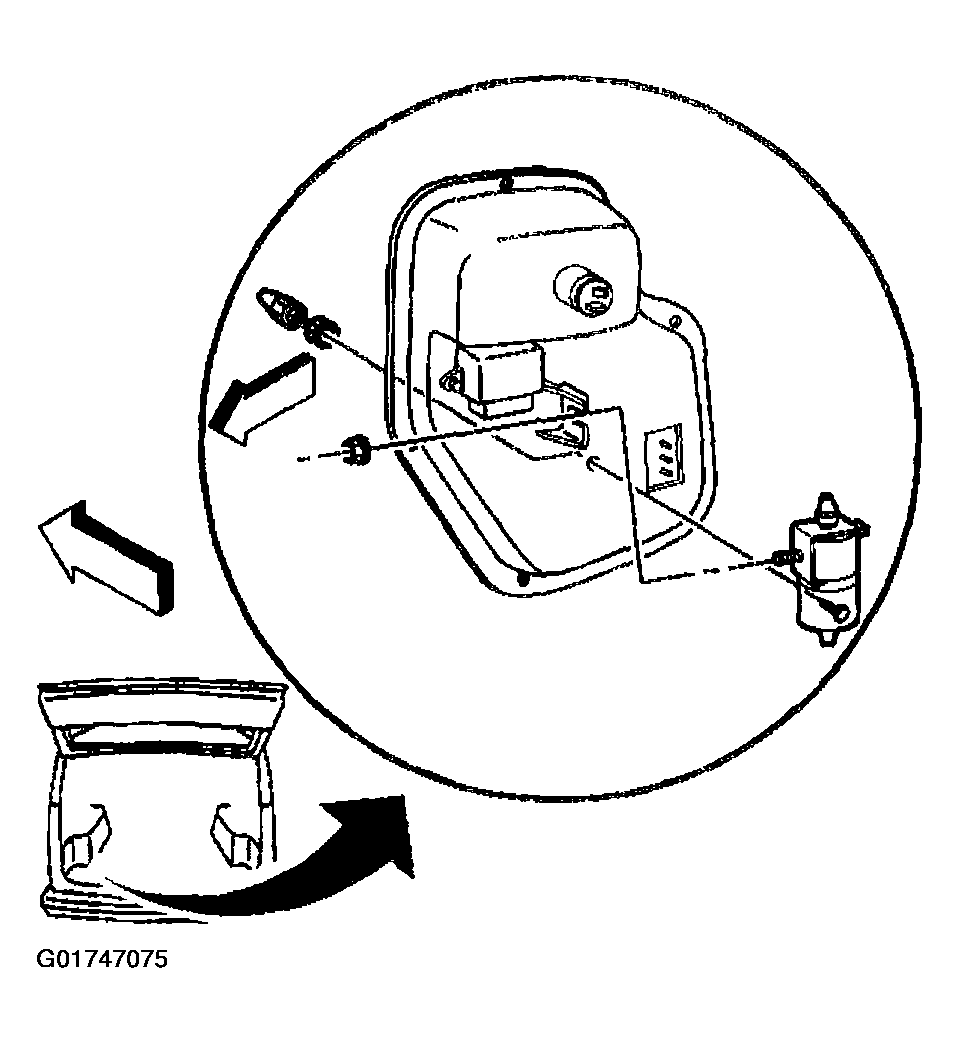

    Fig 1: Installing Inflator Solenoid, Nut, Washer & Cap
    G01747075Courtesy of GENERAL MOTORS CORP.
  5. Connect the air tubes to the inflator solenoid.
  6. Connect the inflator solenoid electrical connector.
  7. Install the inflator control panel.
  8. Install the inflator fill valve access cover.

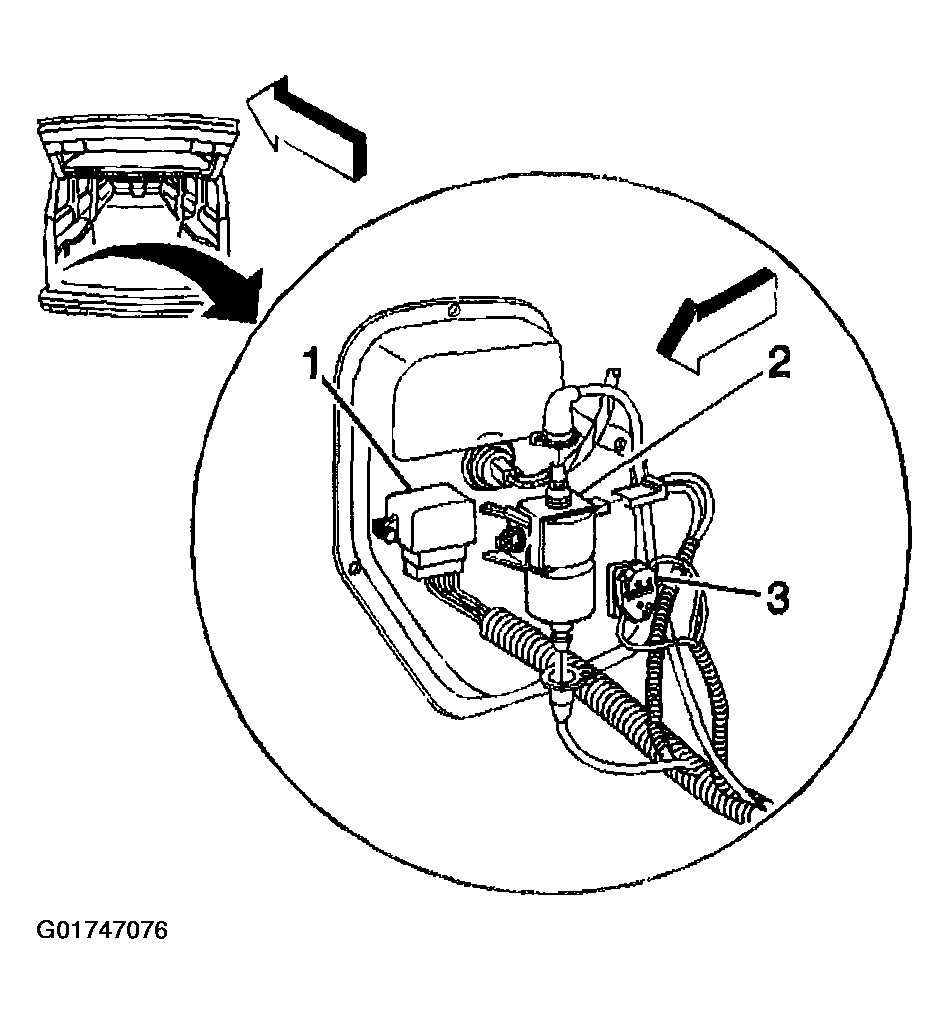

    Fig 2: Connecting Inflator Solenoid Electrical Connector & Air Tubes
    G01747076Courtesy of GENERAL MOTORS CORP.
