Blazer, Jimmy, SONOMA & S10 Pickup

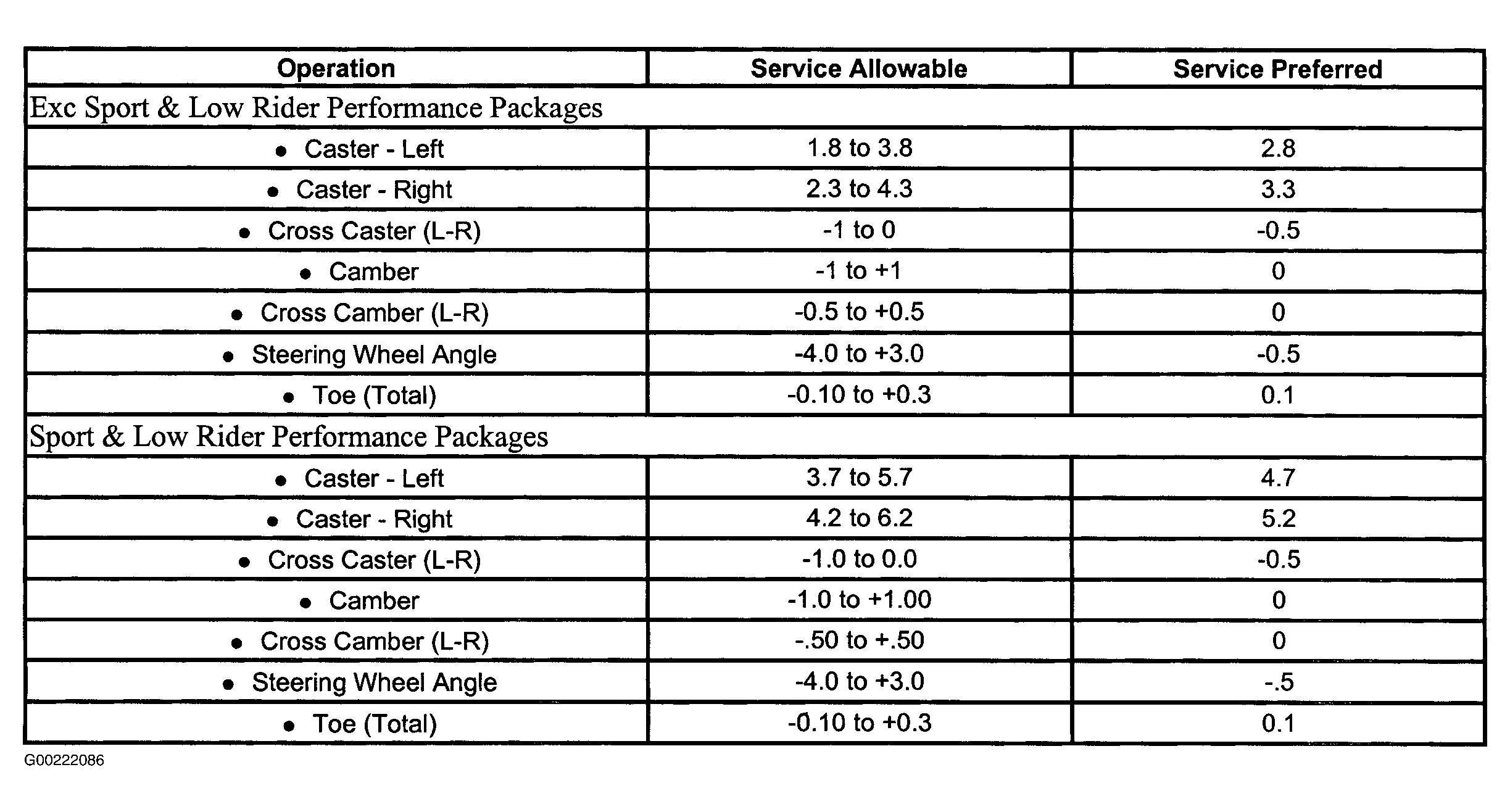

Fig 1: Wheel Alignment Specifications (Blazer, Jimmy, Sonoma & S10 Pickup)
G00222086Courtesy of GENERAL MOTORS CORP.
