General Specifications

Transfer Case General Specifications

Application	Specification
Application	Metric	English
Differential Bearing Preload	0.1-0.15 mm	0.004-0.006 in
Differential Carrier Rotating Torque	1.5 N.m	13 lb in
Drive and Driven Shafts Gears Backlash	0.2-0.3 mm	0.0078-0.0118 in
Drivenshaft Rotating Torque	1.5 N.m	13 lb in
Driveshaft Bearing Preload	0.15 mm	0.006 in
Driveshaft Rotating Torque	1.5 N.m	13 lb in
Extension Housing Gear Oil Fill Quantity	290 ml	9.80 oz
Gear Ratio Front-to-Rear	1.013:1
Idler Gear Bearing Preload	1.02-1.78 mm	0.004-0.007 in

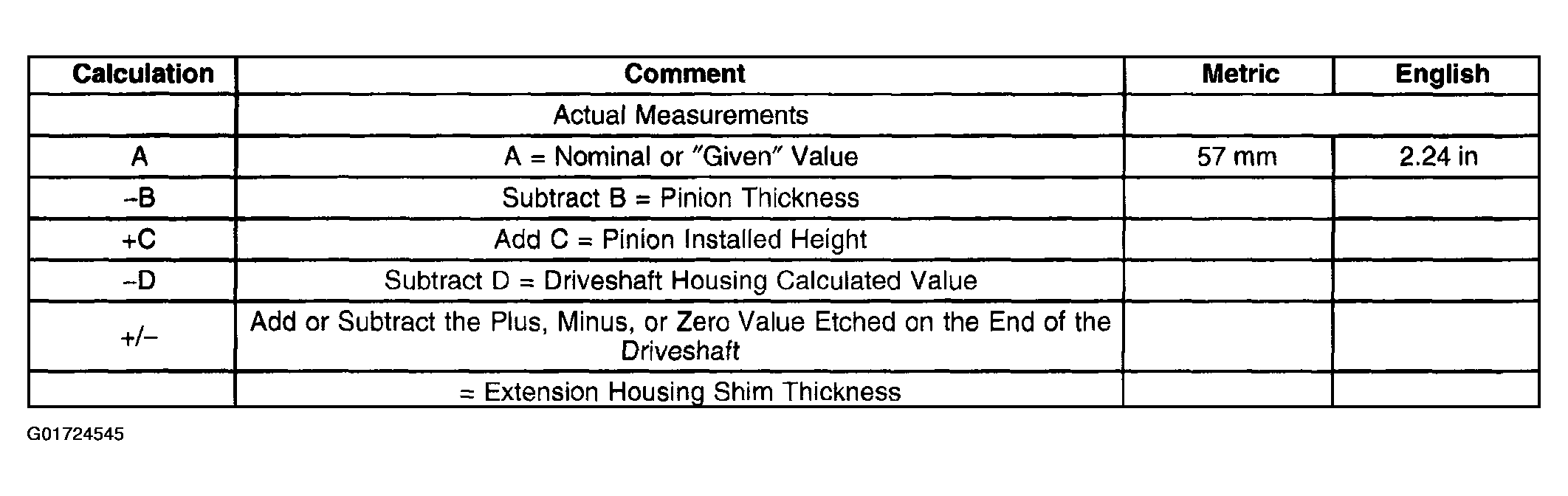

Fig 1: Extension Housing Shim Calculation Table - Procedure A

Courtesy of GENERAL MOTORS CORP.

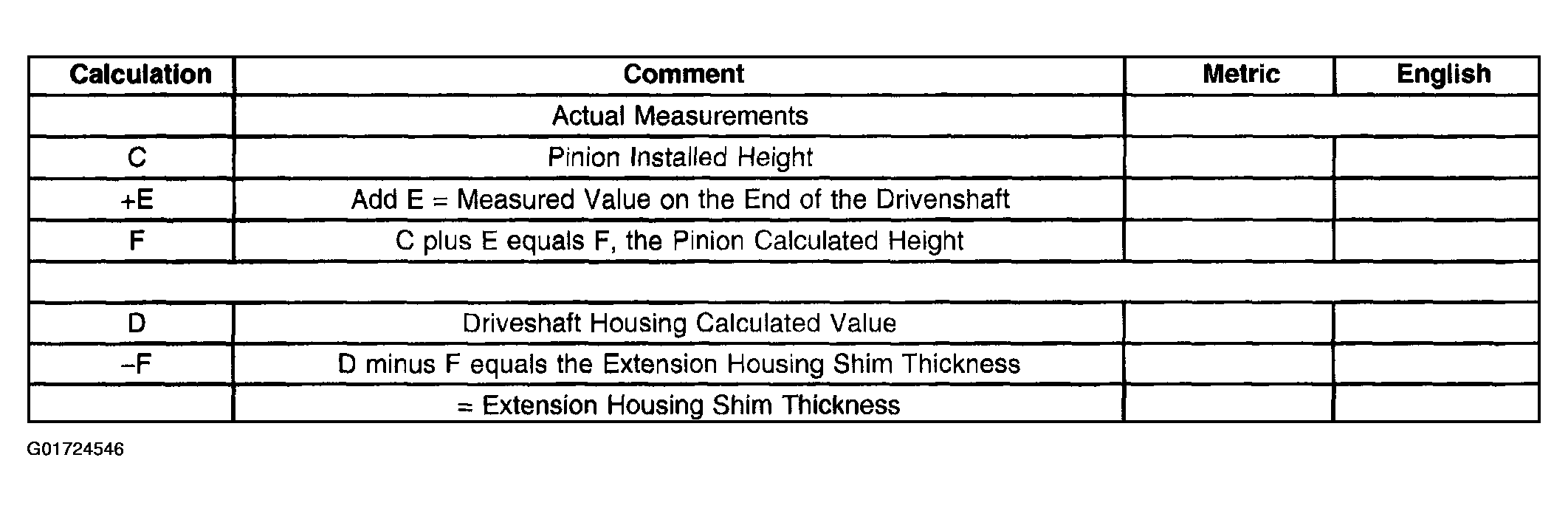

Fig 2: Extension Housing Shim Calculation Table - Procedure B

Courtesy of GENERAL MOTORS CORP.
