Pressure Sensor Connector End View

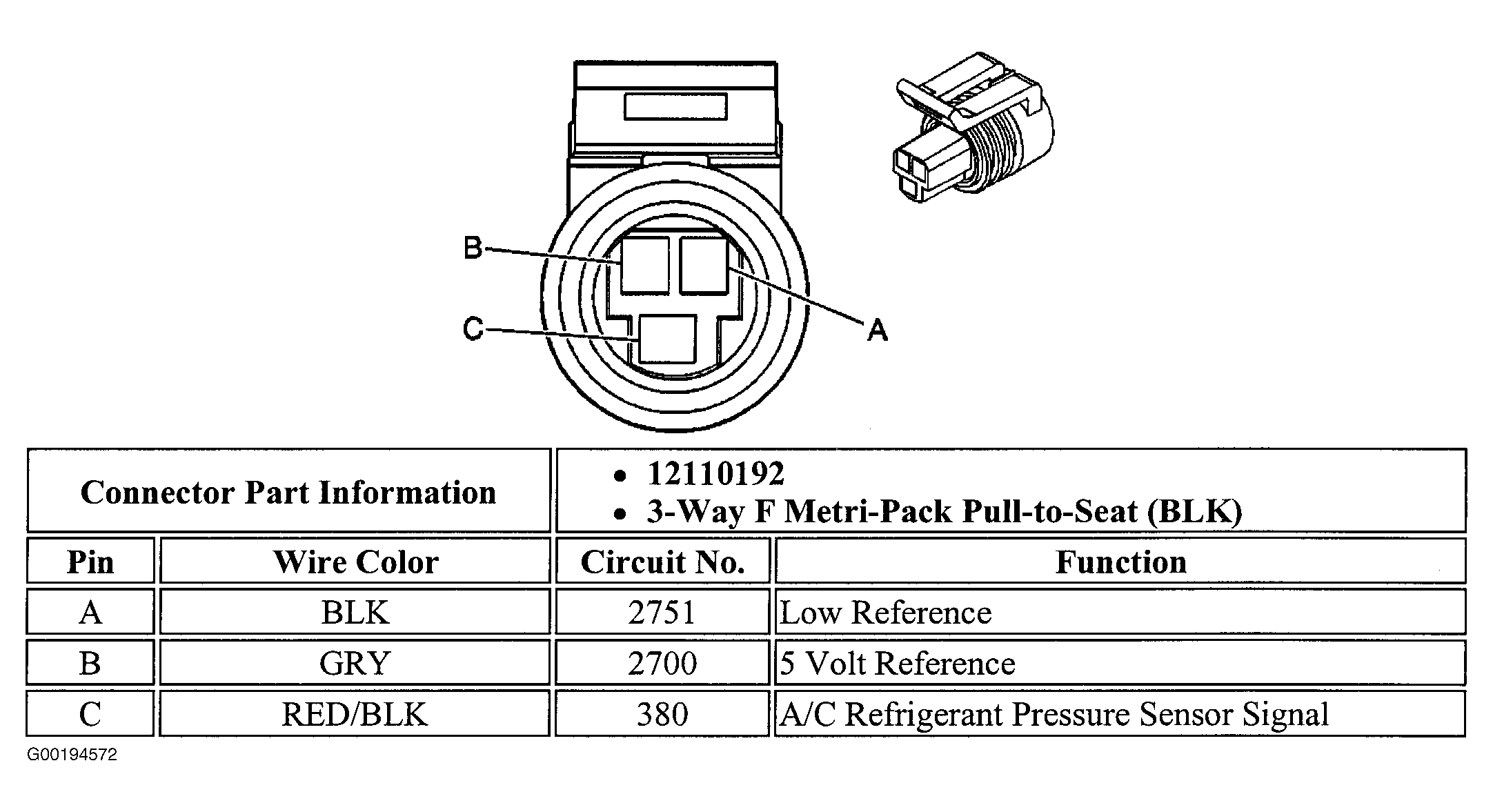

Fig 1: Pressure Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: Pressure Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.Courtesy of GENERAL MOTORS CORP.
