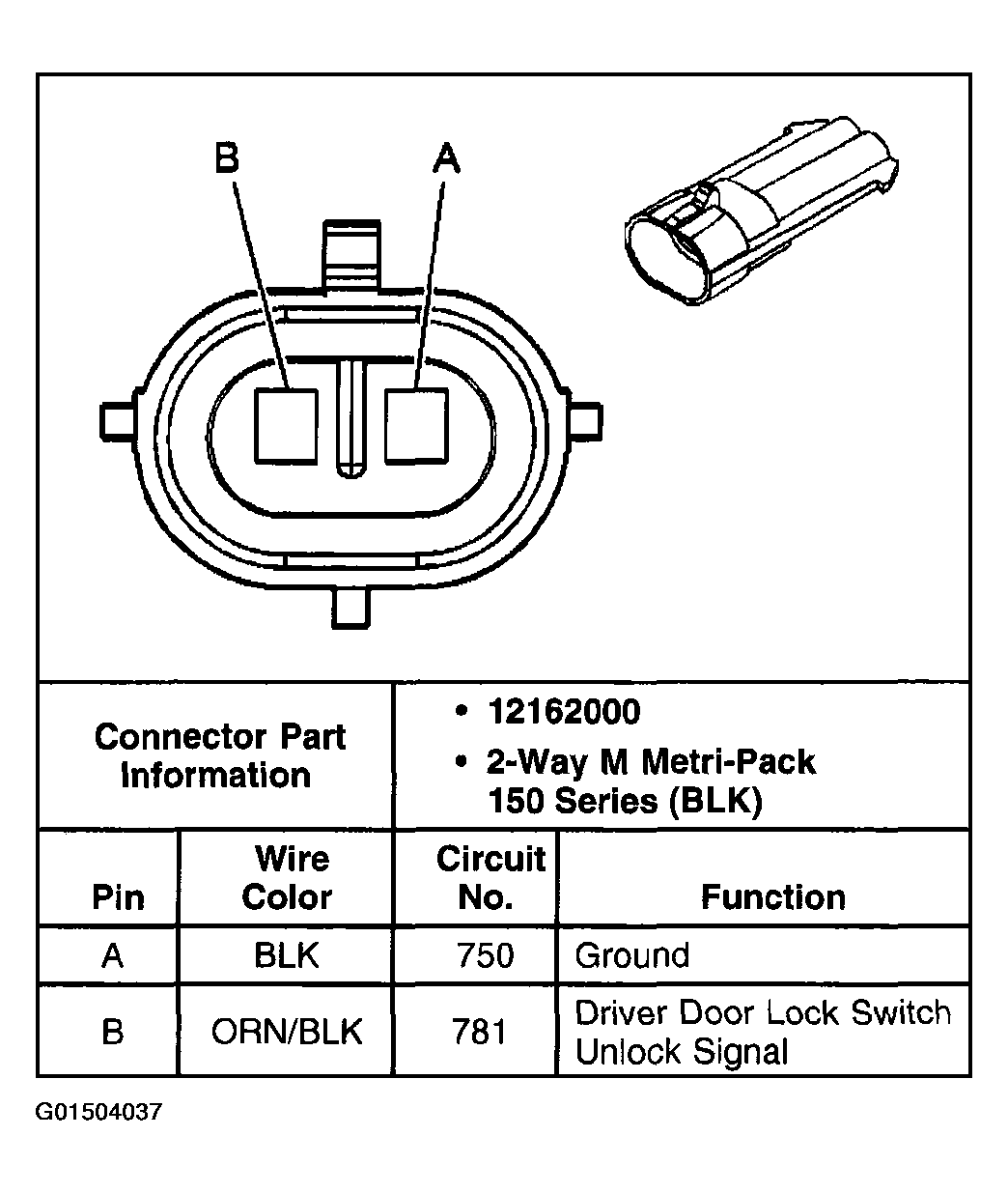

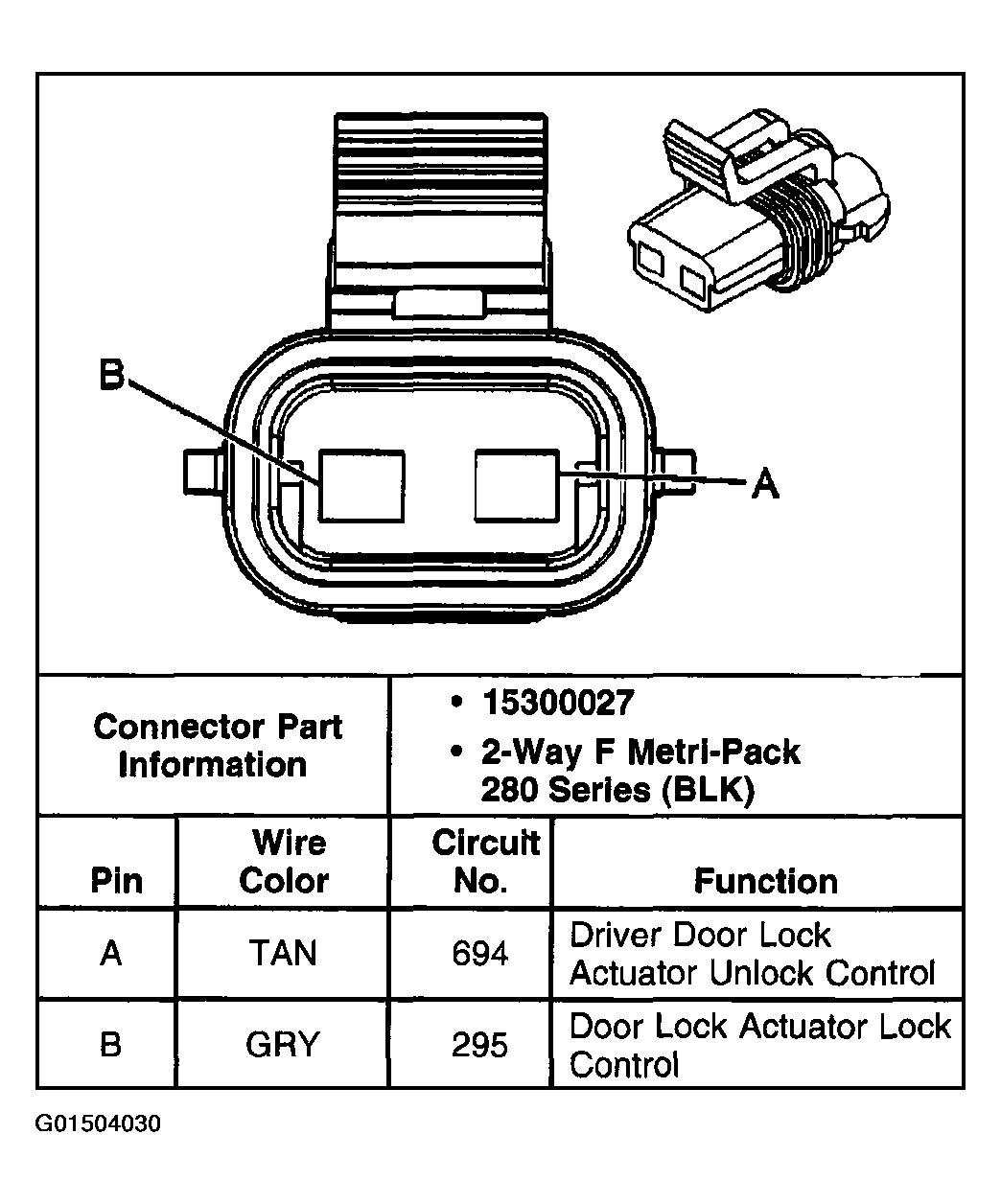

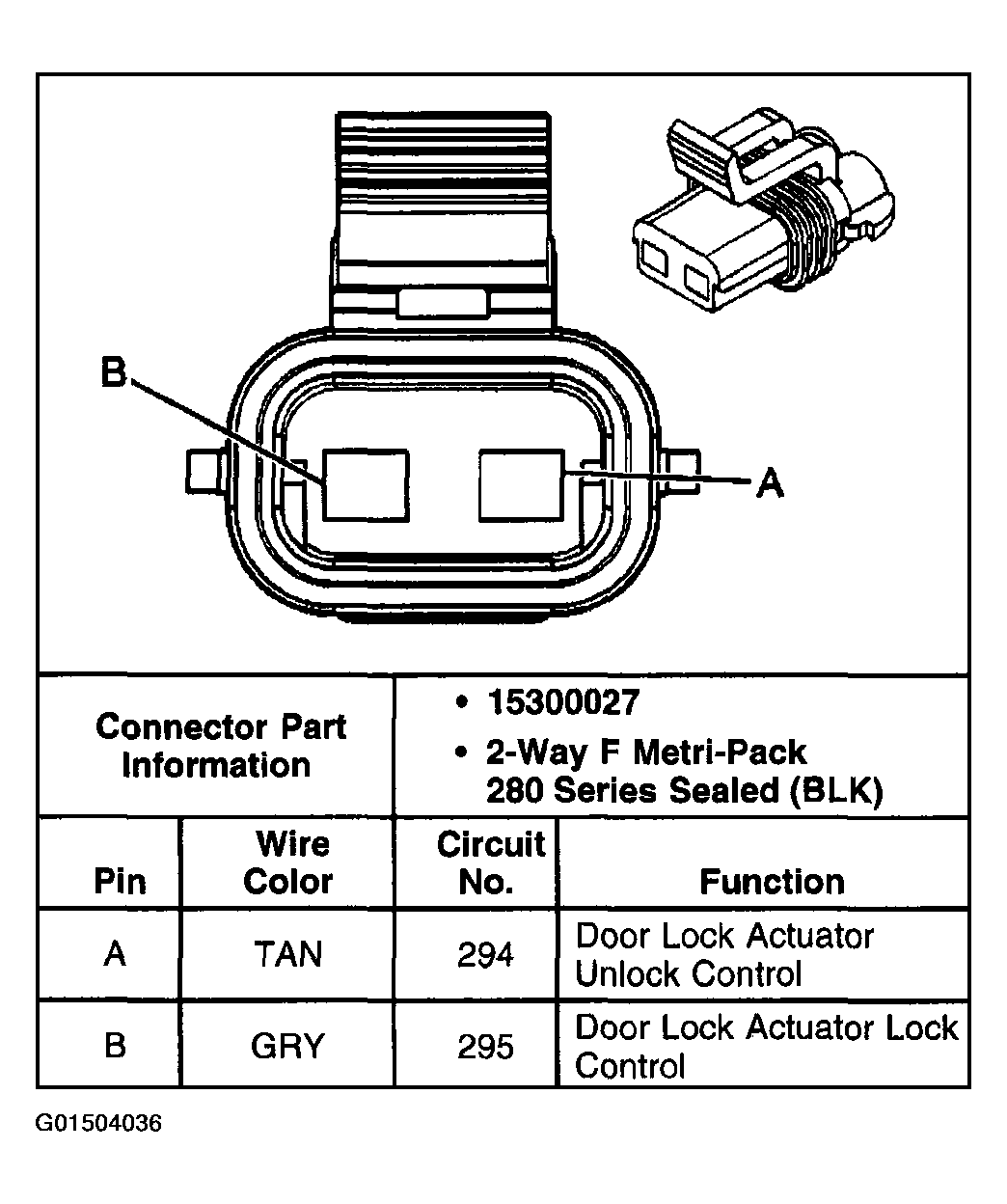

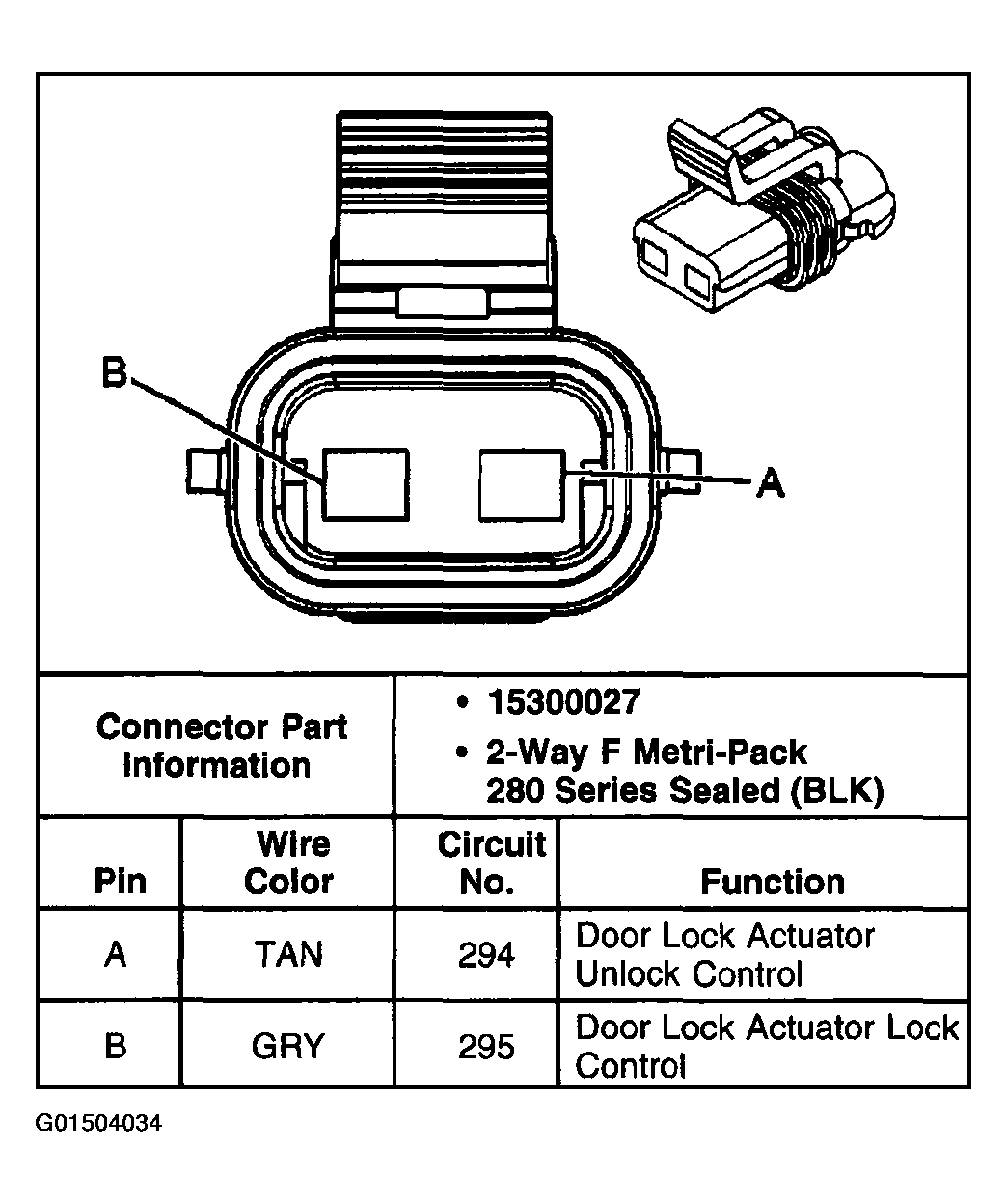

Fig 1: Door Lock - Driver, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Door Lock - Driver, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Door Lock - Front Passenger, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 4: Door Lock - Front Passenger, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Door Lock - LR, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Door Lock - LR, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Door Lock - RR, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Door Lock - RR, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

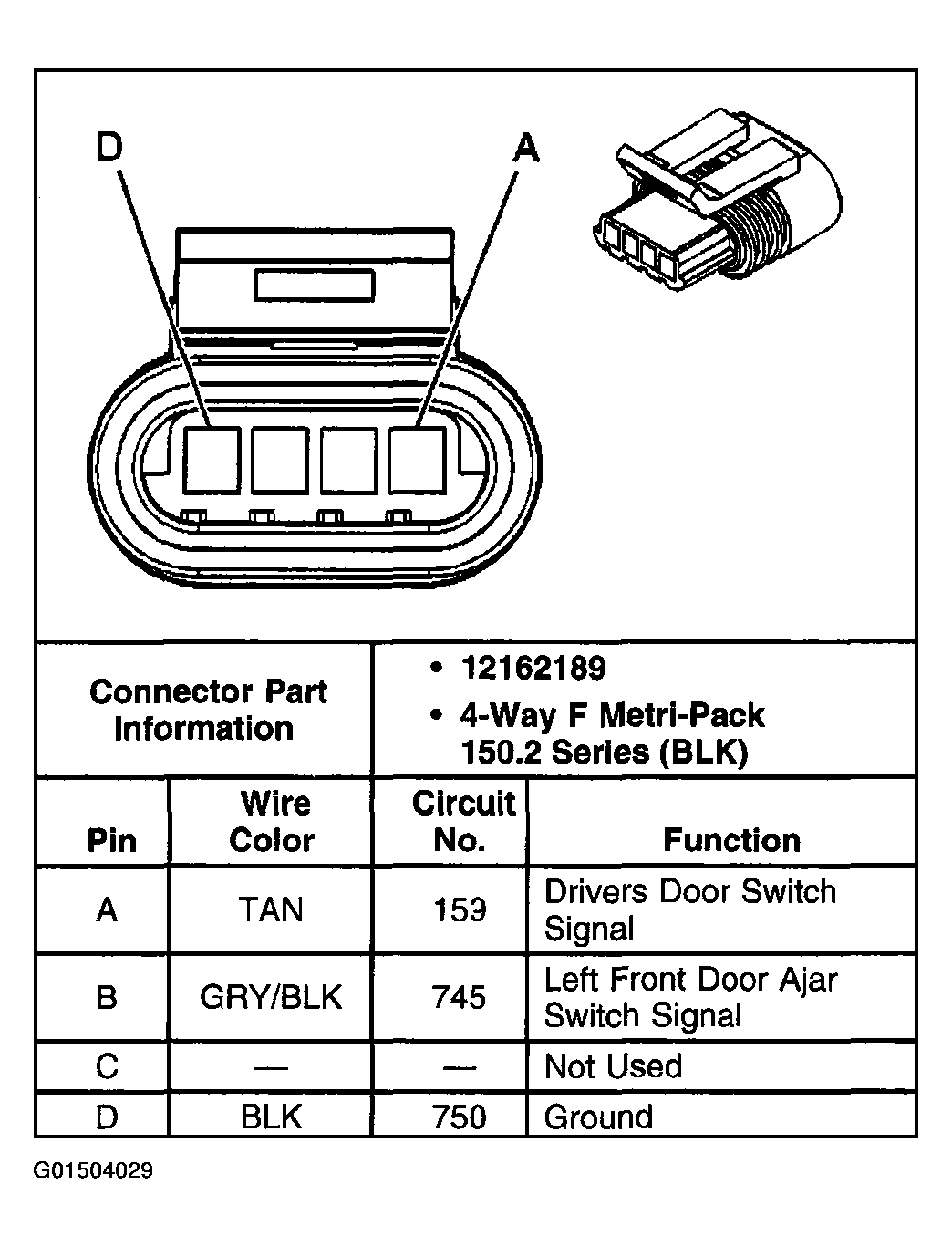

Fig 9: Door Lock Cylinder Switch - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

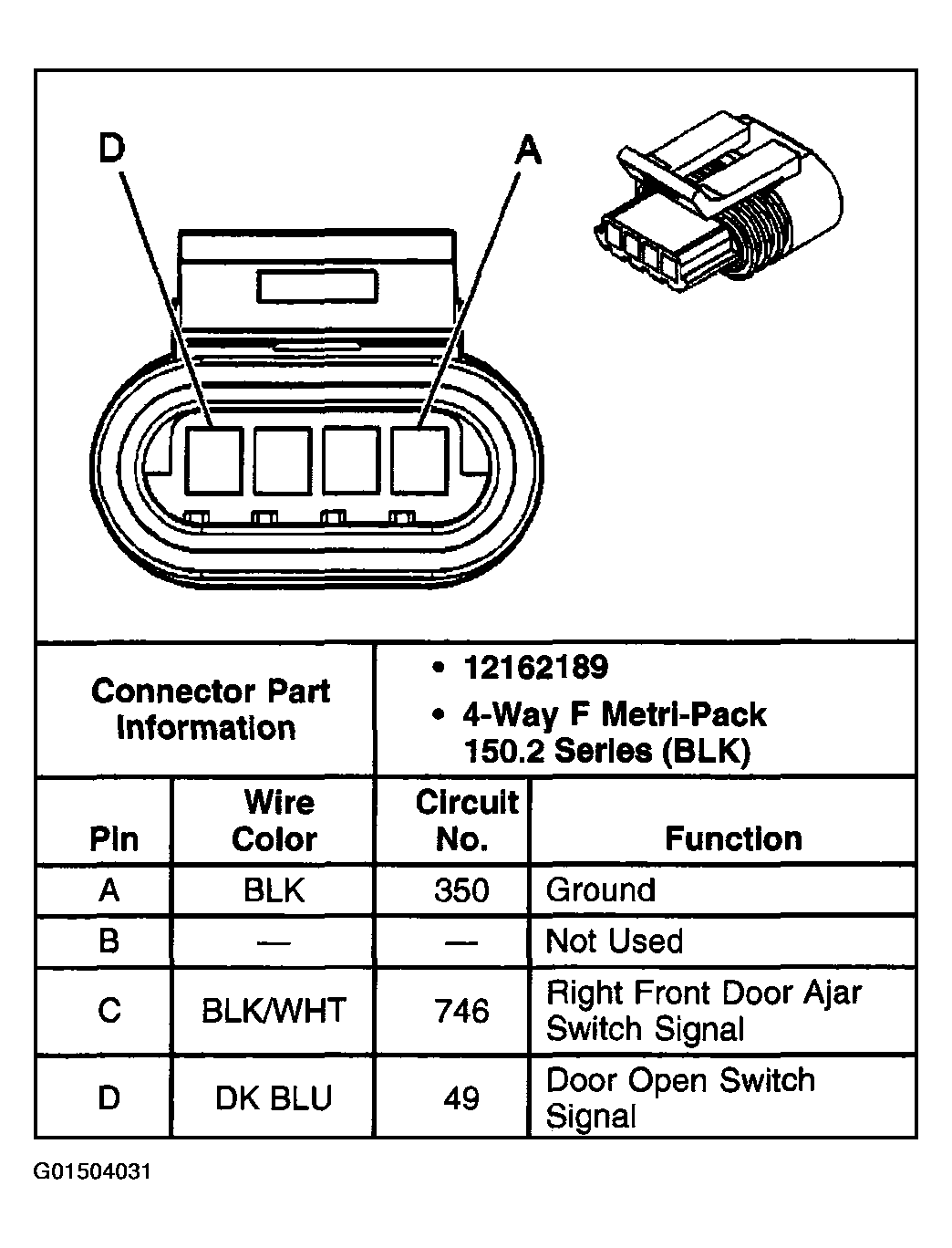

Fig 10: Door Lock Cylinder Switch - Front Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.

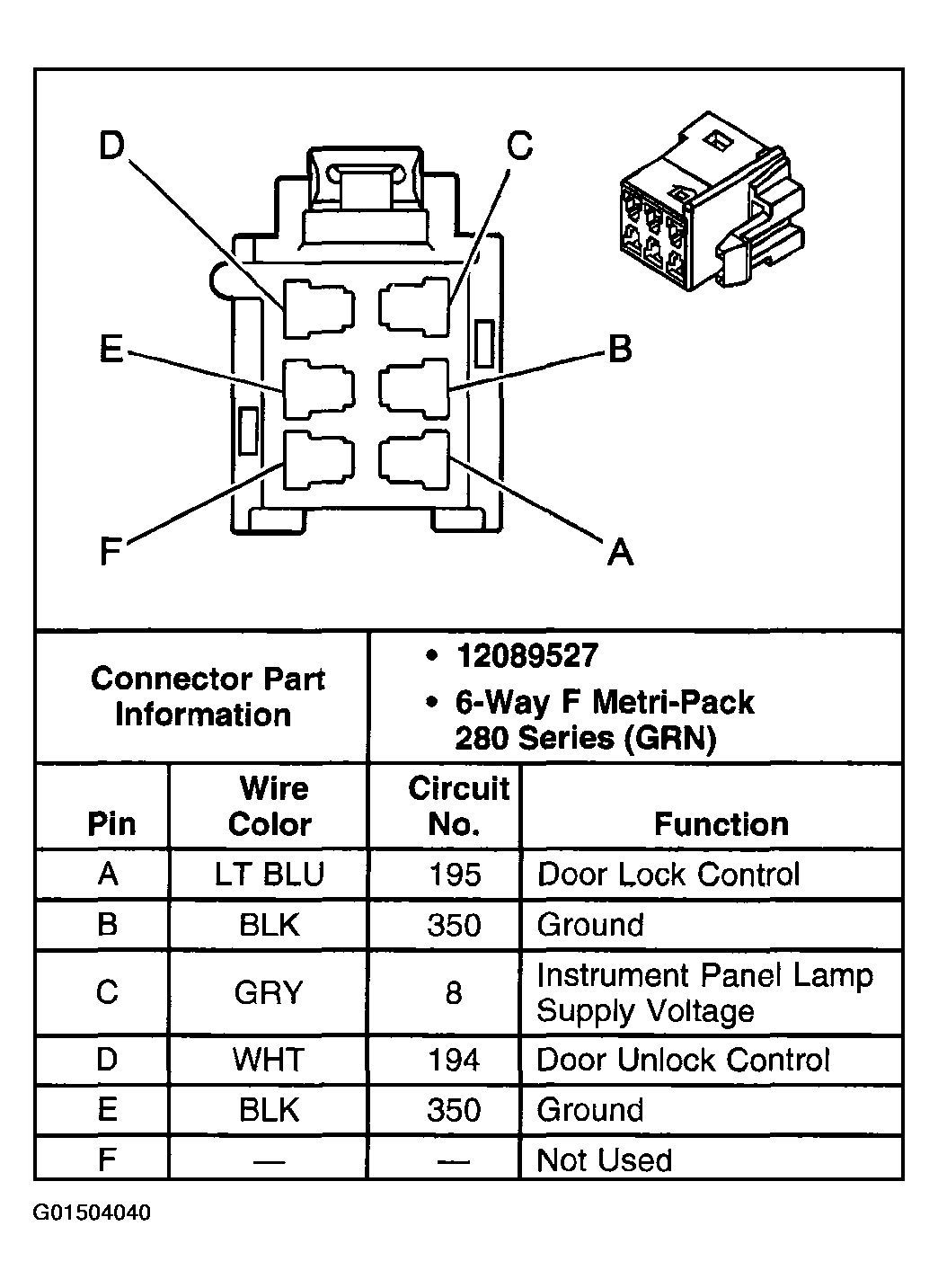

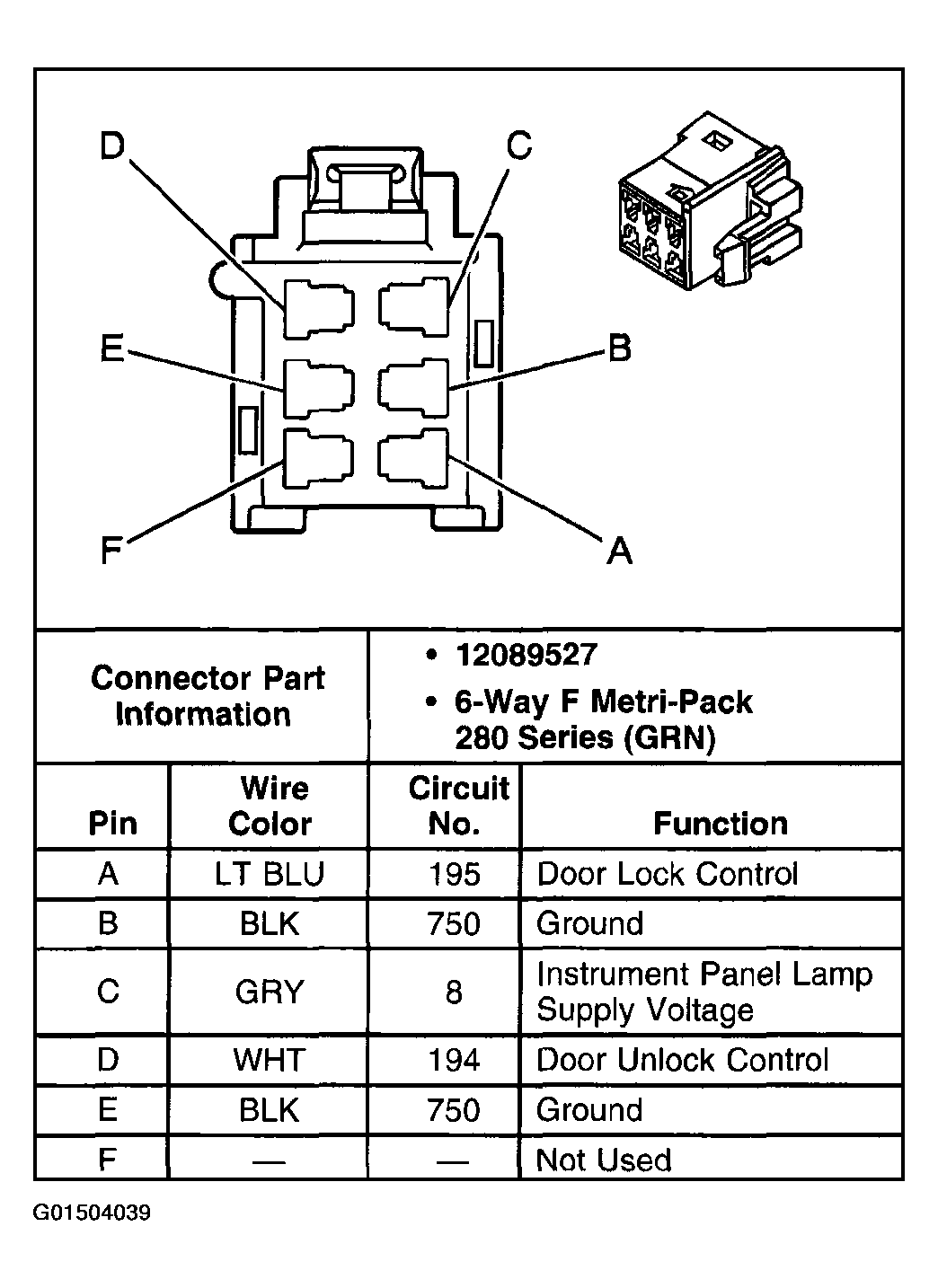

Fig 11: Door Lock Switch - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 12: Door Lock Switch - Front Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.

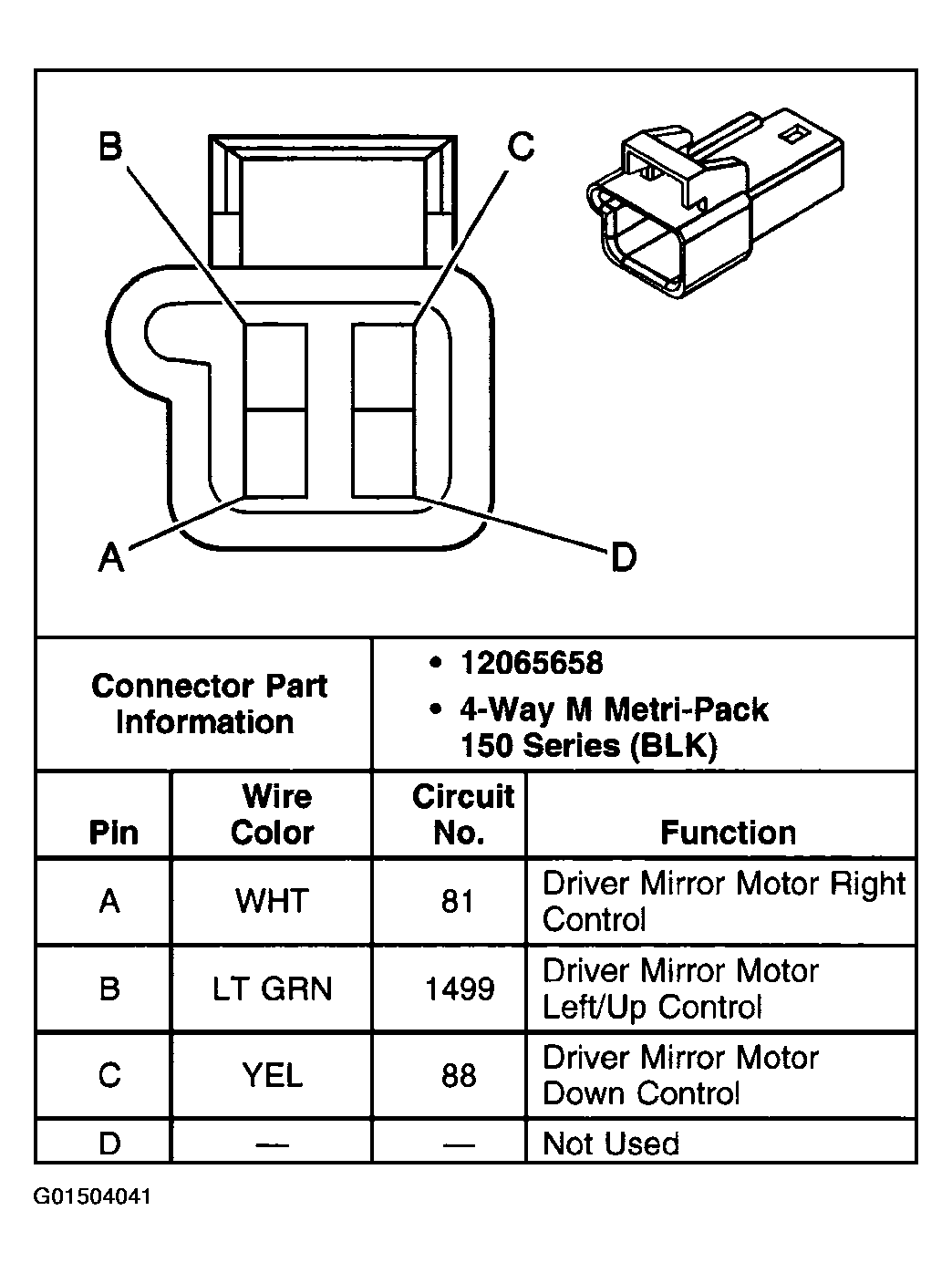

Fig 13: Outside Rearview Mirror - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

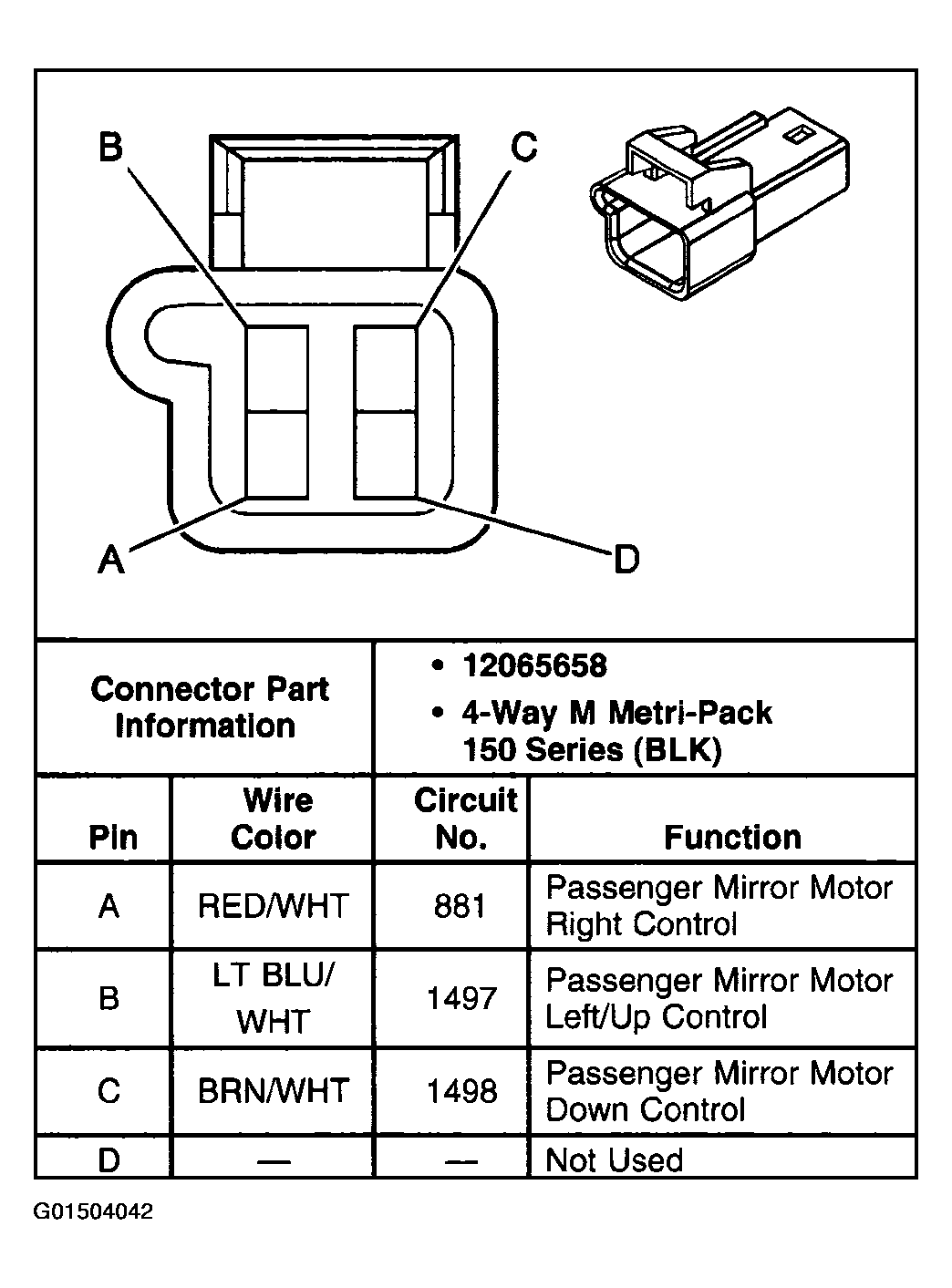

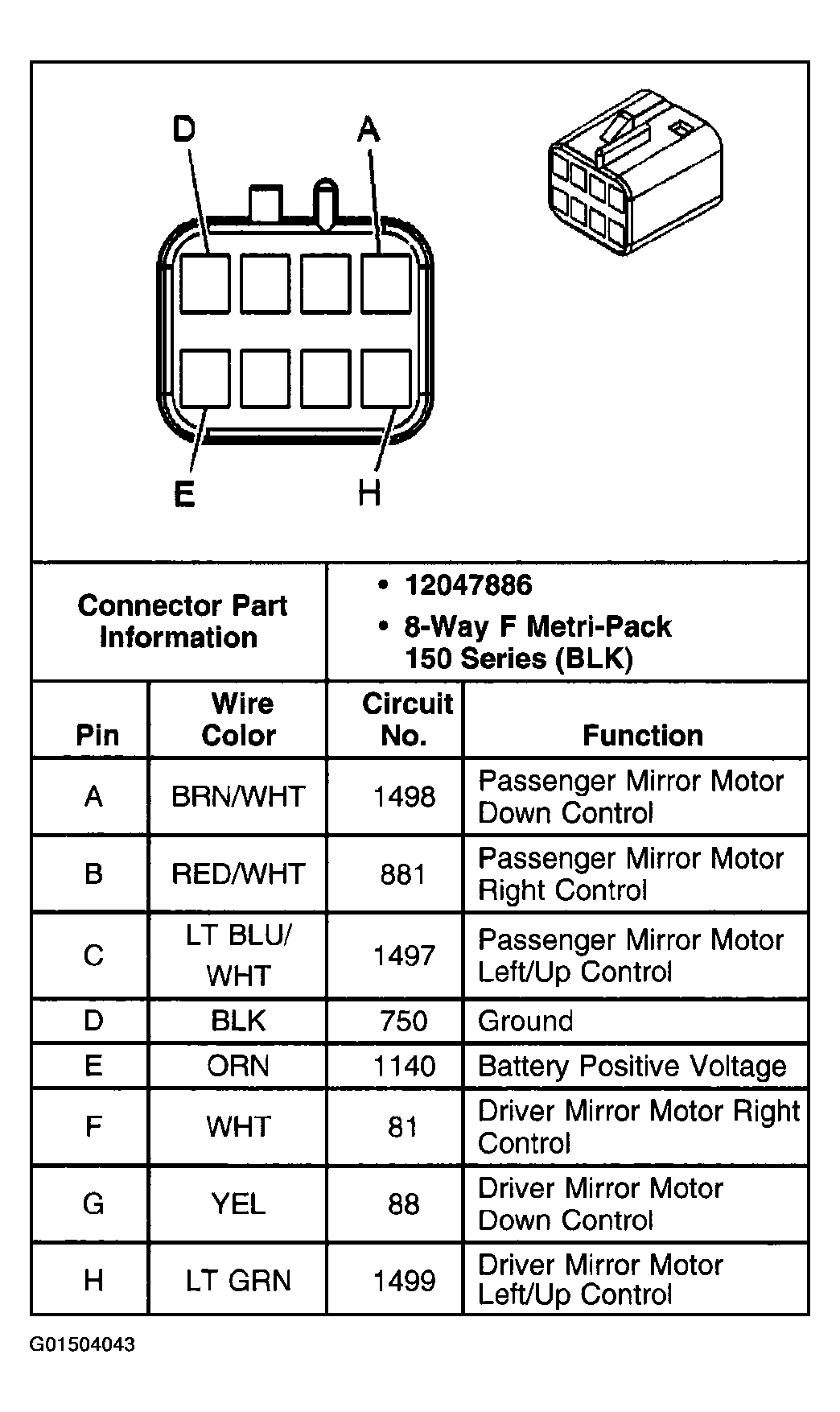

Fig 14: Outside Rearview Mirror - Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 15: Outside Rearview Mirror Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

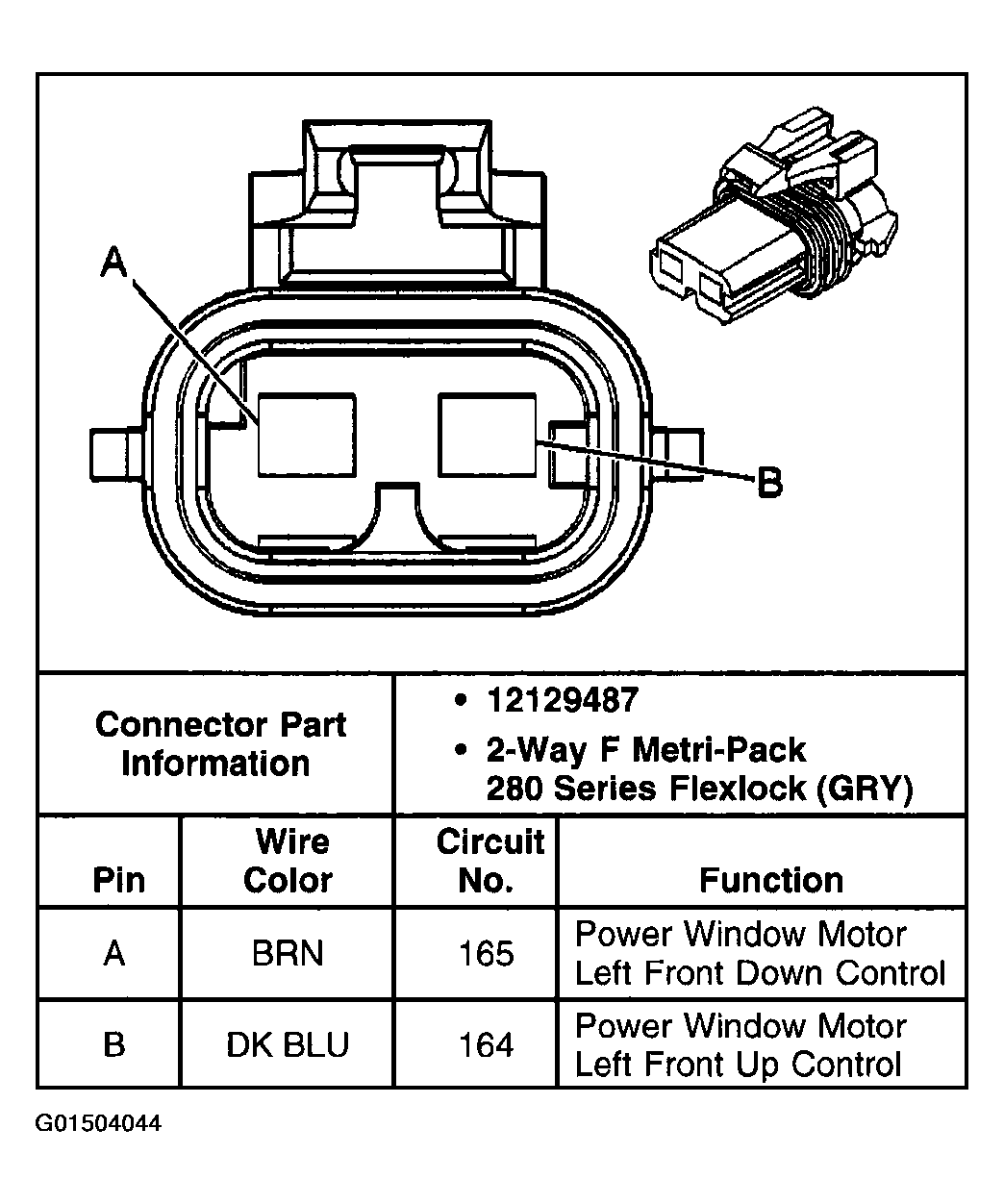

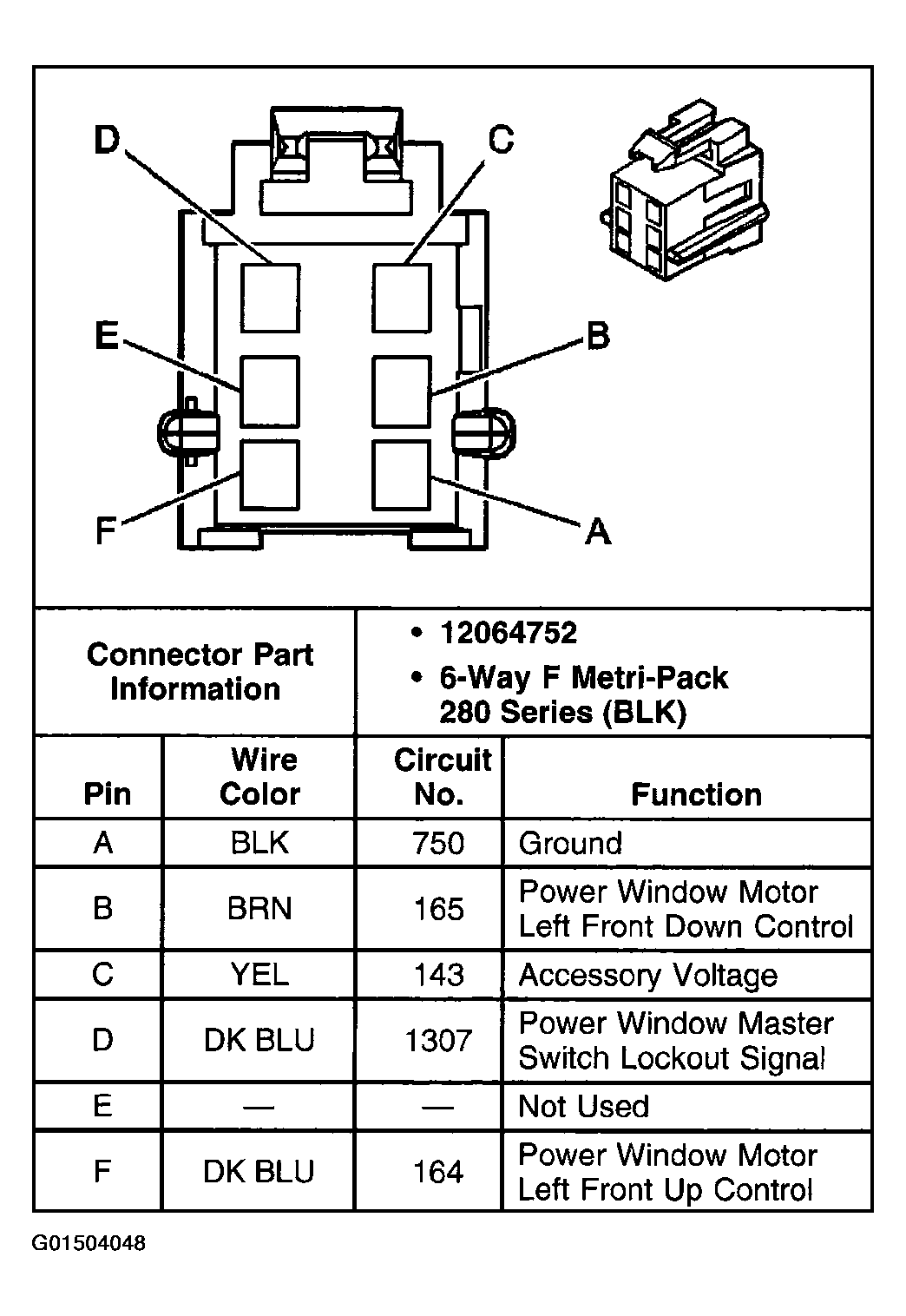

Fig 16: Window Motor - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

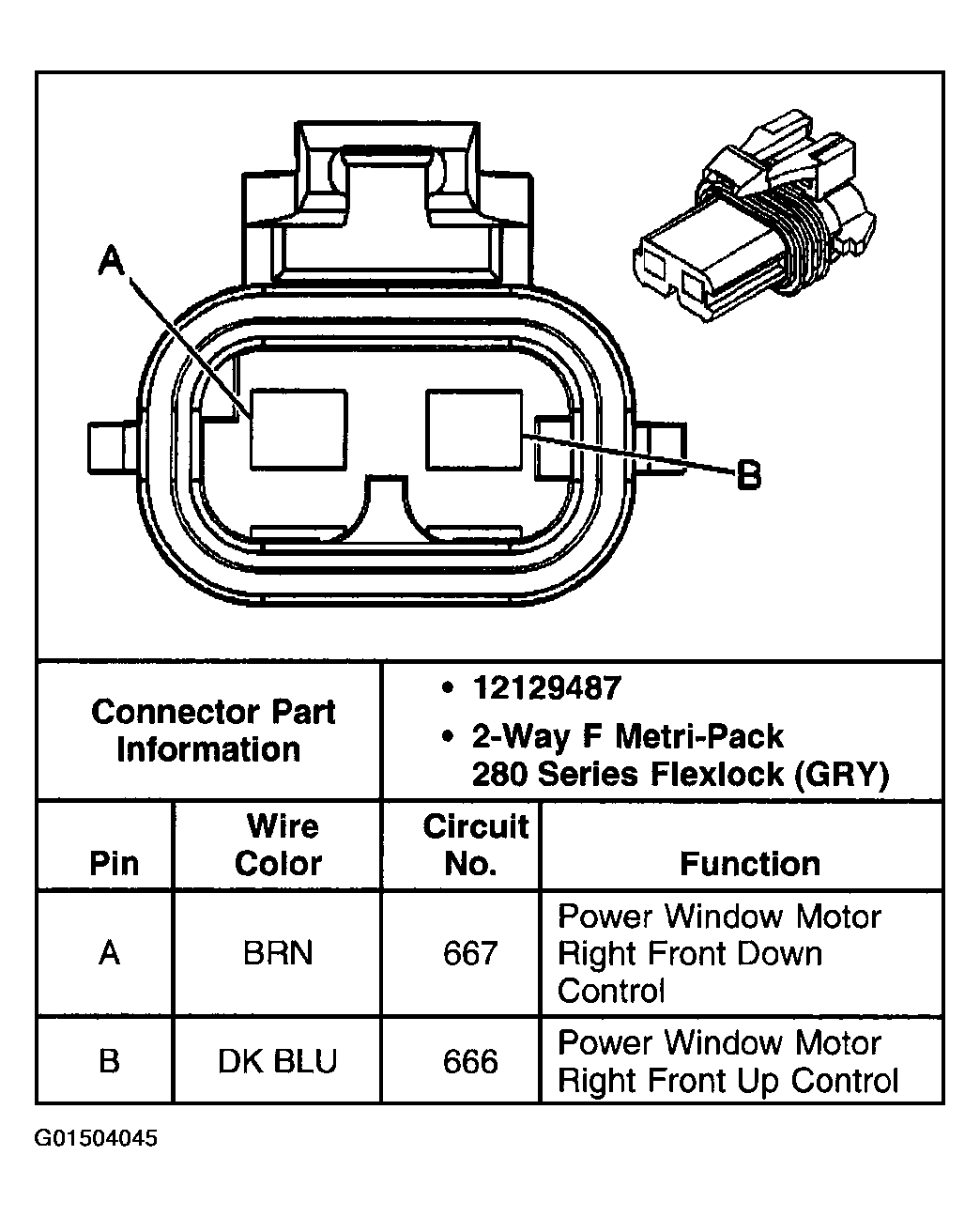

Fig 17: Window Motor - Front Passenger Connector End View
