Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

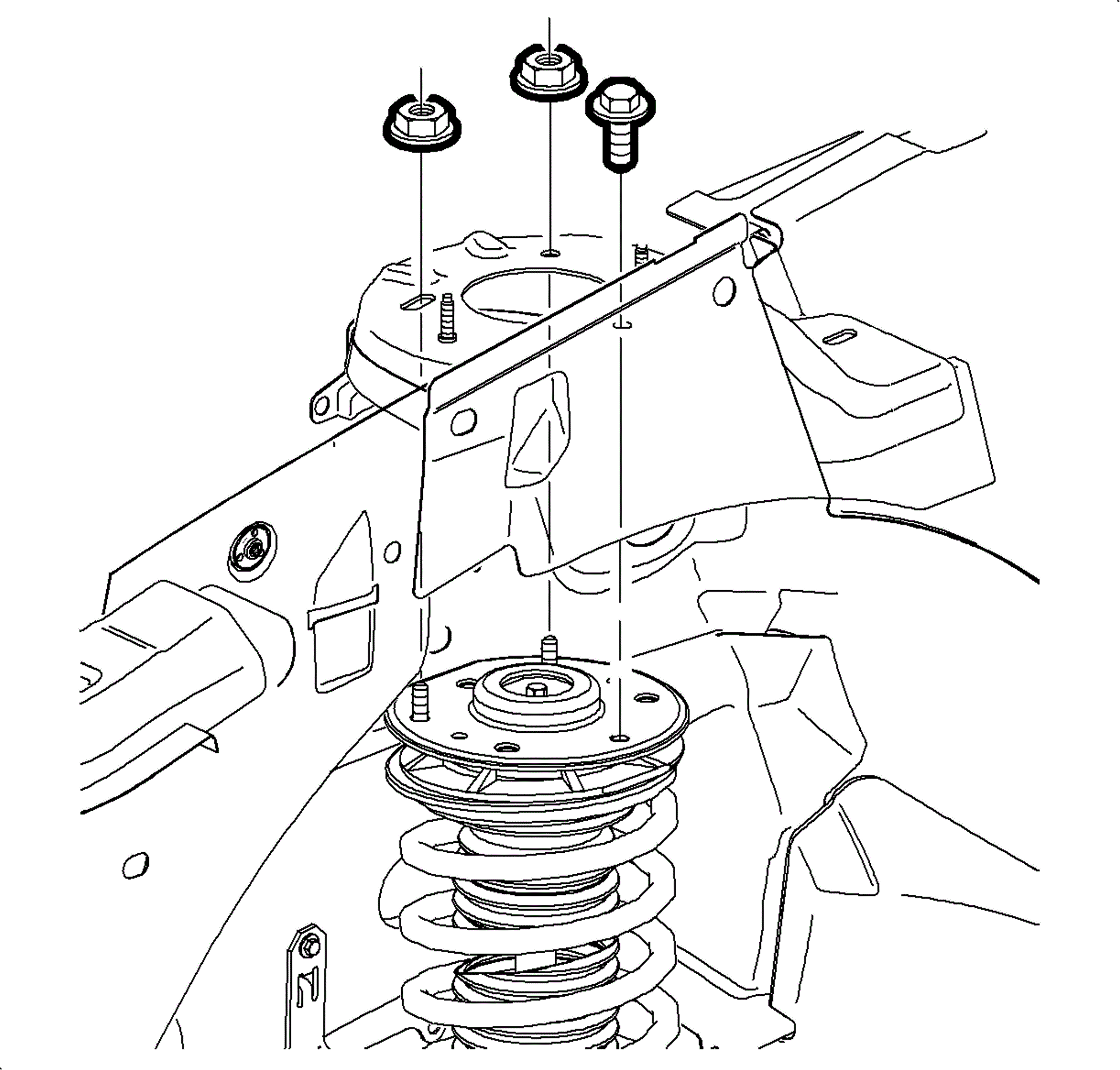

Fig 1: Strut Assembly & Body Fasteners

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the Strut assembly to the vehicle.
Tighten:
- Tighten the strut to body nuts to 25 N.m (18 lb ft).
- Tighten the strut to body bolt to 25 N.m (18 lb ft).

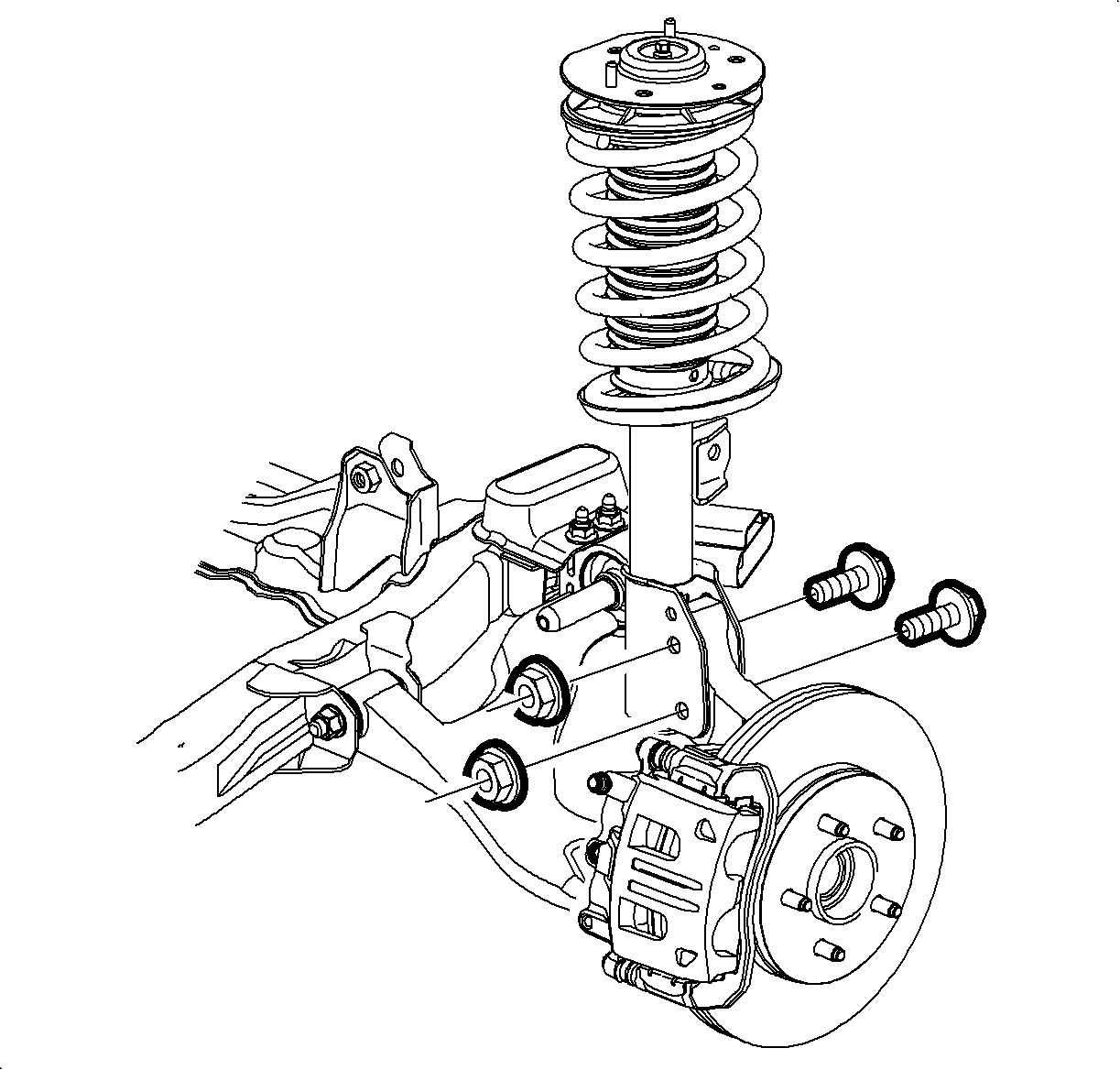

Fig 2: Steering Knuckle, Strut Bolts & Nuts

Courtesy of GENERAL MOTORS CORP.

Attach the strut to the steering knuckle using new bolts and nuts.
Tighten: Tighten the bolts and nuts to 180 N.m (133 lb ft).
Inspect the stabilizer link seals for damage and replace the link as necessary.

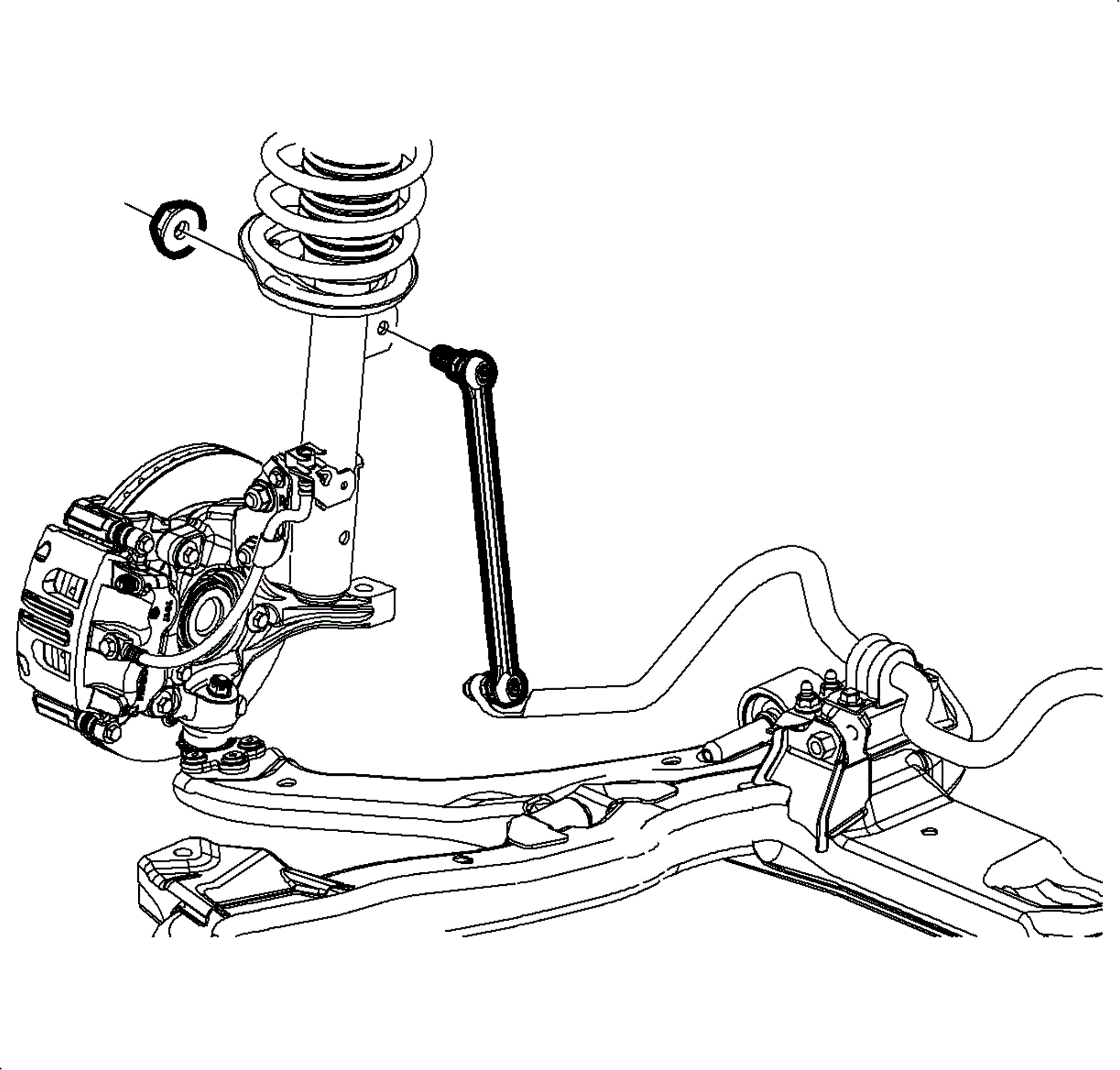

Fig 3: View Of Stabilizer Link & Strut Nut

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not allow the stabilizer link ball stud to rotate while installing the link nut.

Connect the stabilizer link to the strut.
Tighten: Tighten the nut to 65 N.m (48 lb ft).

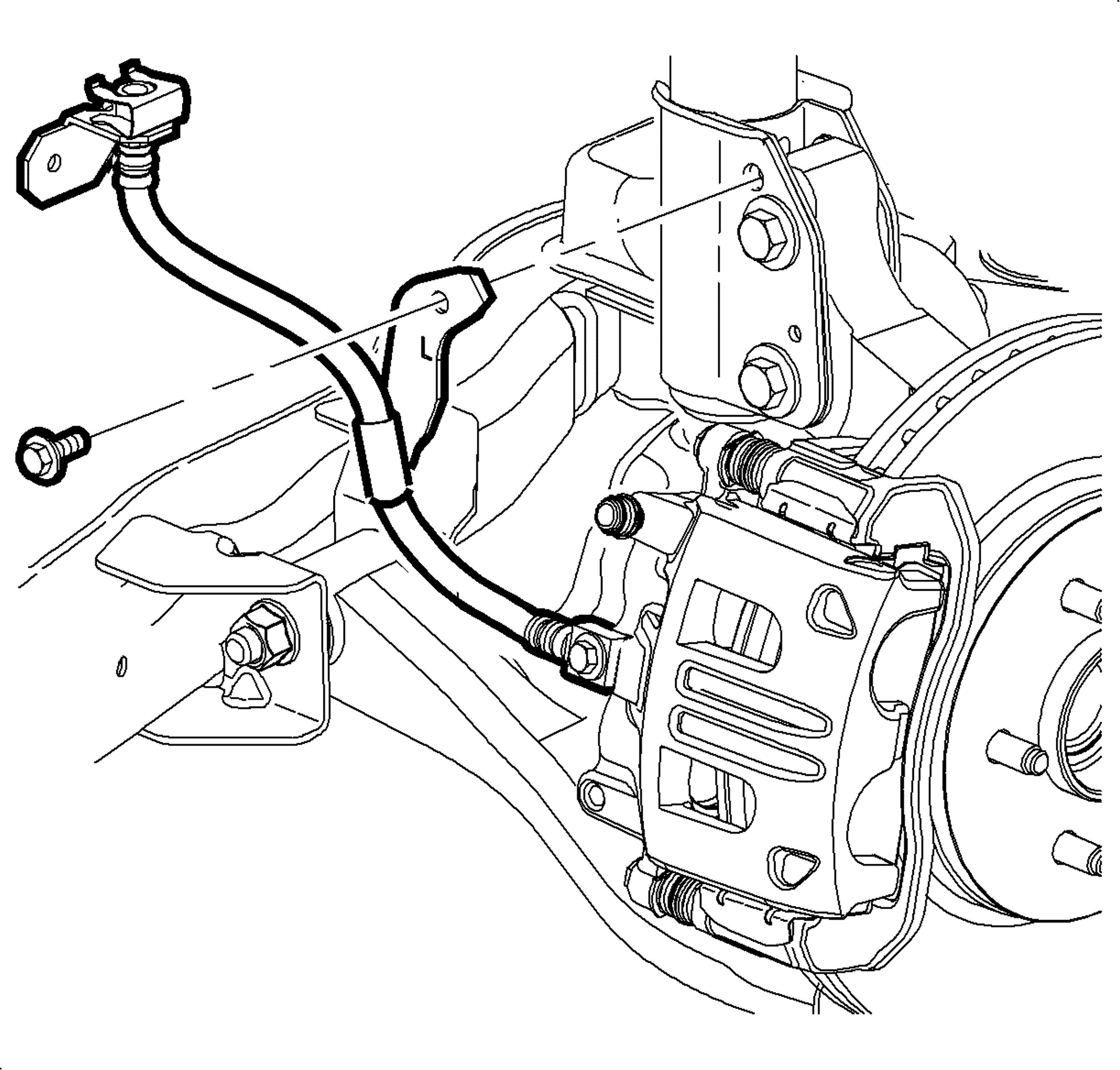

Fig 4: Brake Hose Bracket & Strut Assembly

Courtesy of GENERAL MOTORS CORP.

Install the brake hose bracket to the strut assembly.
Tighten: Tighten the brake bracket bolt to 15 N.m (11 lb ft).
Install the wheel and tire. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
Perform a wheel alignment. Refer to Measuring Wheel Alignment in Wheel Alignment.
