Electronic Brake Control Module (EBCM)
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Electronic Brake Control Module (EBCM) Connector Parts Information
Connector Part Information
|

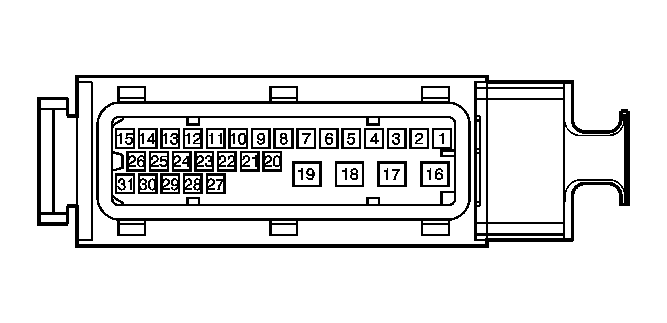

Electronic Brake Control Module (EBCM) Connector Terminal Identification
| Pin | Wire Color | Circuit Number | Function |
|---|---|---|---|
| 1 | BN | 882 | RR WSS Signal |
| 2 | - | - | Not Used |
| 3 | WH | 883 | RR WSS Low Reference |
| 4 | D-GN | 872 | RF WSS Signal |
| 5 | TN | 833 | RF WSS Low Reference |
| 6 | YE | 873 | LF WSS Low Reference |
| 7 | L-BU | 830 | LF WSS Signal |
| 8 | BK | 884 | LR WSS Signal |
| 9 | RD | 885 | LR WSS Low Reference |
| 10 | - | - | Not Used |
| 11 | WH/BK | 5043 | Keyword Serial Data (Except LAT) |
| 12-14 | - | - | Not Used |
| 15 | PK | 1039 | Ignition 1 Voltage |
| 16 | BK | 350 | Ground |
| 17 | RD | 702 | Battery Positive Voltage |
| 18 | OG | 140 | Battery Positive Voltage |
| 19 | BK | 350 | Ground |
| 20-24 | - | - | Not Used |
| 25 | TN | 2501 | CAN Low |
| 26 | - | - | Not Used |
| 27 | TN/WH | 2500 | CAN High |
| 28 | - | - | Not Used |
| 29 | TN | 2501 | CAN Low |
| 30 | TN/WH | 2500 | CAN High |
| 31 | BN/WH | 1571 | Traction Control Switch Signal (NW9) (Except LAT) |
