Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the surface of the rear shelf in the (GPS) antenna mounting location, using an isopropyl alcohol pad and a clean lint-free cloth.

    Important:  Do not touch the adhesive backing.

  2. Remove the protective backing from the adhesive backing of the GPS antenna.
  3. Install the GPS antenna to the rear shelf surface.

    Press the GPS antenna into place until fully seated for approximately 30 seconds.

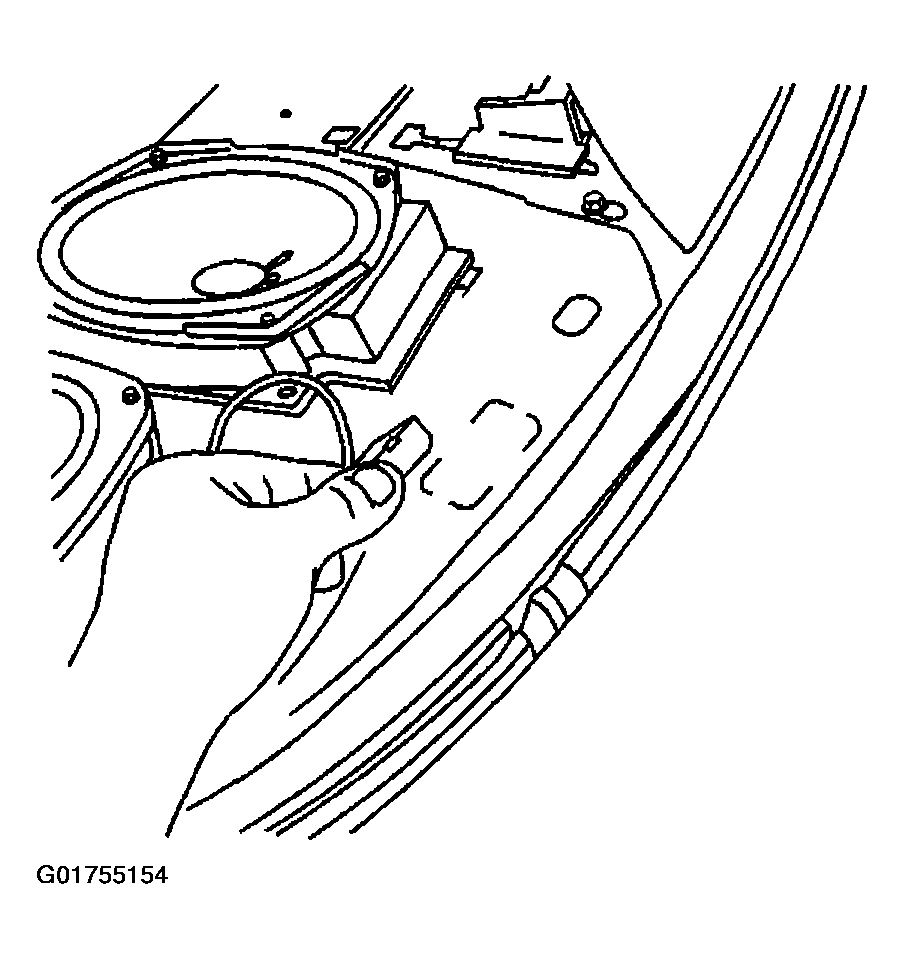

    Fig 1: Installing GPS Antenna To Rear Shelf
    G01755154Courtesy of GENERAL MOTORS CORP.
  4. Connect the GPS antenna cable connector.

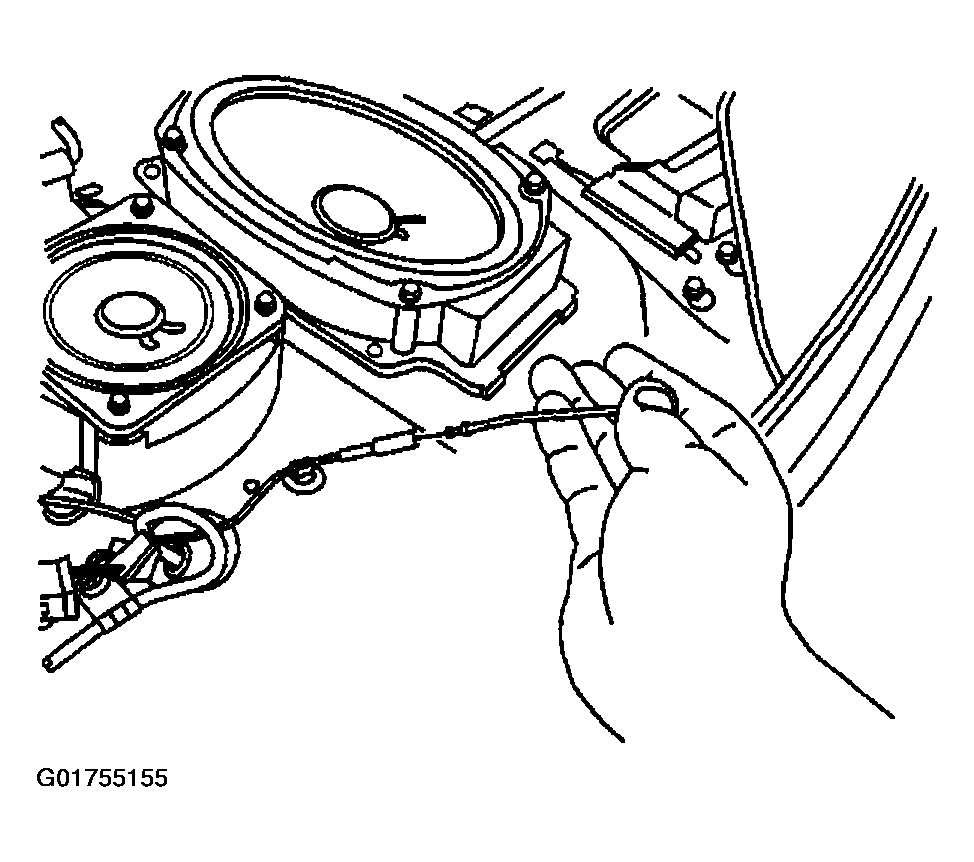

    5. Fig 2: Connecting GPS Antenna Cable Connector
    G01755155Courtesy of GENERAL MOTORS CORP.
  5. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
