Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (3) to the ambient light sensor (2).
Install the ambient light sensor (2) to the defrost duct (1), then rotate a 1/4-turn to secure the sensor.
Push back the IP carrier to the original position. Refer to IP CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.

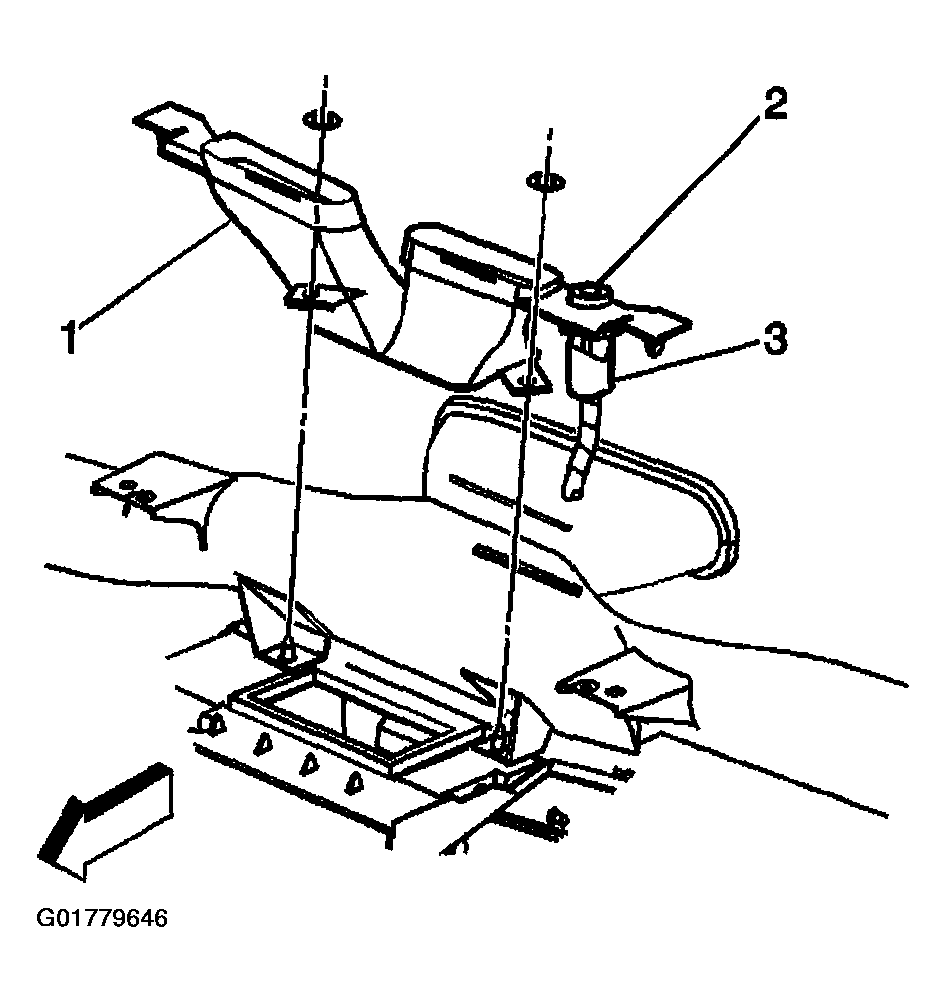

Fig 1: Installing Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
