Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the IP compartment lamp switch socket, if required.
  2. Connect the electrical connector to the IP compartment lamp switch.
  3. Install the IP compartment lamp switch to the IP compartment.
  4. Press the switch into the IP compartment until the retainers are fully seated.
  5. Install the IP compartment to the IP carrier. Refer to COMPARTMENT REPLACEMENT -- IP in Instrument Panel, Gages and Console.

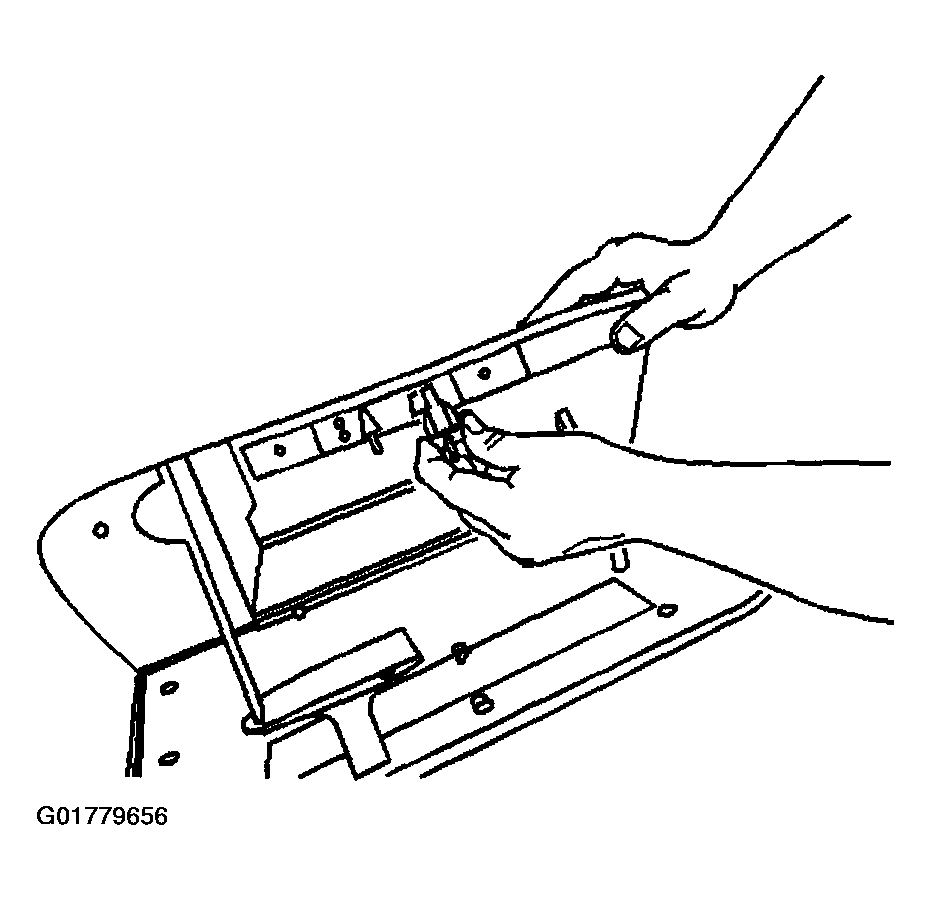

    Fig 1: IP Compartment Lamp Switch
    G01779656Courtesy of GENERAL MOTORS CORP.
