Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Align the dimmer switch (2) with the opening in the IP cluster trim plate.
Push inward on the dimmer switch (2) until fully seated into the IP cluster trim plate.
Connect the electrical connector to the dimmer switch (2).
Connect the hazard warning switch electrical connector if required.
Install the IP trim plate to the IP Carrier. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.

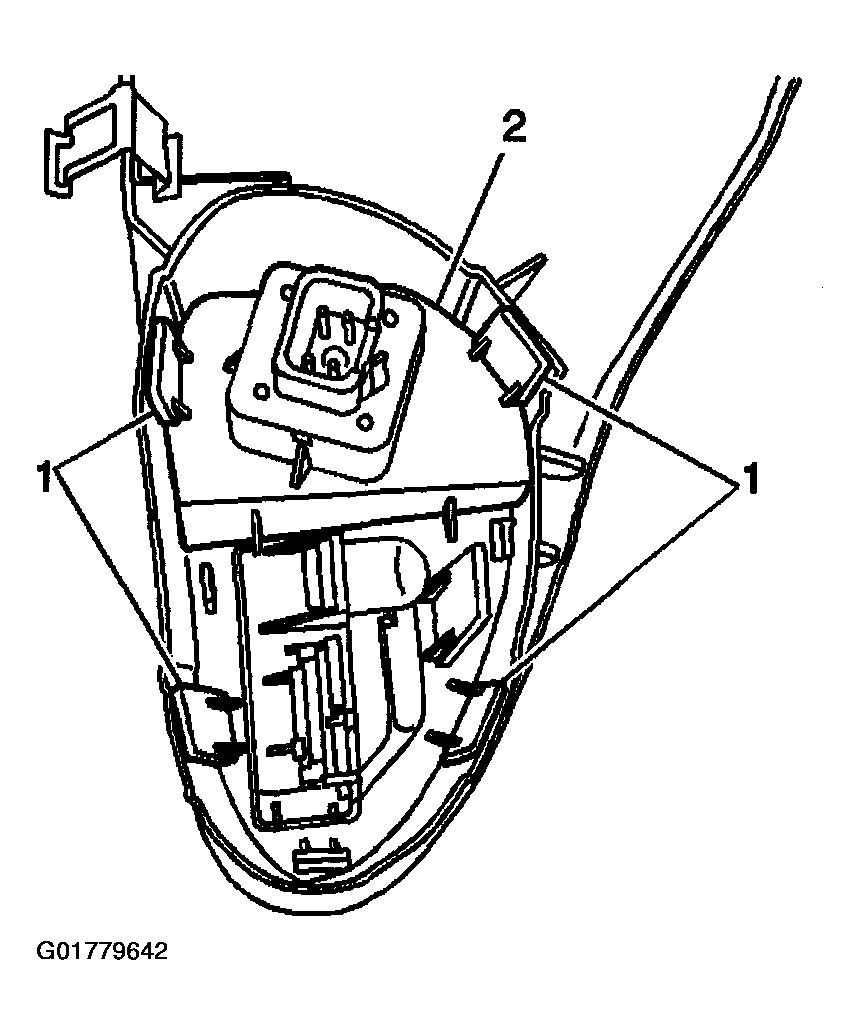

Fig 1: Installing IP Dimmer Switch

Courtesy of GENERAL MOTORS CORP.
