Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the window run channel bolts (2, 4) to the window run channel (1).

    Tighten

    Tighten the window run channel bolts to 10 N.m (89 lb in).

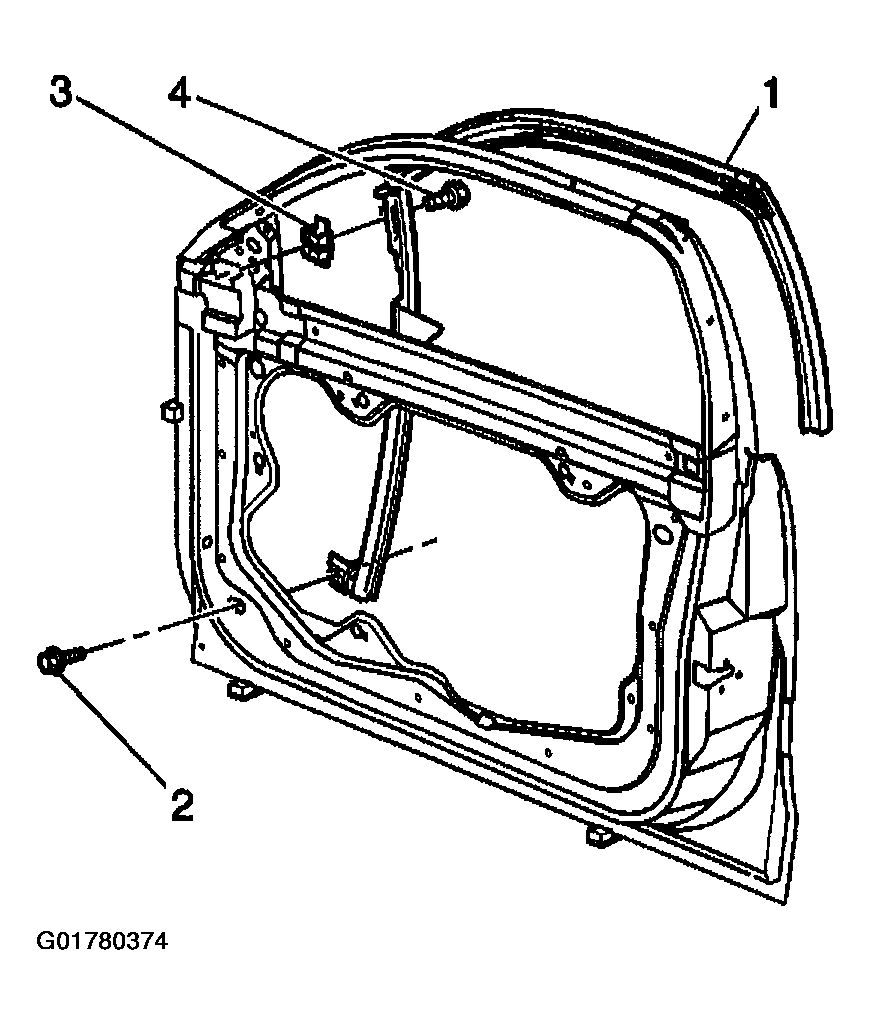

    2. Fig 1: Installing Window Run Channel
    G01780374Courtesy of GENERAL MOTORS CORP.
  2. Install the front door inner belt sealing strip. Refer to Sealing Strip Replacement-Rear Door Window Belt Inner .
  3. Install the front door outer belt sealing strip. Refer to Sealing Strip Replacement-Front Door Window Belt Outer .
  4. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  5. Install the outside rearview mirror. Refer to Mirror Replacement  or Mirror Replacement-Remote  .
  6. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
