Hazard Warning Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Remove the dashboard center panel. (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION .)
- Disconnect the hazard warning switch connector.

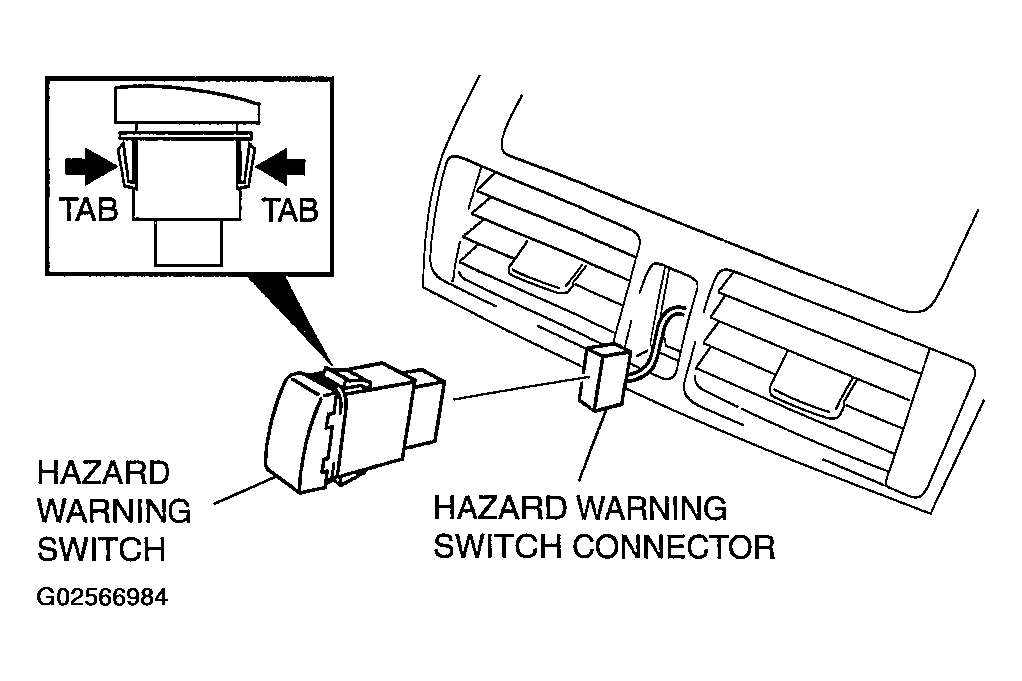

- Squeeze the tabs of hazard warning switch and pull it outward to remove it.
- Install in the reverse order of removal.
