Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the DVD player hook (1) into the hook opening.

Fig 1: Installing DVD Player Hook Into Hook Opening
Courtesy of GENERAL MOTORS CORP.
Connect the wire connector (1) to the DVD player assembly.
Important: Ensure the harness is routed to the right side of the large plastic pin (2) as shown.
Install the harness retainer to the panel.
Swing the rear part of the assembly to the headliner so that the retainer is seated.

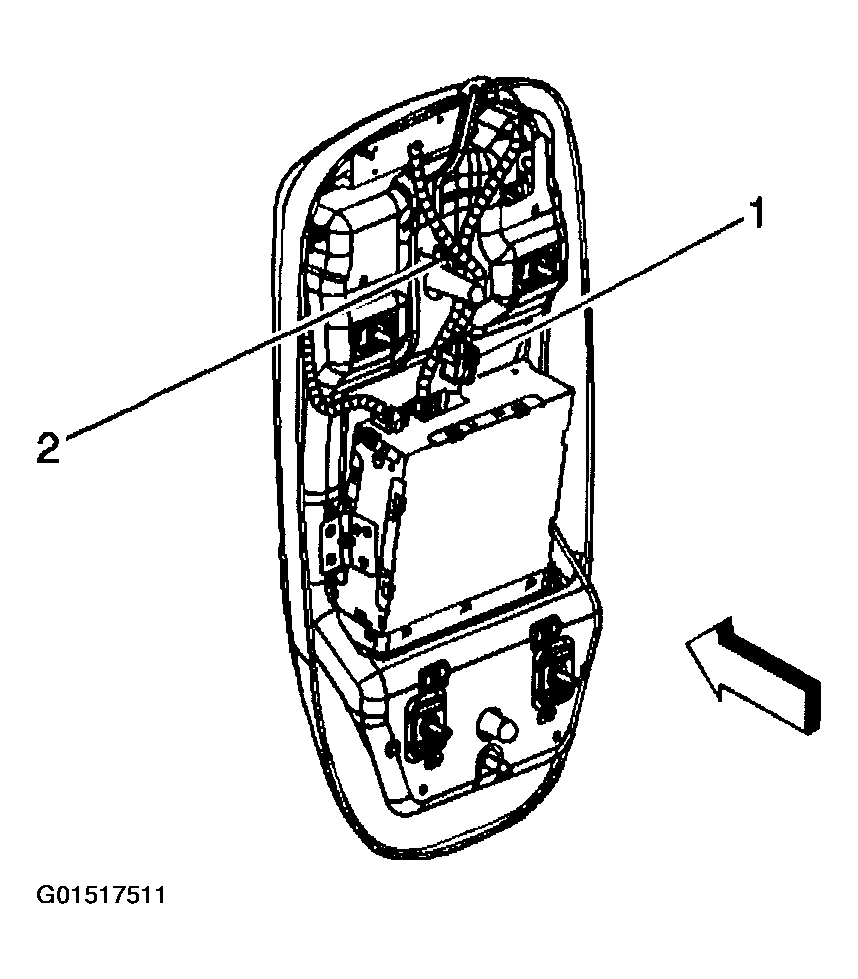

Fig 2: Connecting Wire Connector To DVD Player Assembly
Courtesy of GENERAL MOTORS CORP.
Install the rear retaining bolts.
Tighten

Tighten the bolts to 9 N.m (80 lb in).

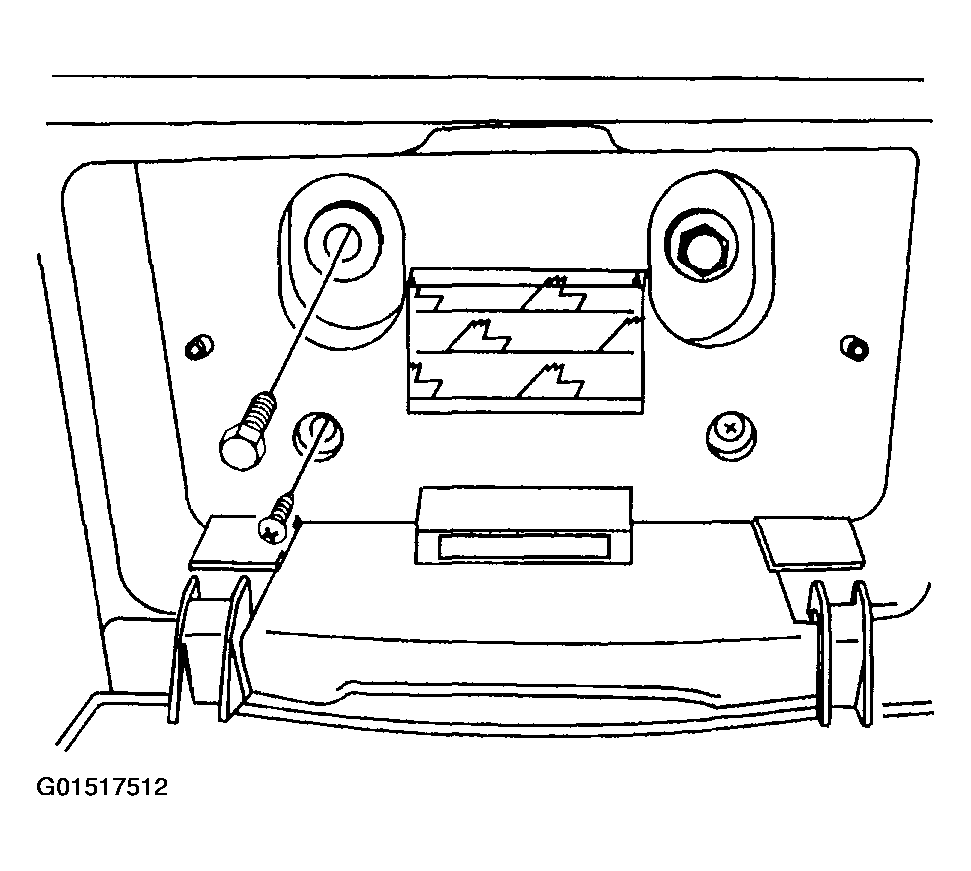

Fig 3: Installing Rear Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Move the screen to the open position.
Install the front retaining bolts (2).
Tighten

Tighten the bolts to 9 N.m (80 lb in).
Close the rear screw cover.

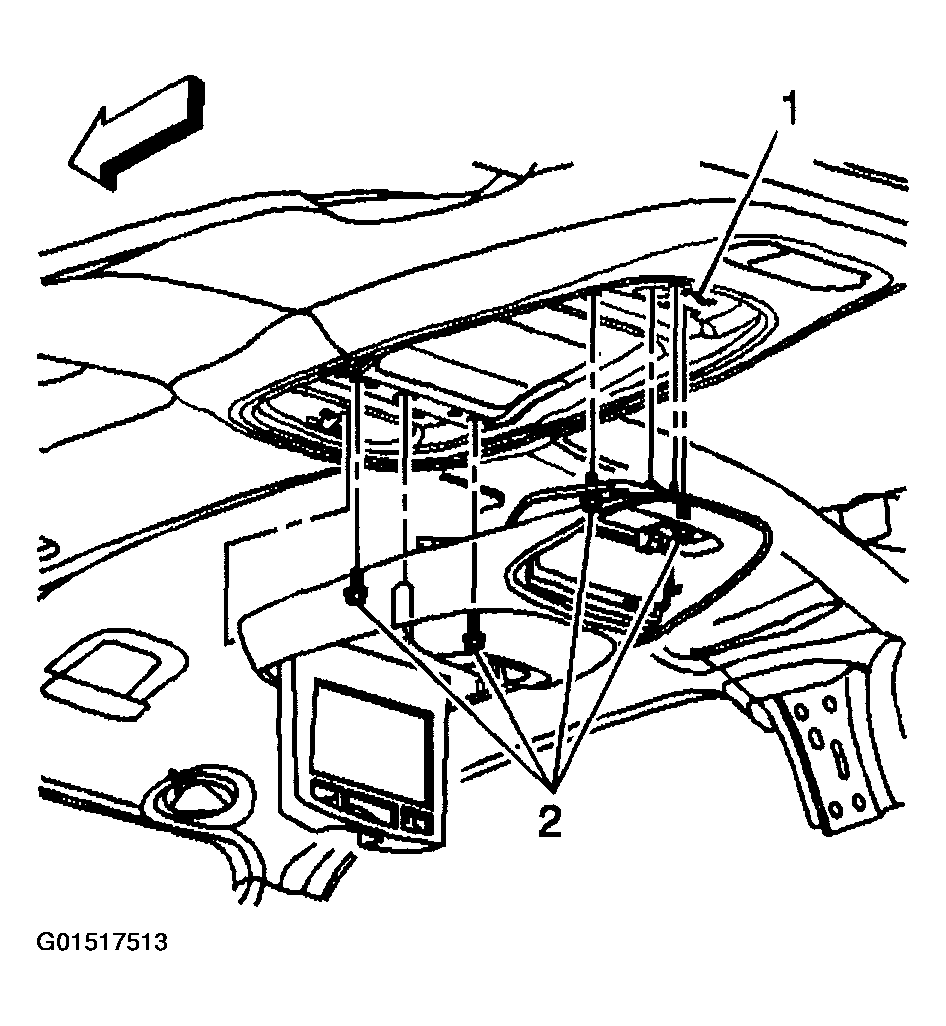

Fig 4: Installing Front Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
