Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the dome lamp assembly to the roof rear header garnish molding by pressing the assembly into position.
  2. Connect the electrical connector.
  3. Install the rear window garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER in Interior Trim.
  4. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical

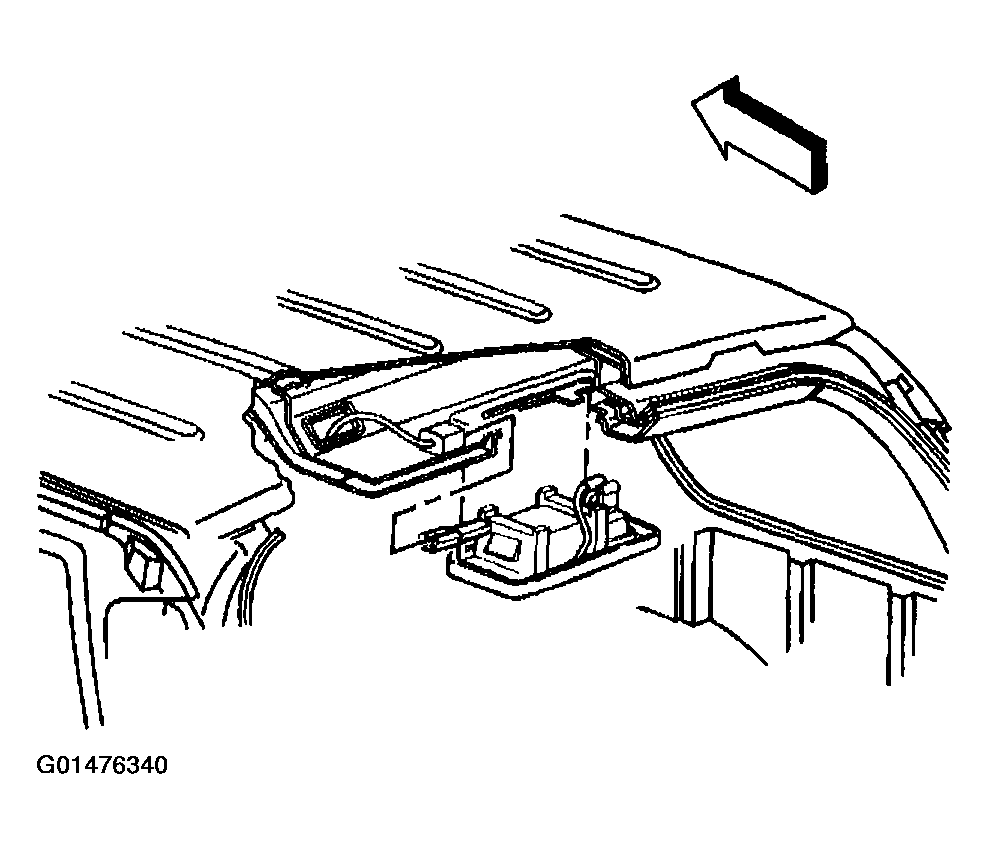

    Fig 1: Installing Cargo Lamp Assembly To Roof Rear Header Garnish Molding
    G01476340Courtesy of GENERAL MOTORS CORP.
