Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

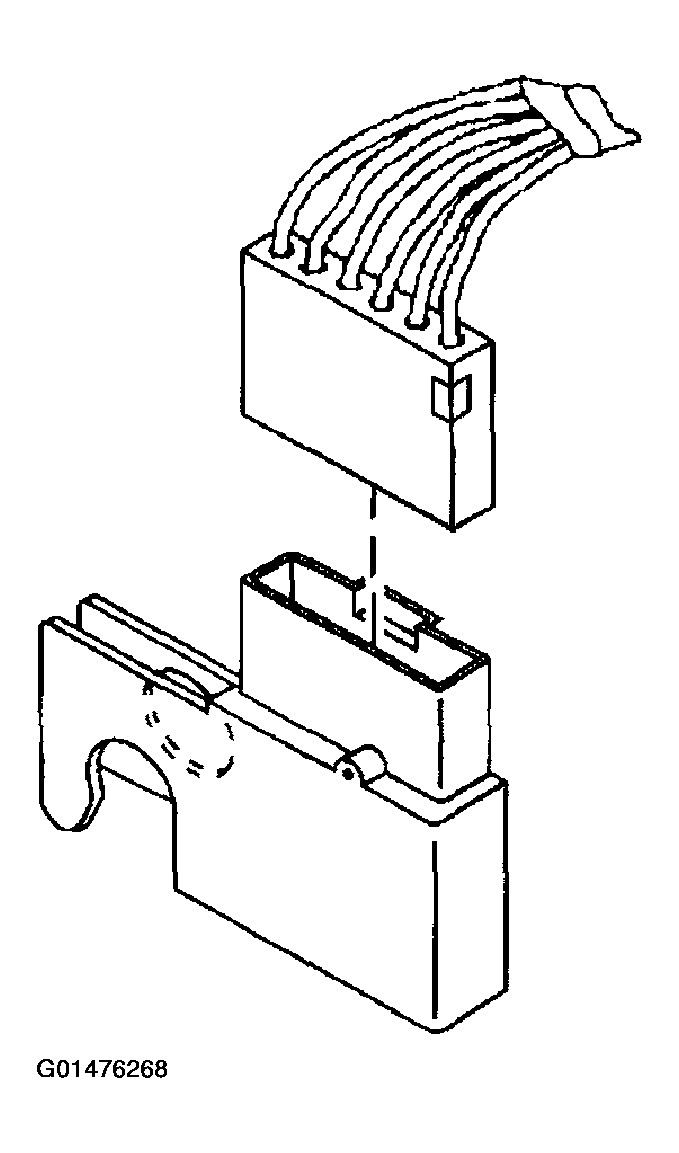

Install the electrical connector to the stop lamp switch.

Fig 1: Installing Electrical Connector To Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.

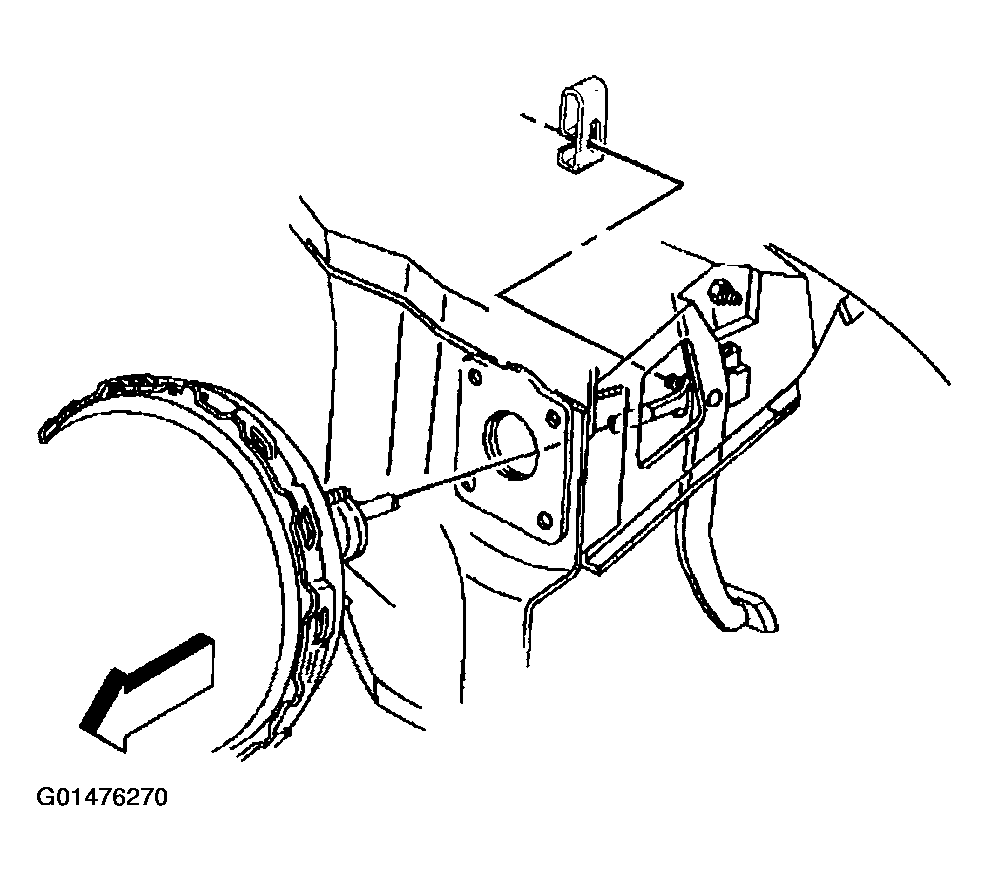

Install the stop lamp switch and the pushrod to the brake pedal pin.

Fig 2: Installing Stop Lamp Switch & Pushrod To Brake Pedal Pin
Courtesy of GENERAL MOTORS CORP.

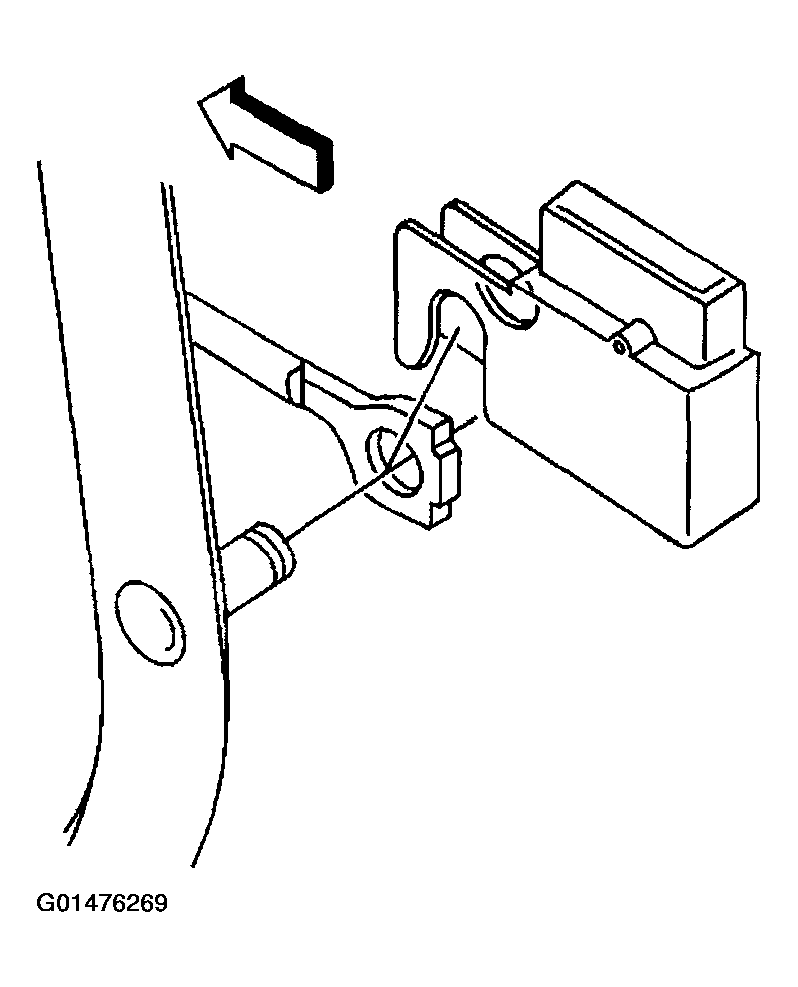

Install the pushrod retainer on the brake pedal pin. The retainer will snap into place.

Fig 3: Installing Pushrod Retainer On Brake Pedal Pin
Courtesy of GENERAL MOTORS CORP.
