Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pushrod retainer from the brake pedal pin.

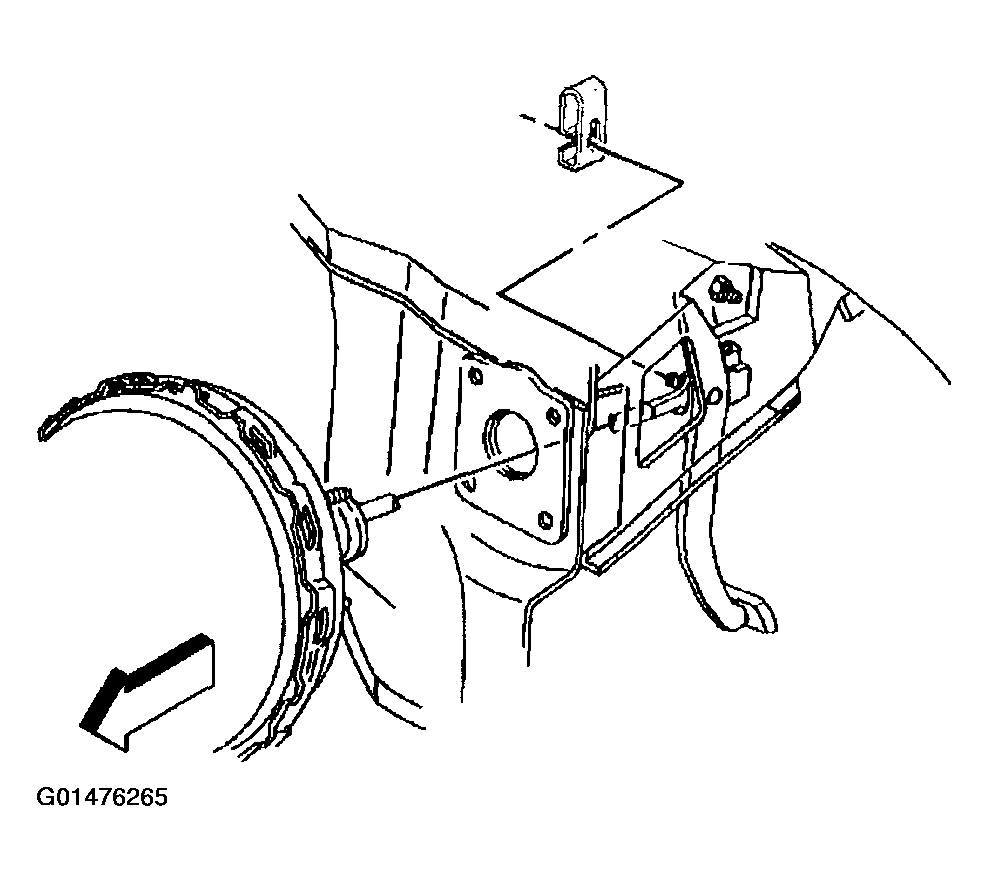

Fig 1: Removing Pushrod Retainer From Brake Pedal Pin
Courtesy of GENERAL MOTORS CORP.
Remove the stop lamp switch and the pushrod from the brake pedal pin.

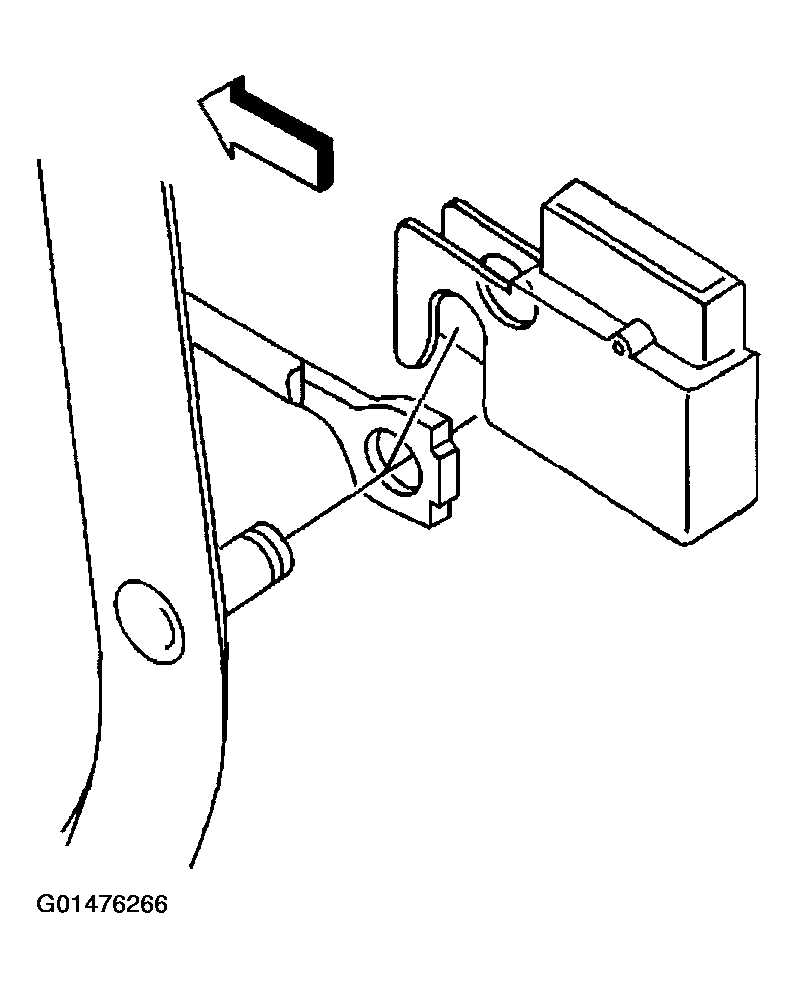

Fig 2: Removing Stop Lamp Switch & Pushrod From Brake Pedal Pin
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the stop lamp switch.

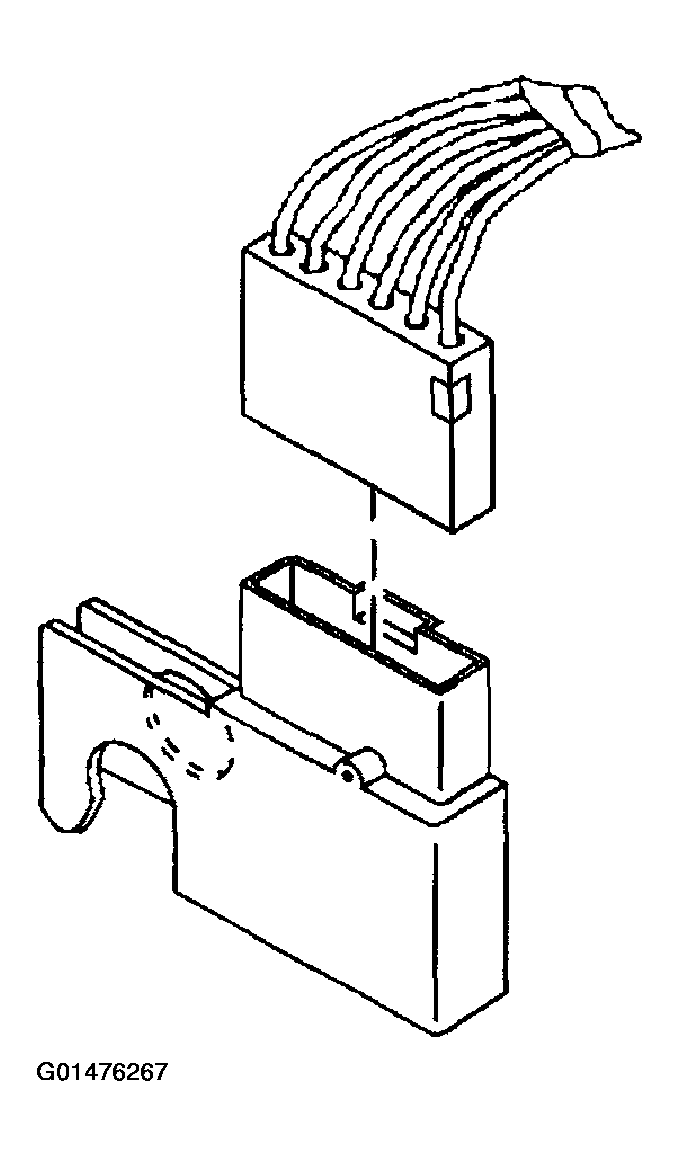

Fig 3: Disconnecting Electrical Connector From Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.
