Removal Procedure

  1. Clean the area around the connection of the air dryer (3) to the automatic level control air compressor head (4).
  2. Rotate the spring clip retaining the dryer to the automatic level control air compressor head 90 degrees.
  3. Remove the air dryer (2) from the air dryer bracket (1) and the automatic level control air compressor head.

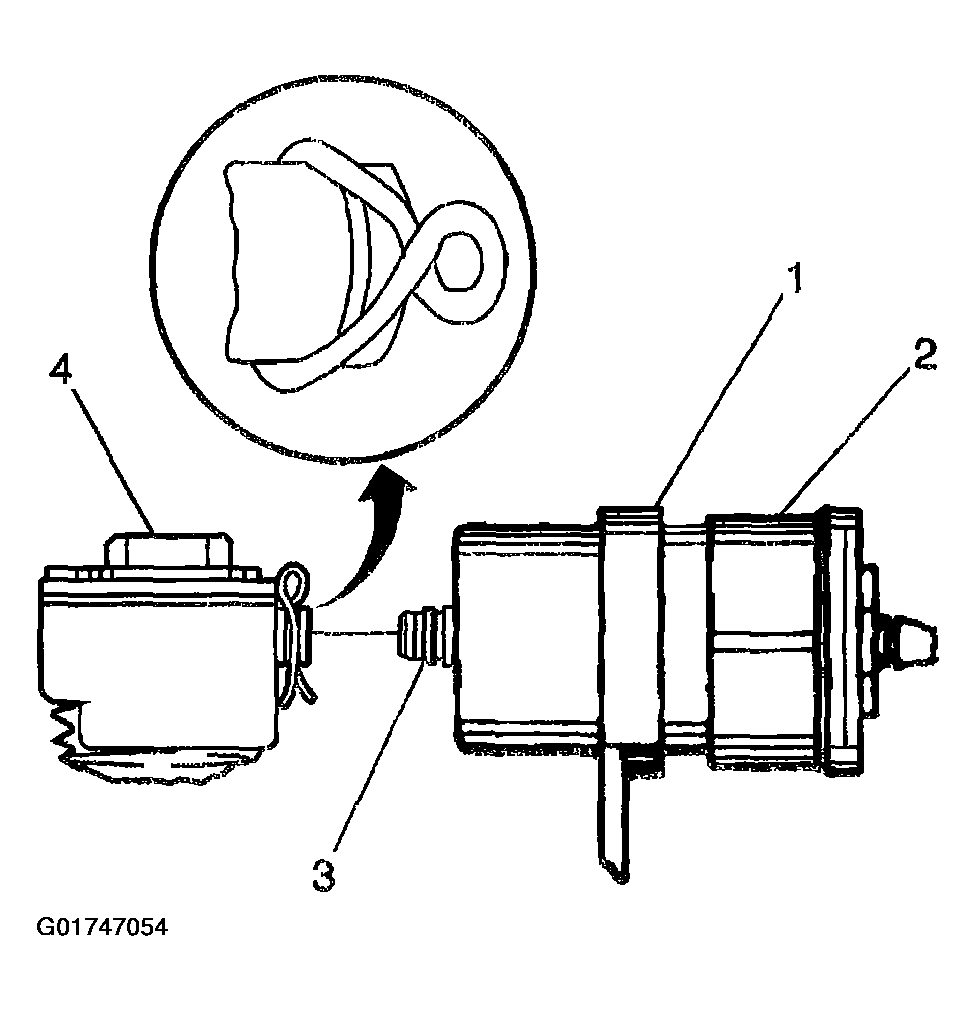

    Fig 1: Removing Air Dryer From Bracket & Automatic Level Control Air Compressor Head
    G01747054Courtesy of GENERAL MOTORS CORP.
