Installation Procedure

  1. Connect the electrical connector to the inflator switch.
  2. Install the inflator switch in the inflator control panel.
  3. Install the lower rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  4. Install the inflator fill valve access cover.

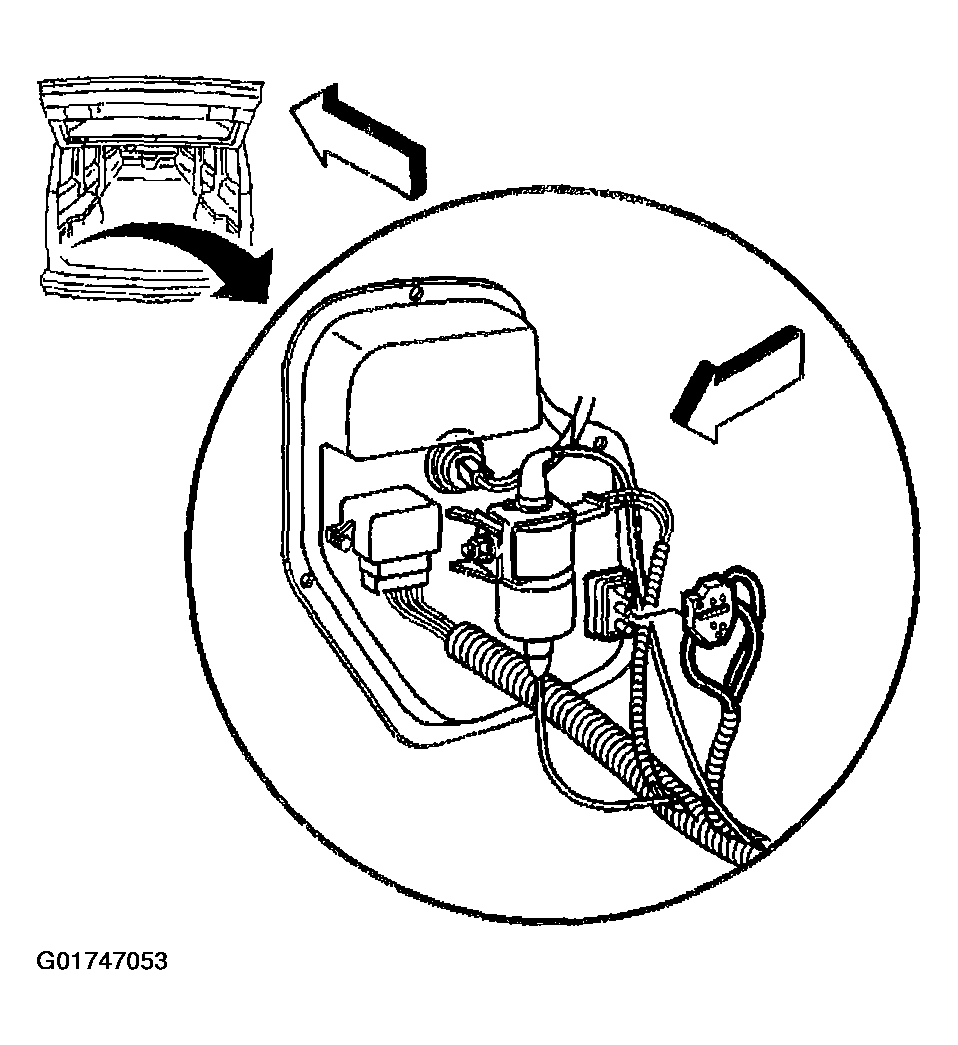

    Fig 1: Installing Automatic Level Control Inflator Air Switch & Connecting Electrical Connector
    G01747053Courtesy of GENERAL MOTORS CORP.
