Component Locations

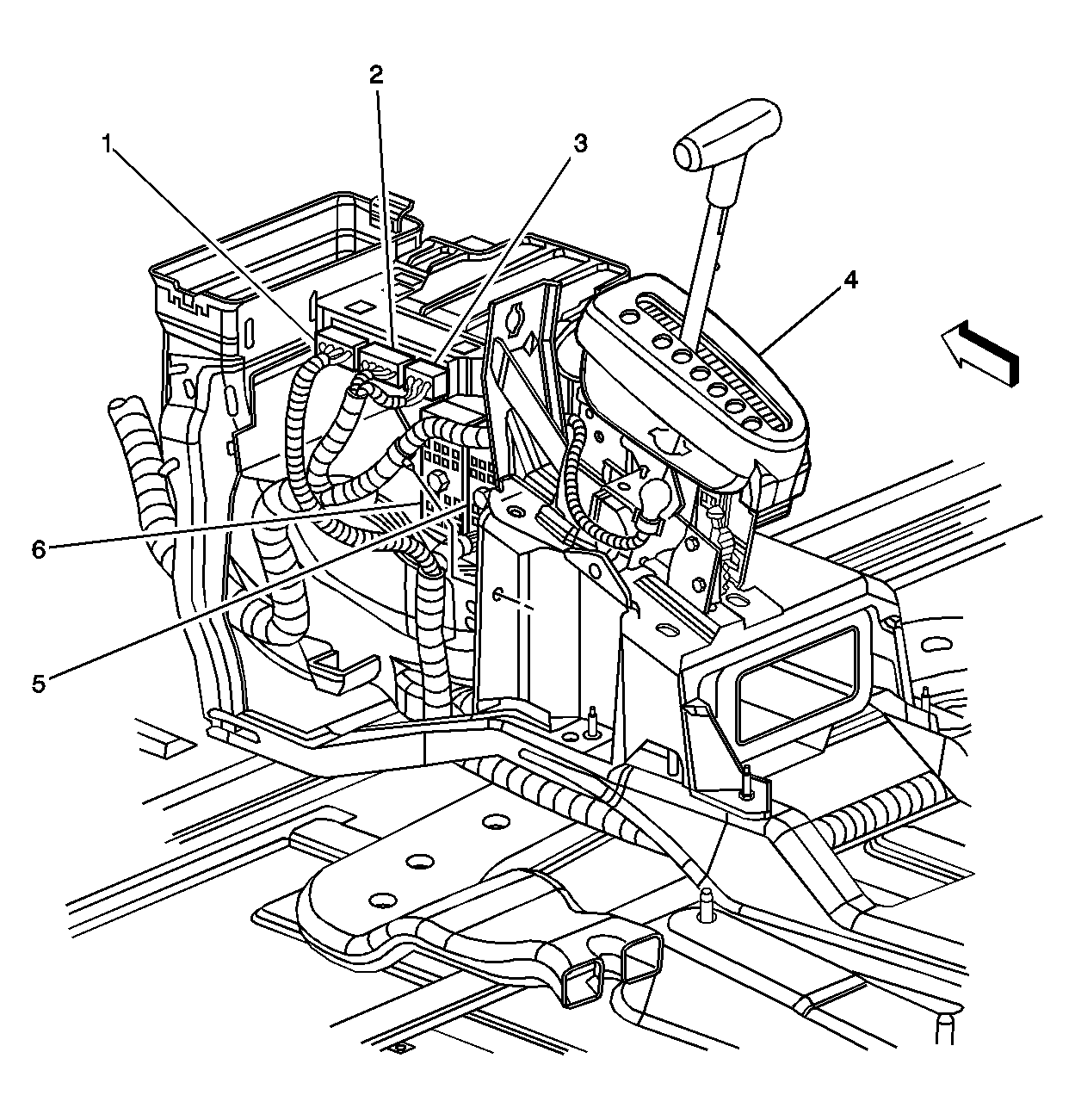

Fig 1: Center Console - Pontiac
Courtesy of GENERAL MOTORS CORP.
(1) Body Control Module (BCM) C2
(2) Body Control Module (BCM) C1
(3) Body Control Module (BCM) C0
(4) Automatic Transmission Floor Shift Control
(5) Fuse Block - Center Console C2
(6) Fuse Block - Center Console C1
