Installation Procedure

  1. Install the child tether anchors to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the child tether anchor fasteners.

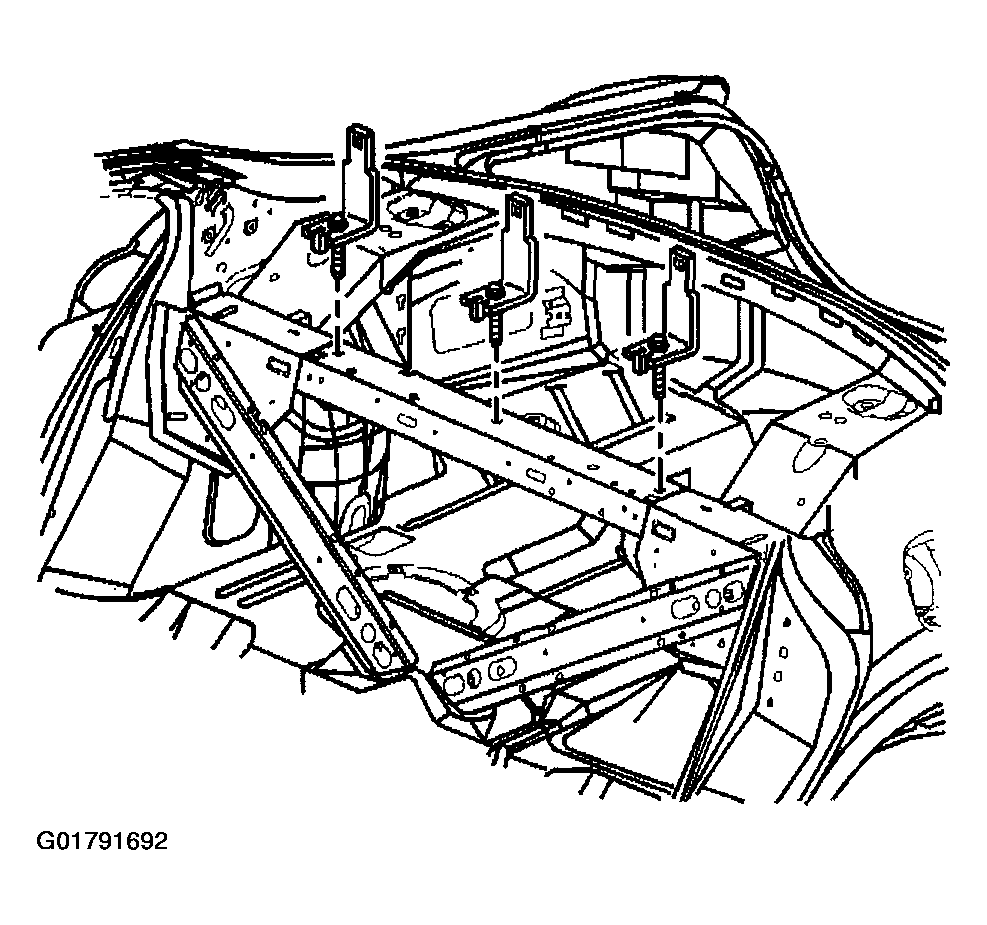

    Fig 1: Installing Child Restraint Tether Anchor
    G01791692Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the fastener to 30 N.m (22 lb ft).

  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
