Automatic Transmission Service: Identification: Transmission

NOTE: For transmission identification, see Fig 2 -Fig 3 .

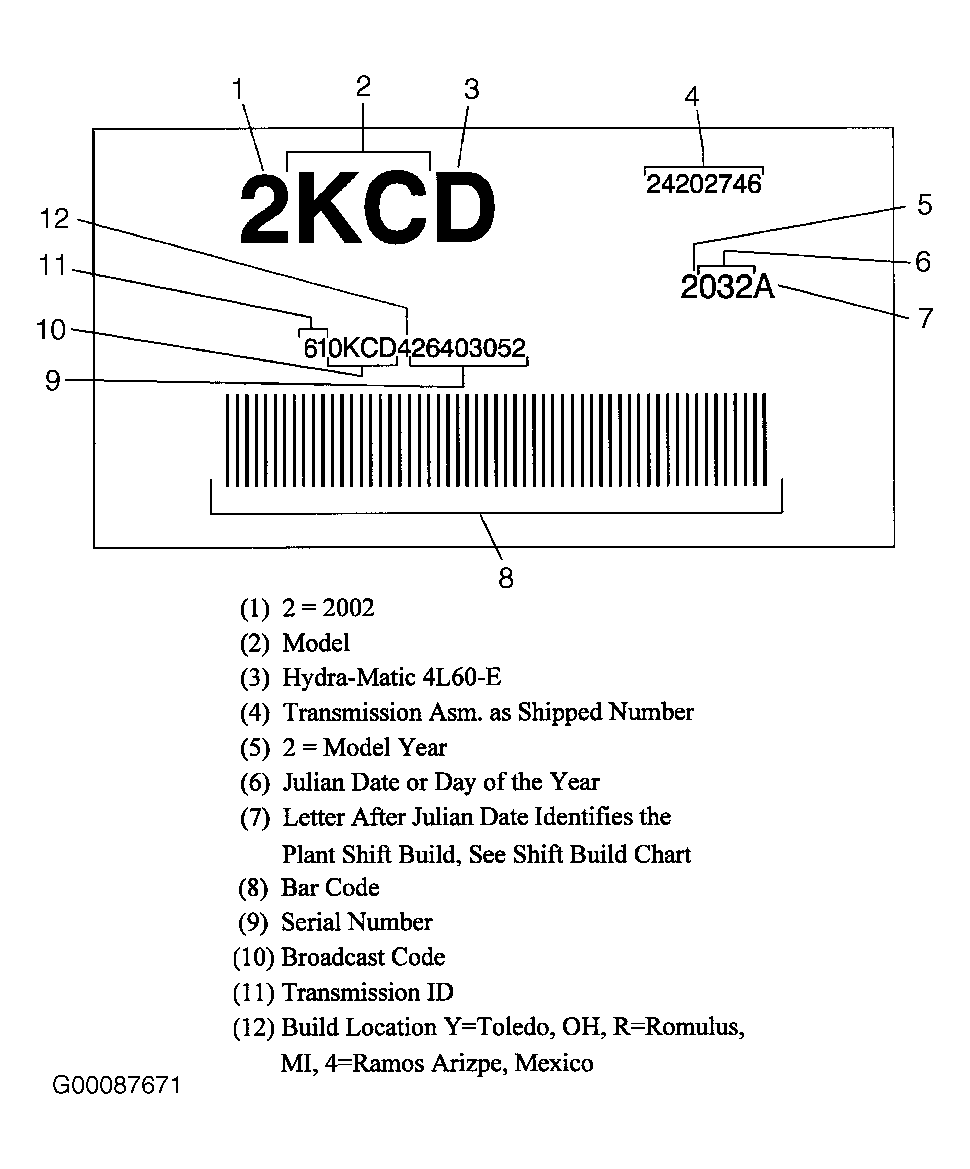

Fig 1: Bar Code Identification Information

Courtesy of GENERAL MOTORS CORP.

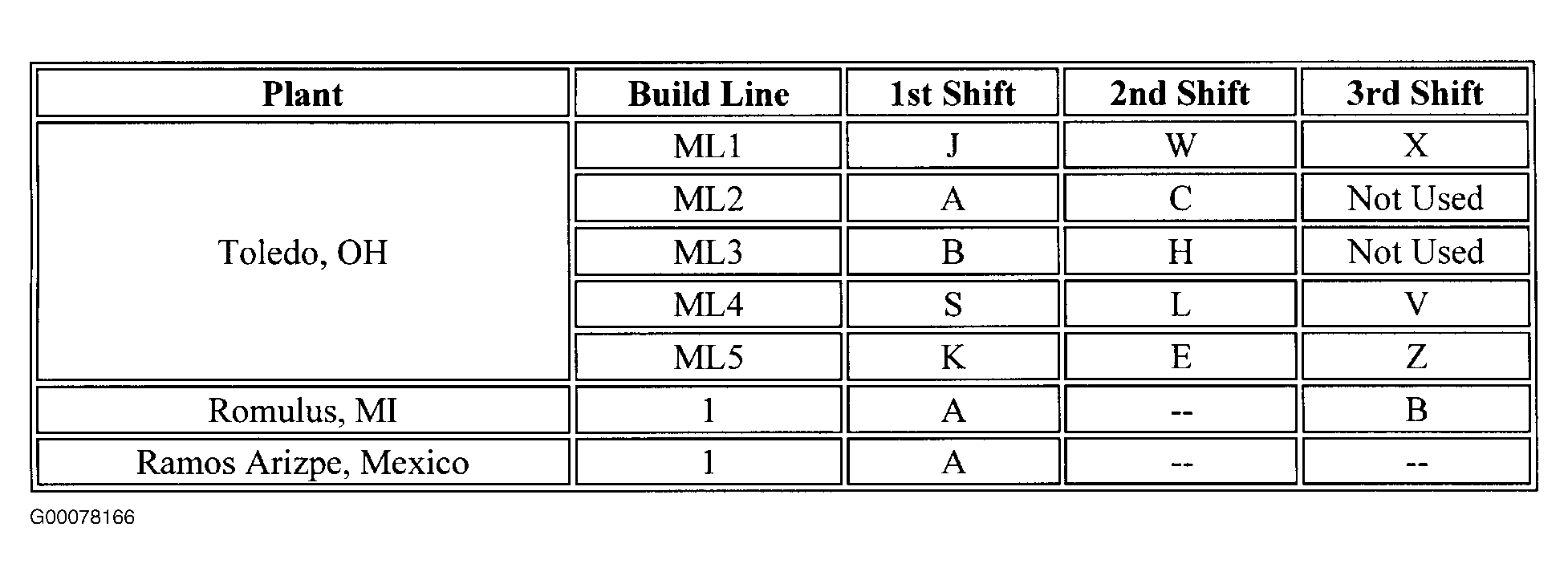

Fig 2: Plant & Shift Build Chart

Courtesy of GENERAL MOTORS CORP.

Fig 3: Transmission Identification Information (Ramos Arizpe, Mexico Build)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Transmission Identification Information (Toledo Or Romulus Build)

Courtesy of GENERAL MOTORS CORP.
