Entertainment Component Views

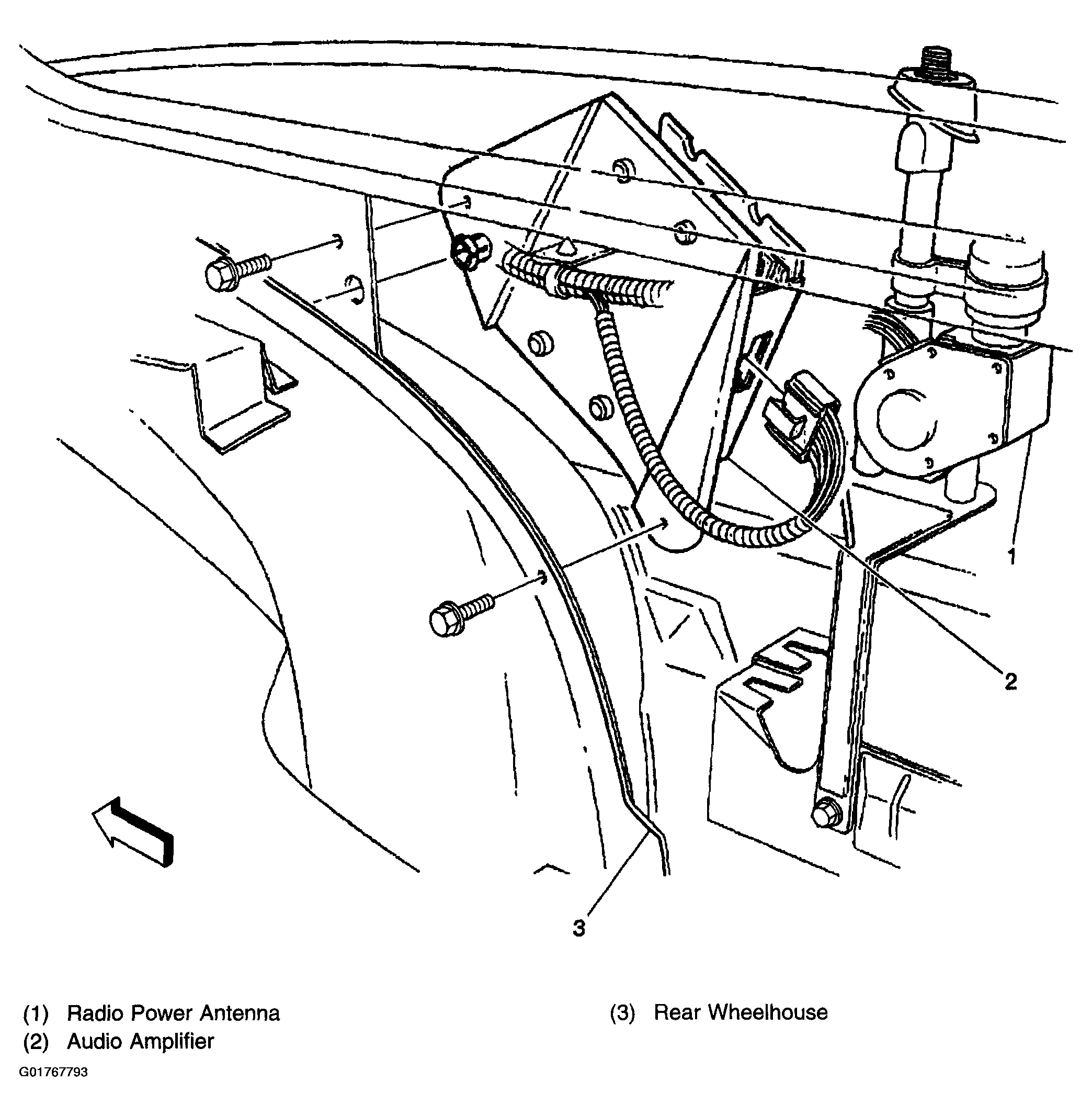

Fig 1: Right Side of Rear Compartment, Rear of Wheelhouse

Courtesy of GENERAL MOTORS CORP.

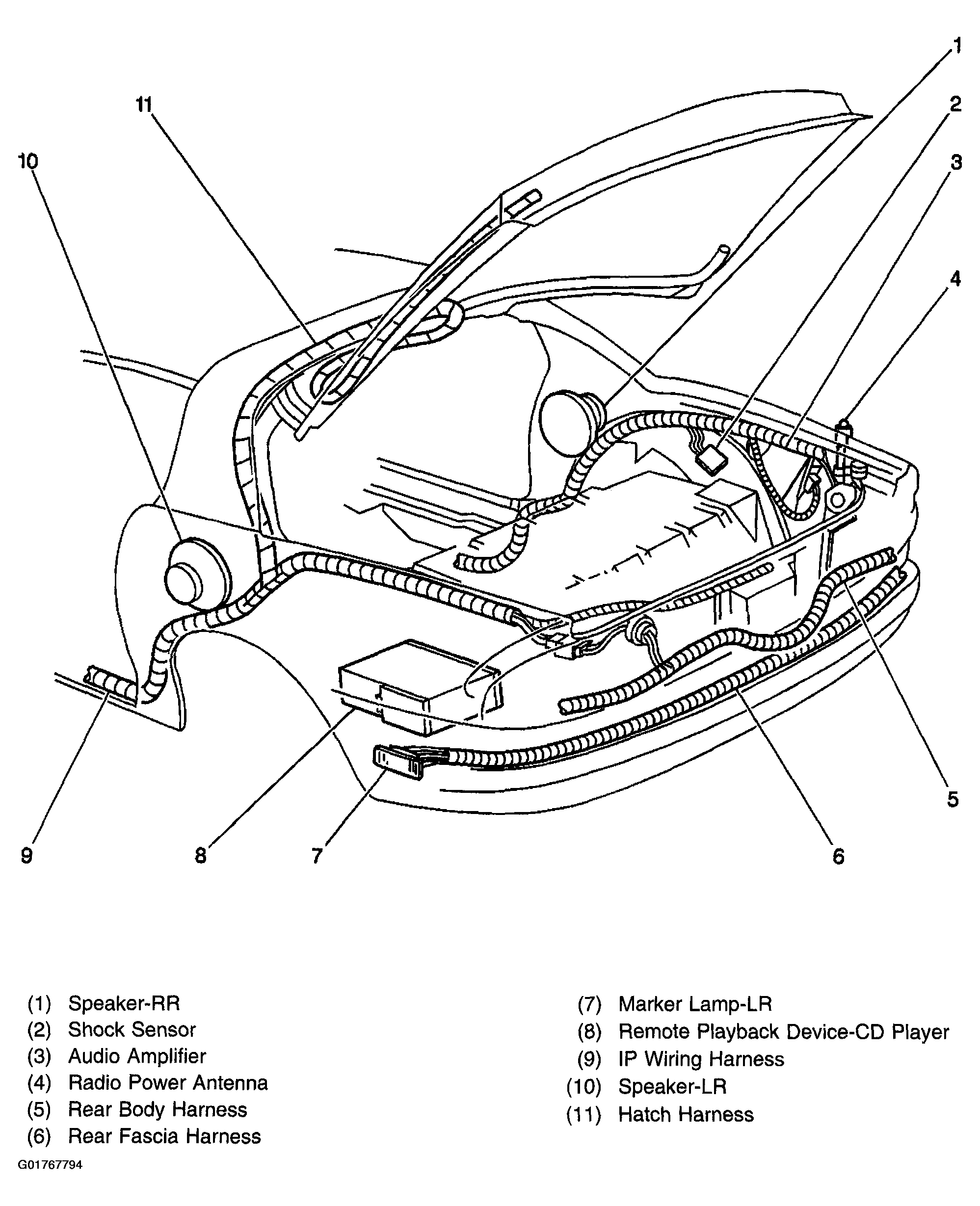

Fig 2: Rear Compartment- Coupe

Courtesy of GENERAL MOTORS CORP.

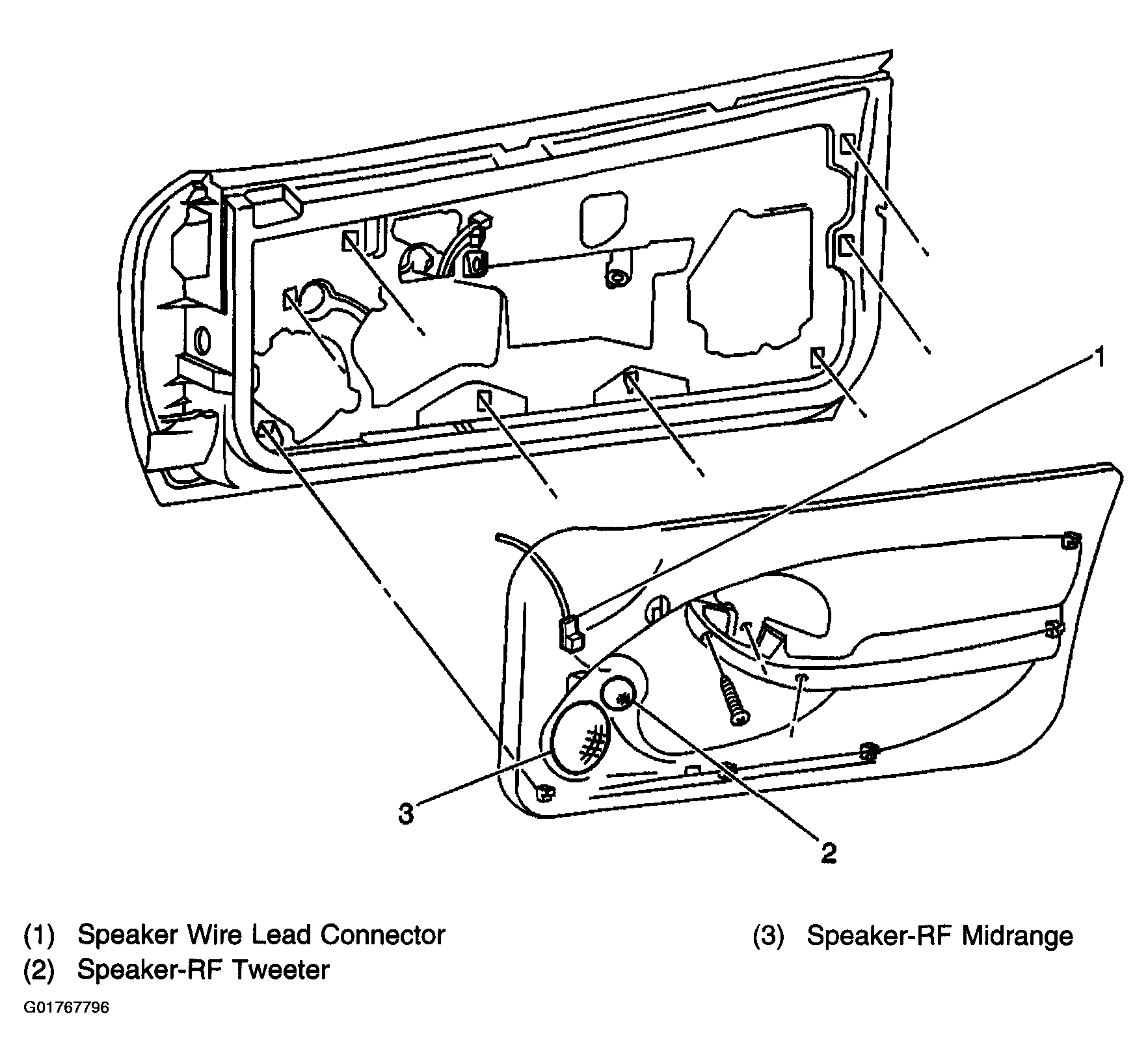

Fig 3: Door Panel (UZ7,W53,W54,W55)

Courtesy of GENERAL MOTORS CORP.

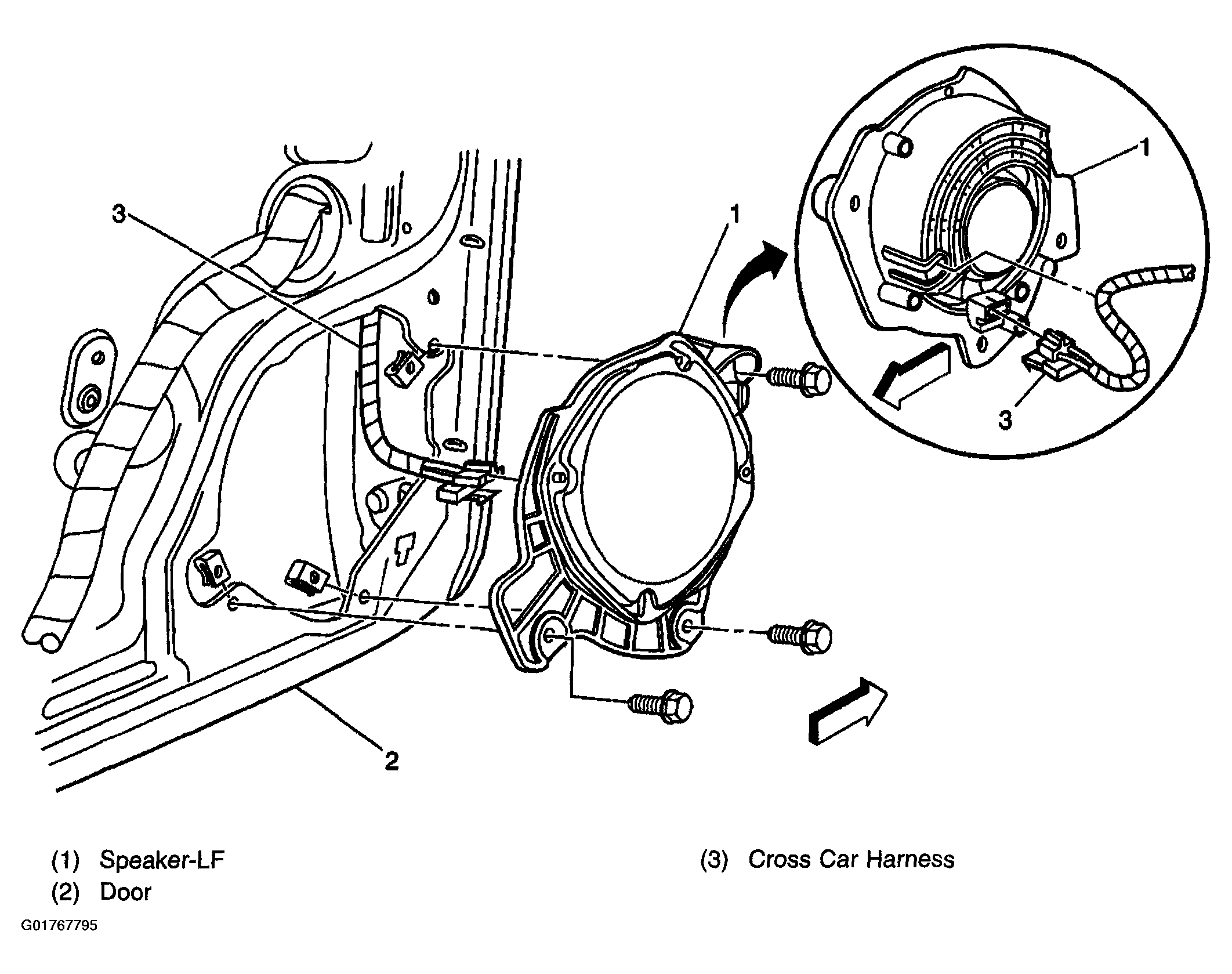

Fig 4: Door Panel (W54, W55)

Courtesy of GENERAL MOTORS CORP.

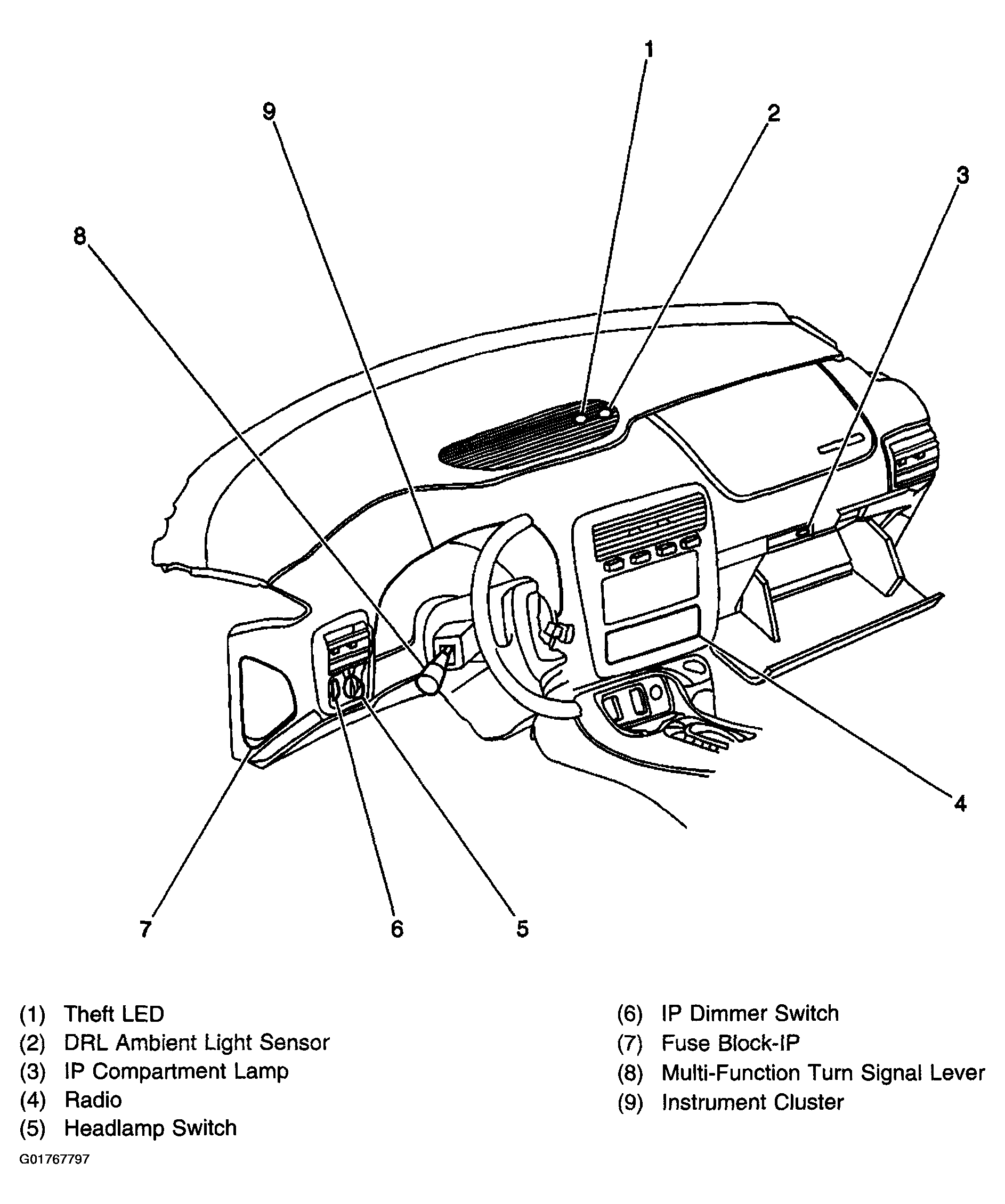

Fig 5: Instrument Panel - Chevrolet

Courtesy of GENERAL MOTORS CORP.

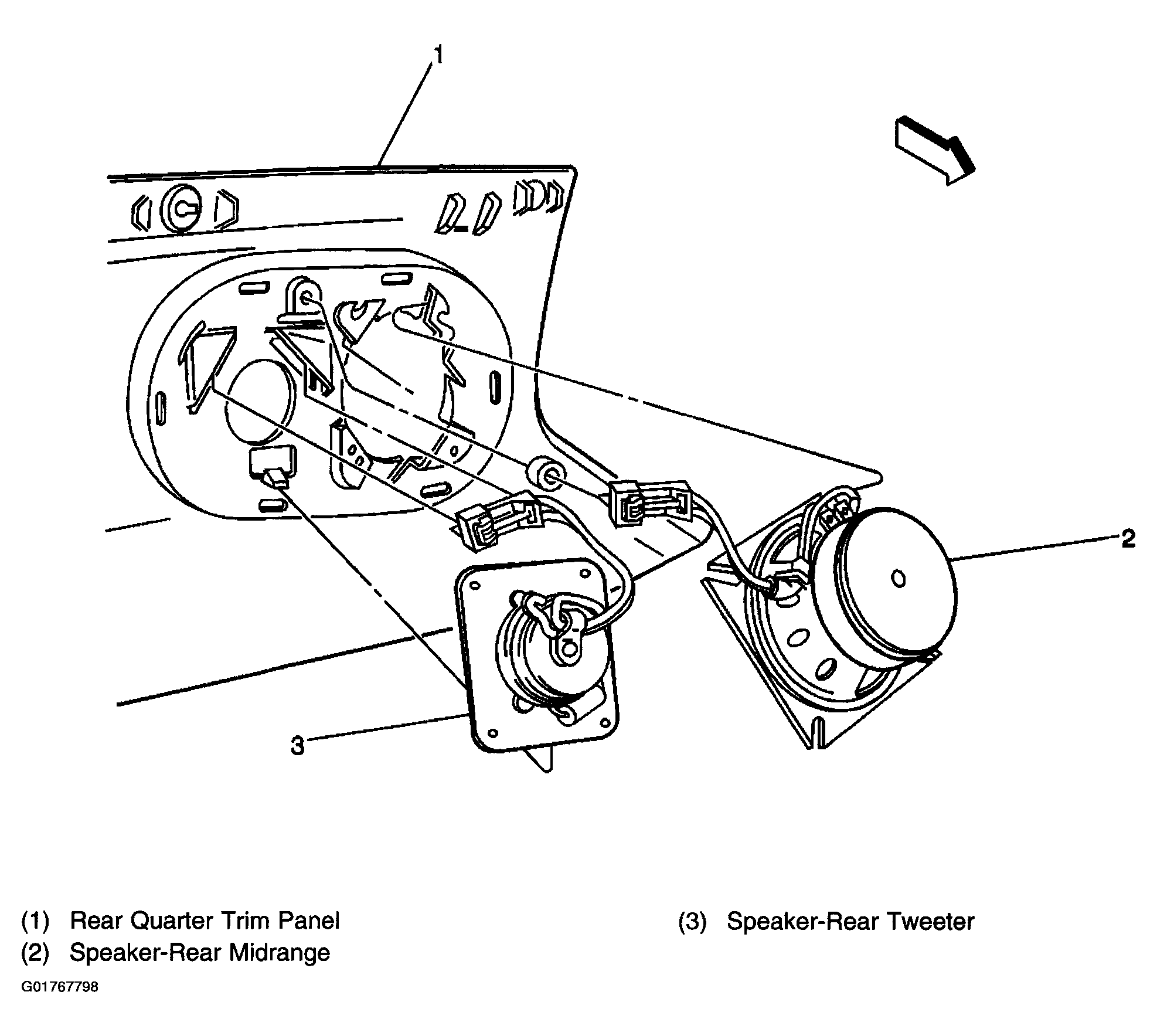

Fig 6: Rear Quarter Panel (UZ7, W54, W55)

Courtesy of GENERAL MOTORS CORP.

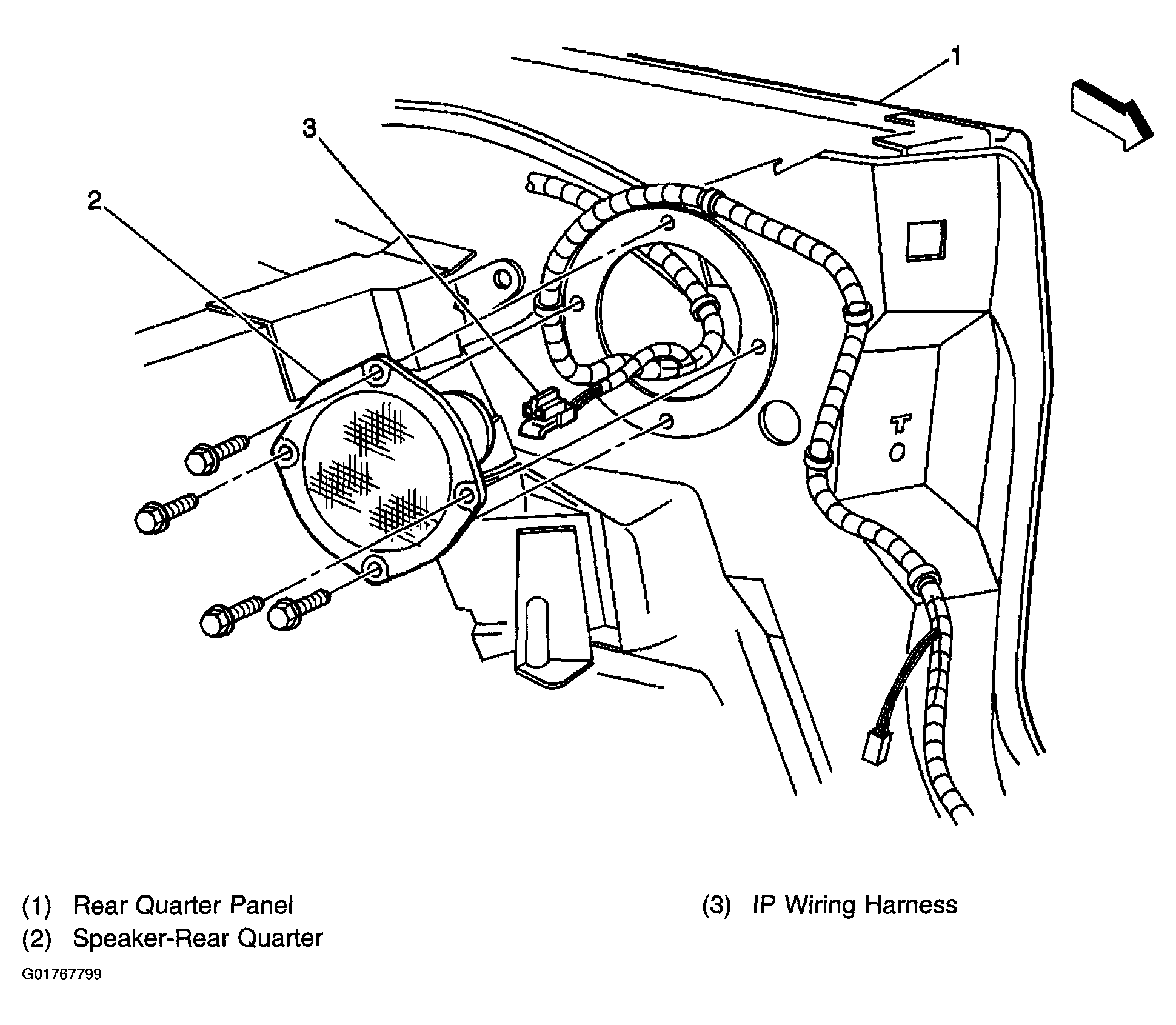

Fig 7: Rear Quarter Panel (U59)

Courtesy of GENERAL MOTORS CORP.

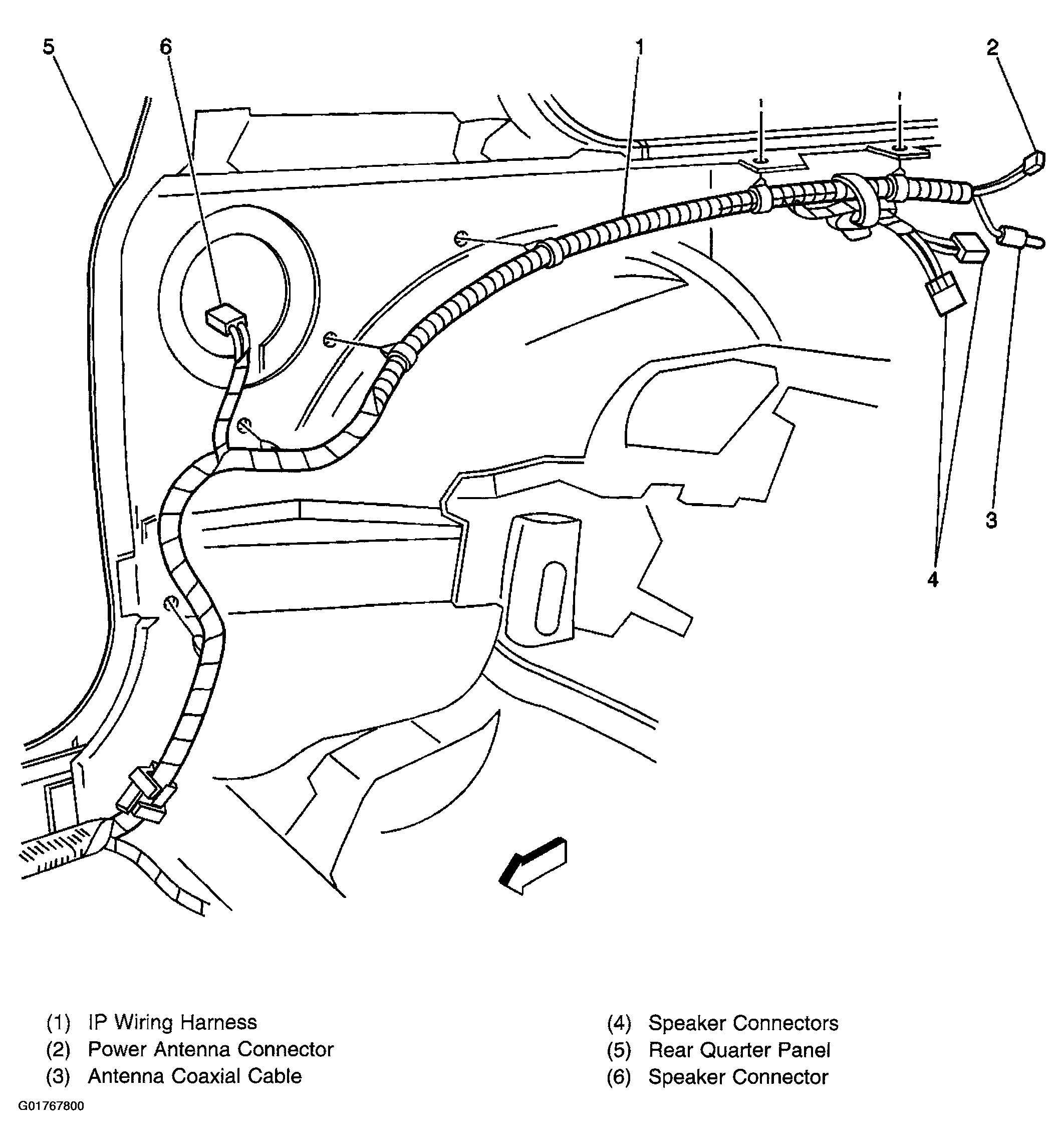

Fig 8: Right Rear Quarter Panel

Courtesy of GENERAL MOTORS CORP.

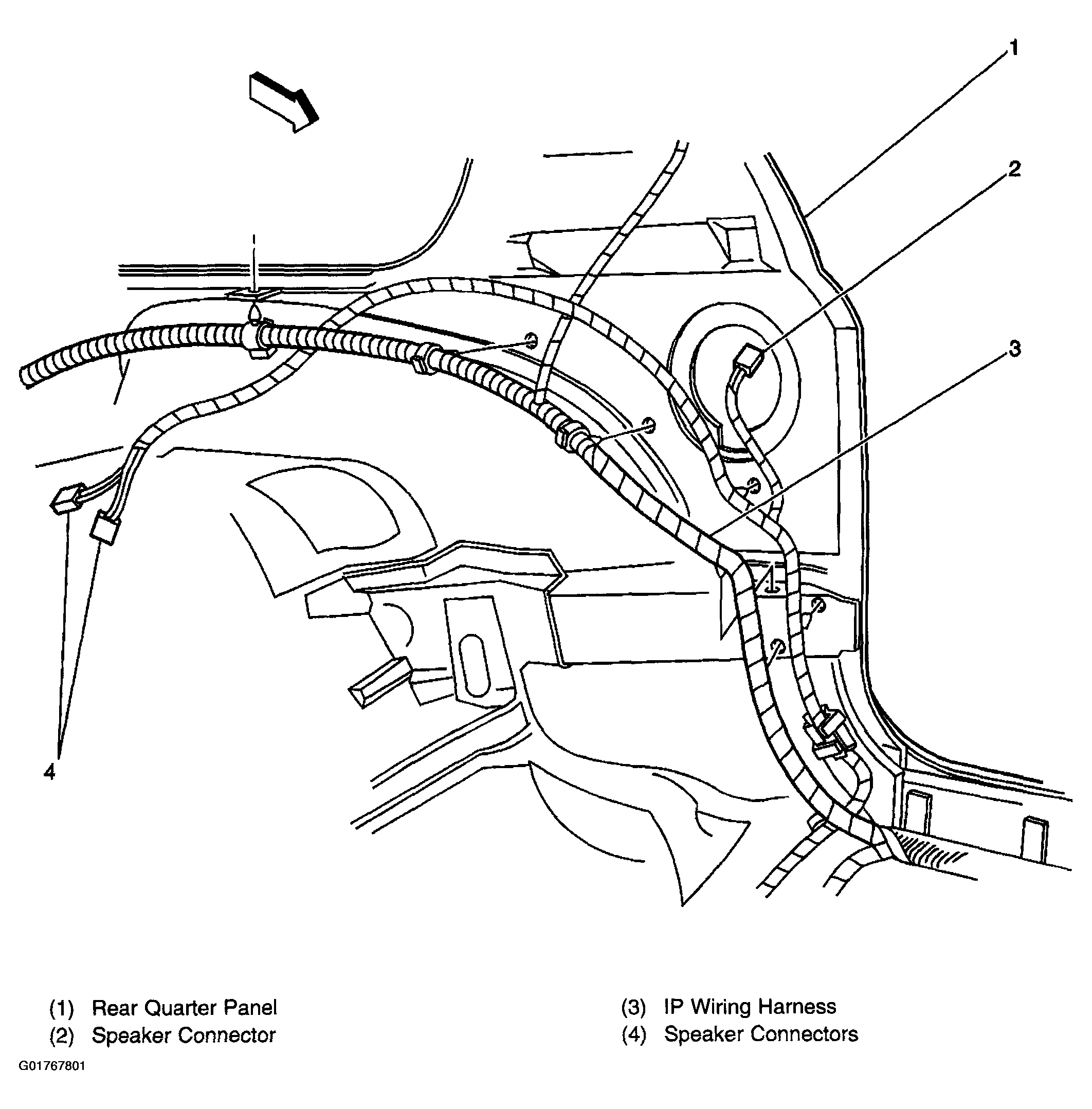

Fig 9: Left Rear Quarter Panel

Courtesy of GENERAL MOTORS CORP.

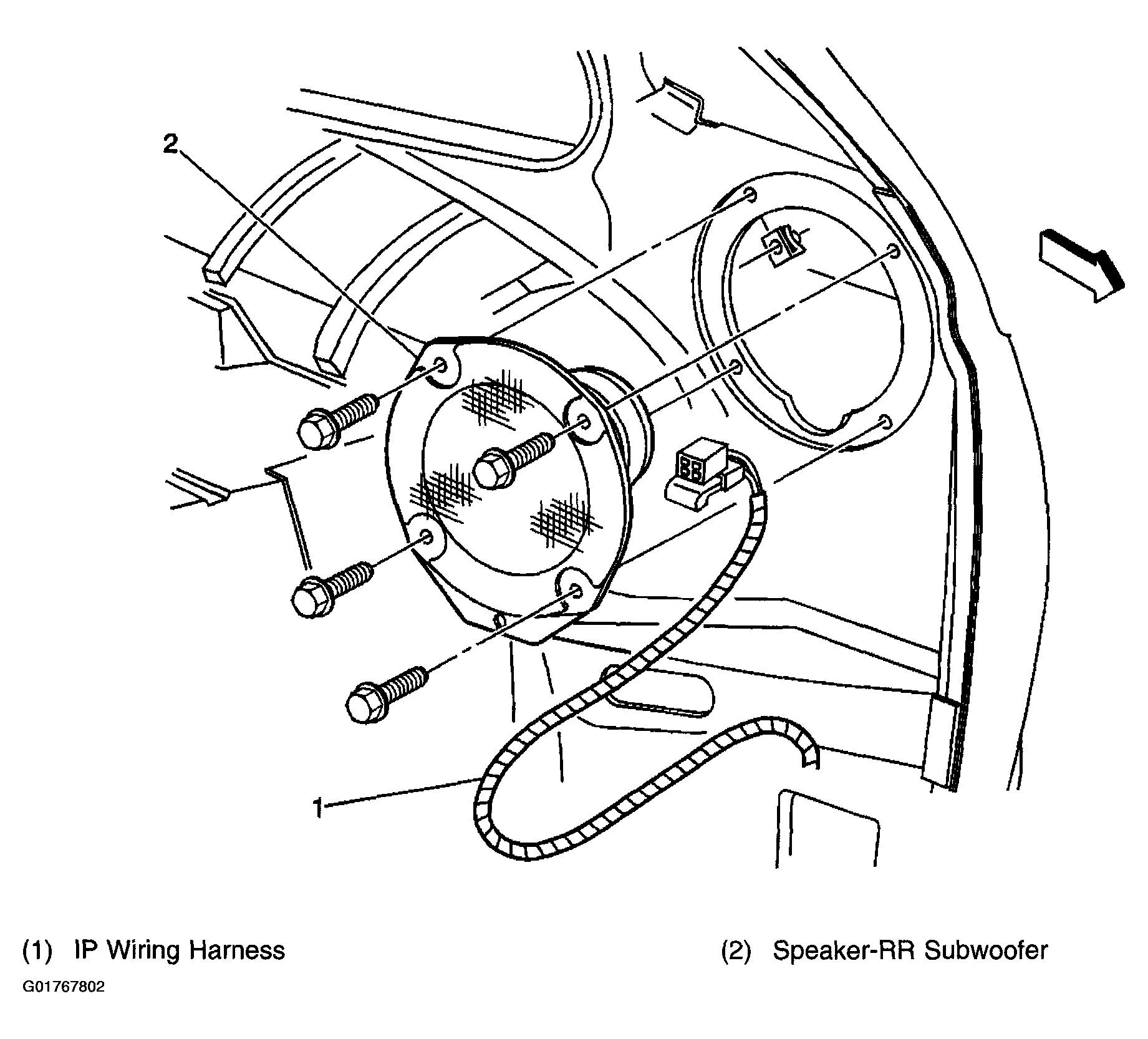

Fig 10: Rear Subwoofer (W54, W55)

Courtesy of GENERAL MOTORS CORP.

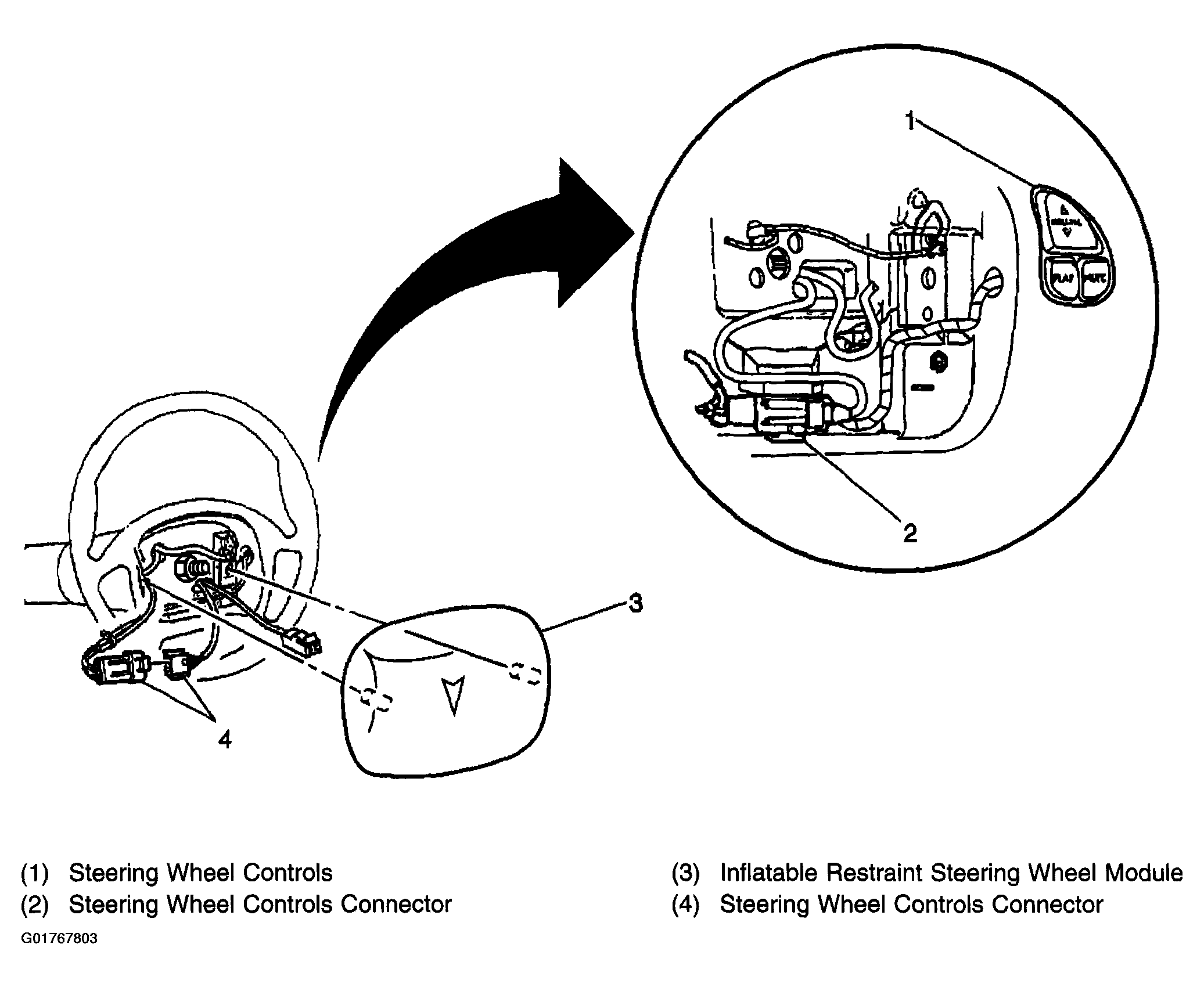

Fig 11: Steering Wheel - Pontiac

Courtesy of GENERAL MOTORS CORP.
