Wheel Alignment Specifications & Adjustment Procedures: Specifications

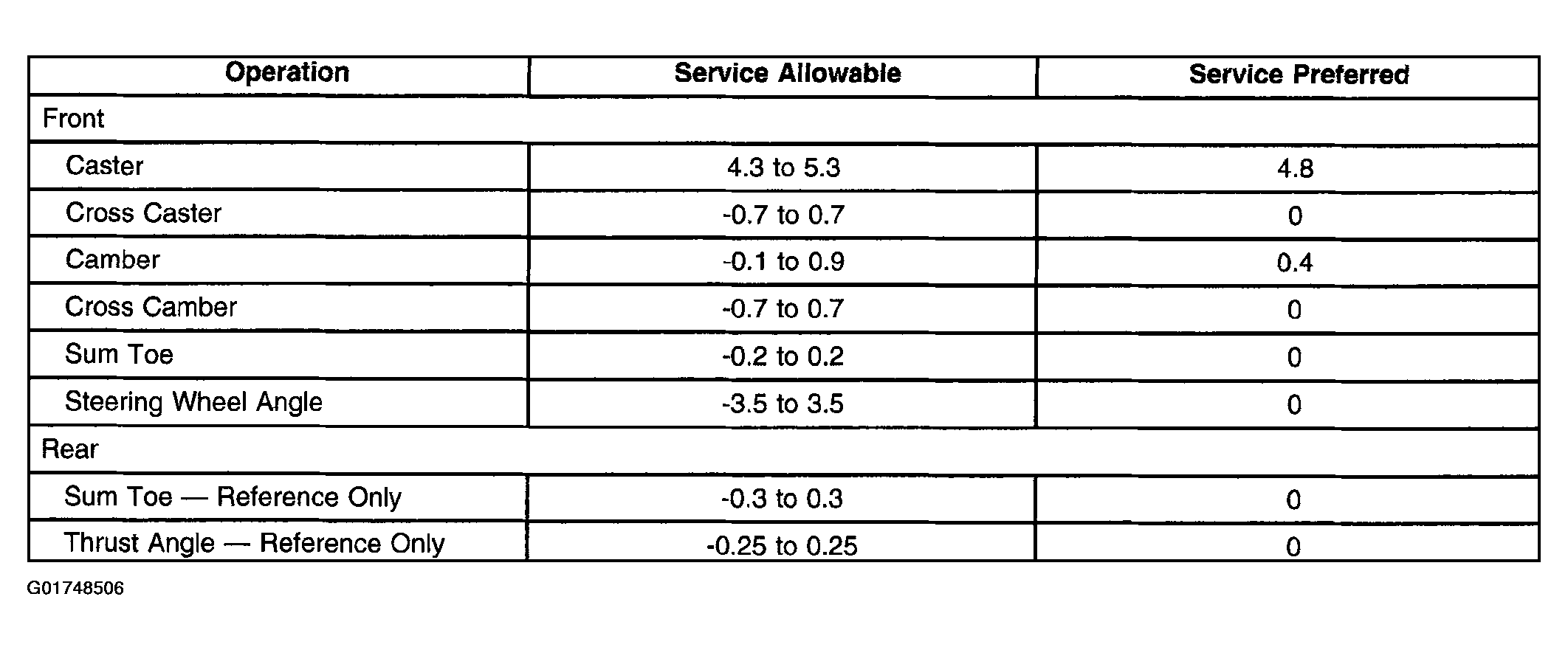

Fig 1: Wheel Alignment Specifications

Courtesy of GENERAL MOTORS CORP.

Fastener Tightening Specification

Application	Specification
	Metric	English
Inner Tie Rod Nut	47 N.m	35 lb ft
Lower Control Arm Nut	100 N.m	47 lb ft
