Connector Views

AUTOMATIC TRANSMISSION INLINE HARNESS CONNECTOR END VIEW

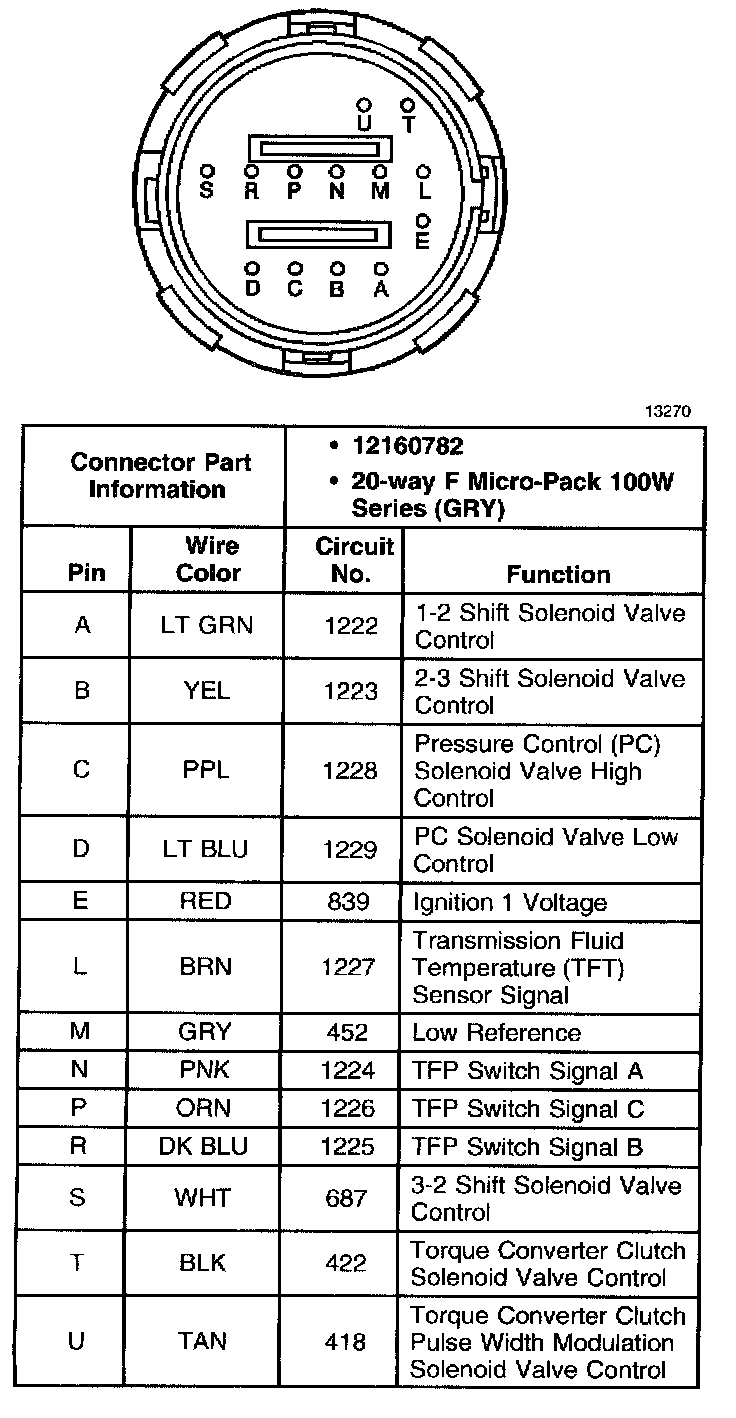

Automatic Transmission Wiring Harness Assembly 20-way Connector, Transmission Side





Automatic Transmission Wiring Harness Assembly 20-way Connector, Engine Side

AUTOMATIC TRANSMISSION INTERNAL CONNECTOR END VIEWS





Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side





1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side





2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side





Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side





3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side





Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side





Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side
