On-Vehicle

Automatic Transaxle - 4T40-E/4T45-E

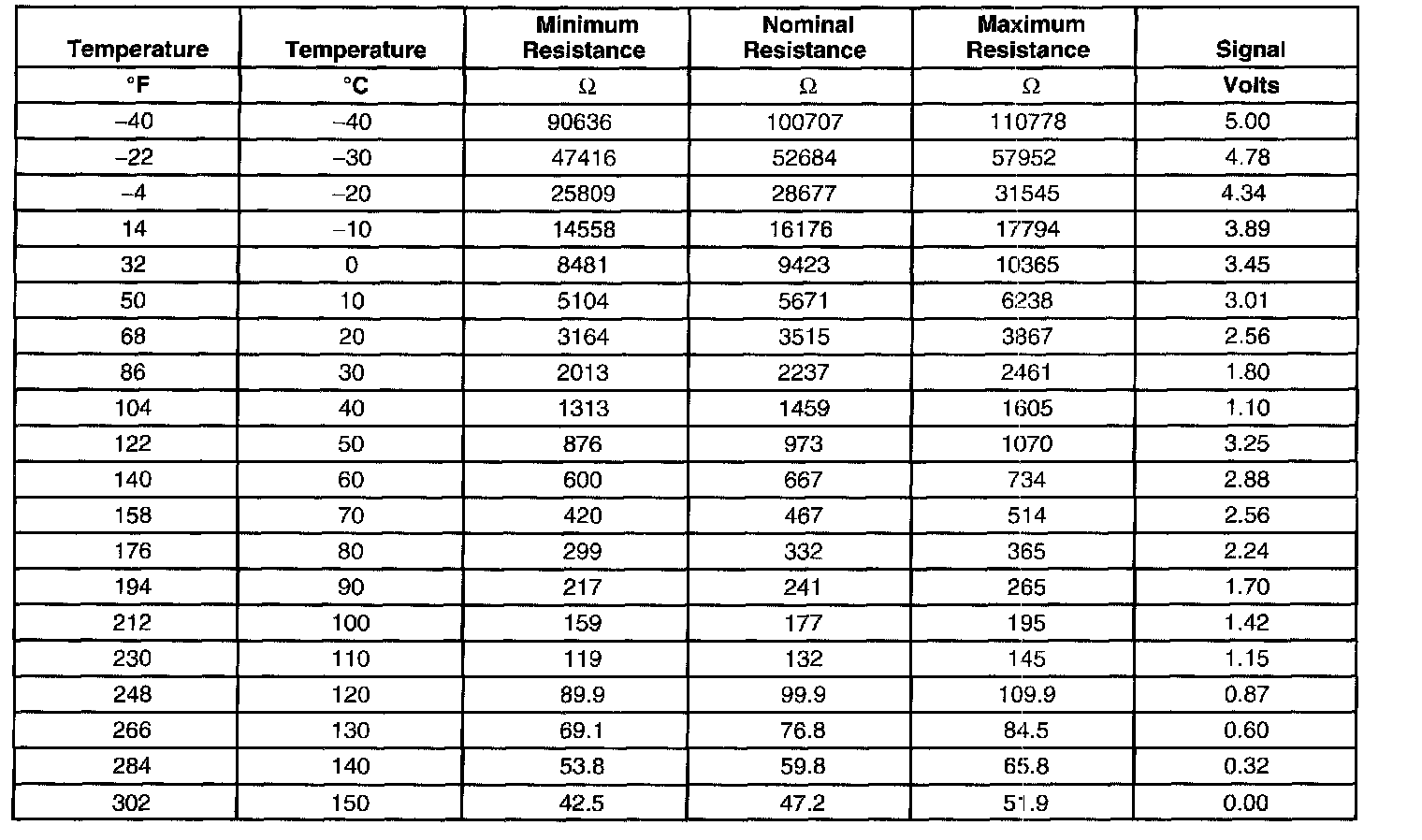

Transmission Fluid Temperature (TFT) Sensor Specifications

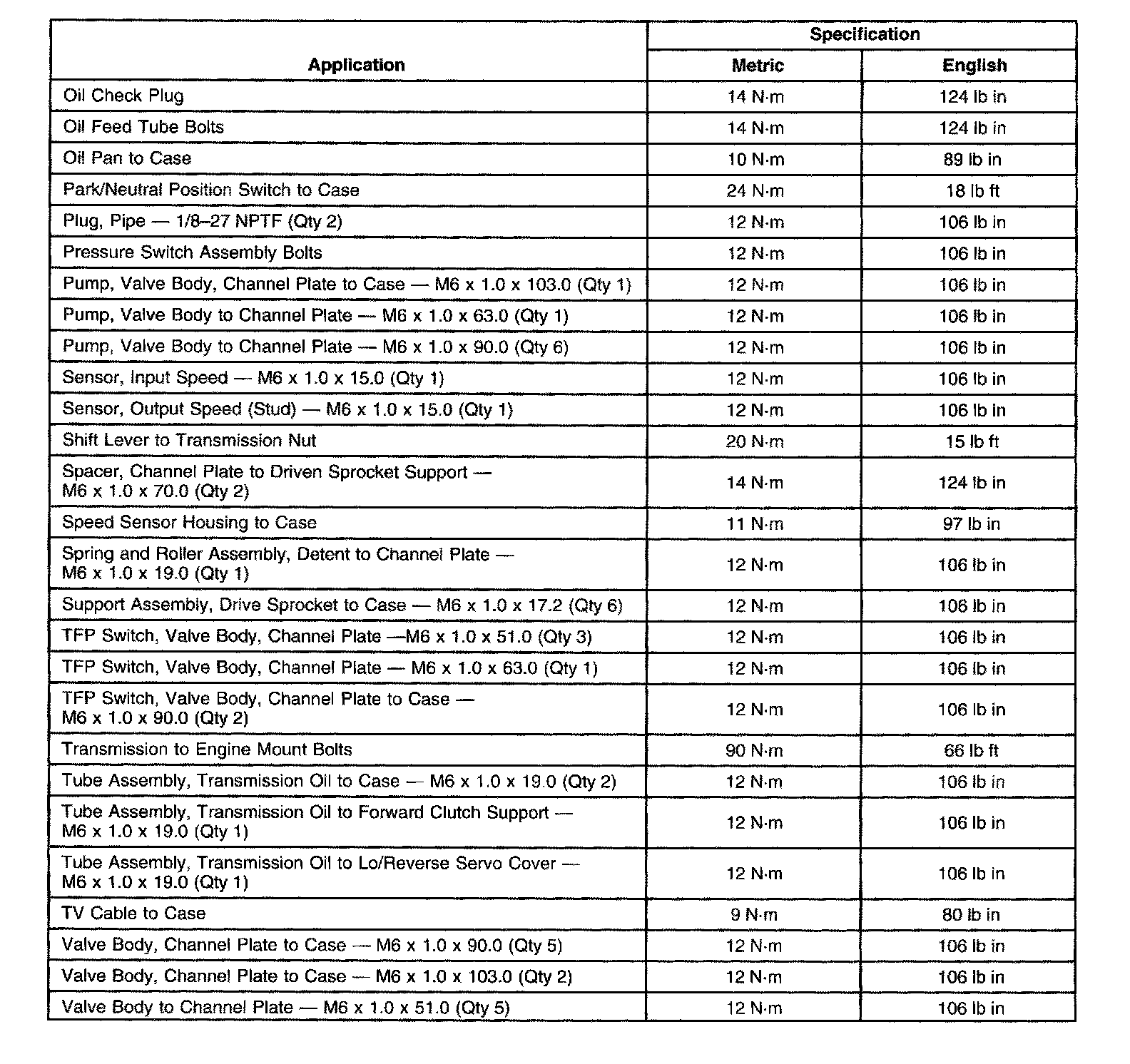

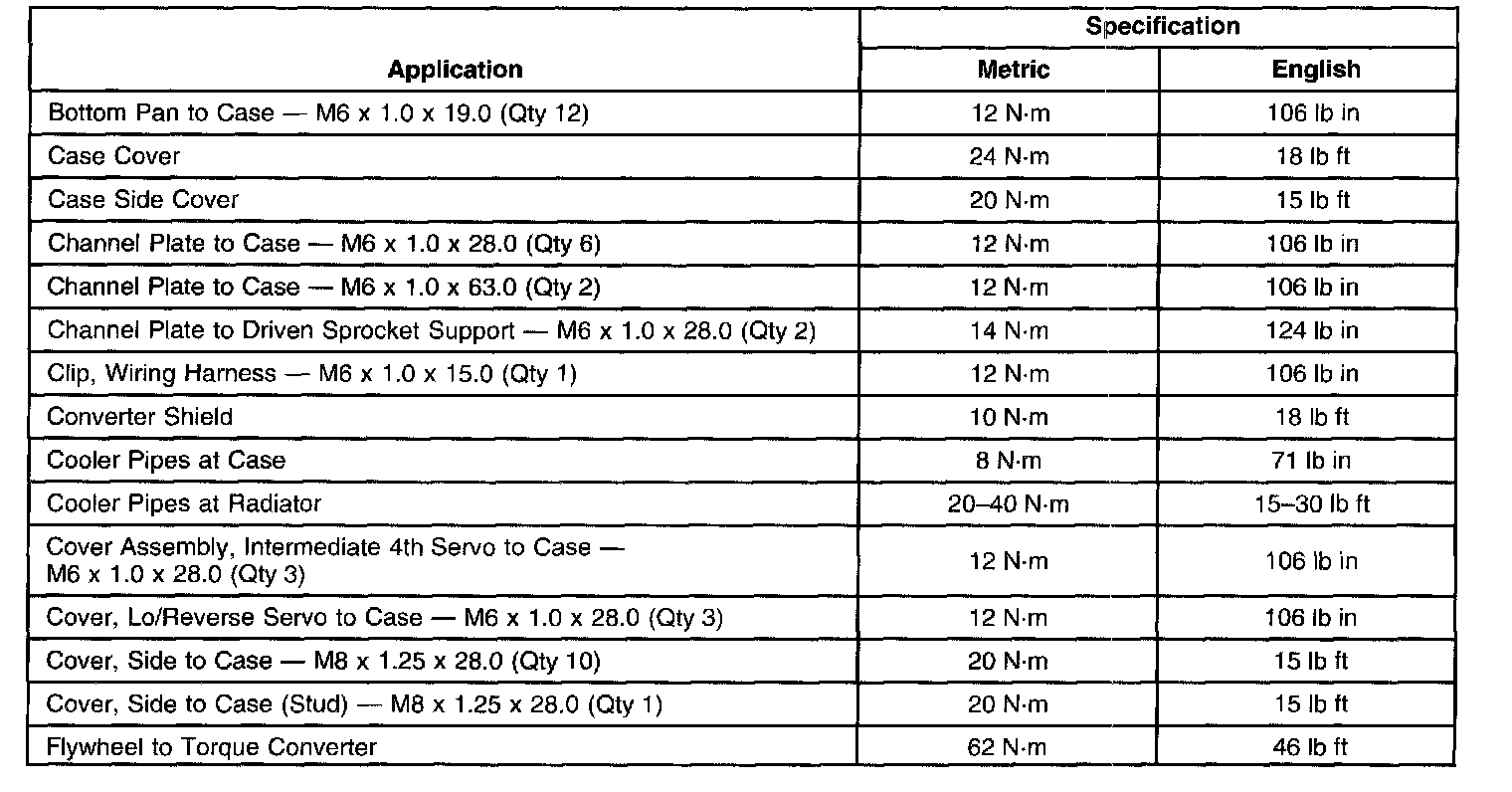

Fastener Tightening Specifications (Unit Repair)

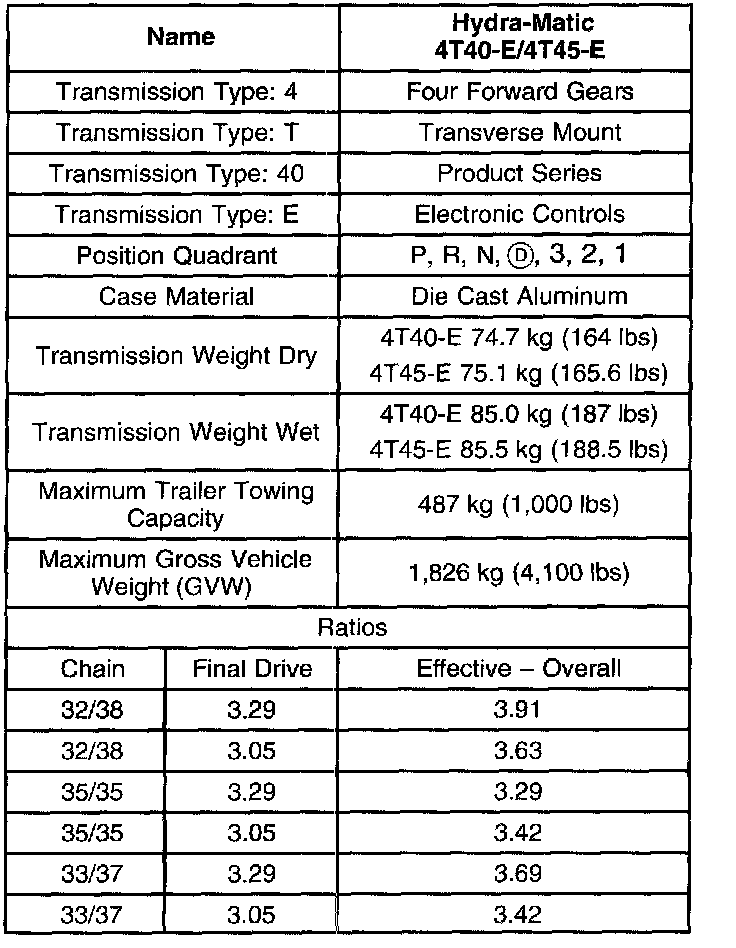

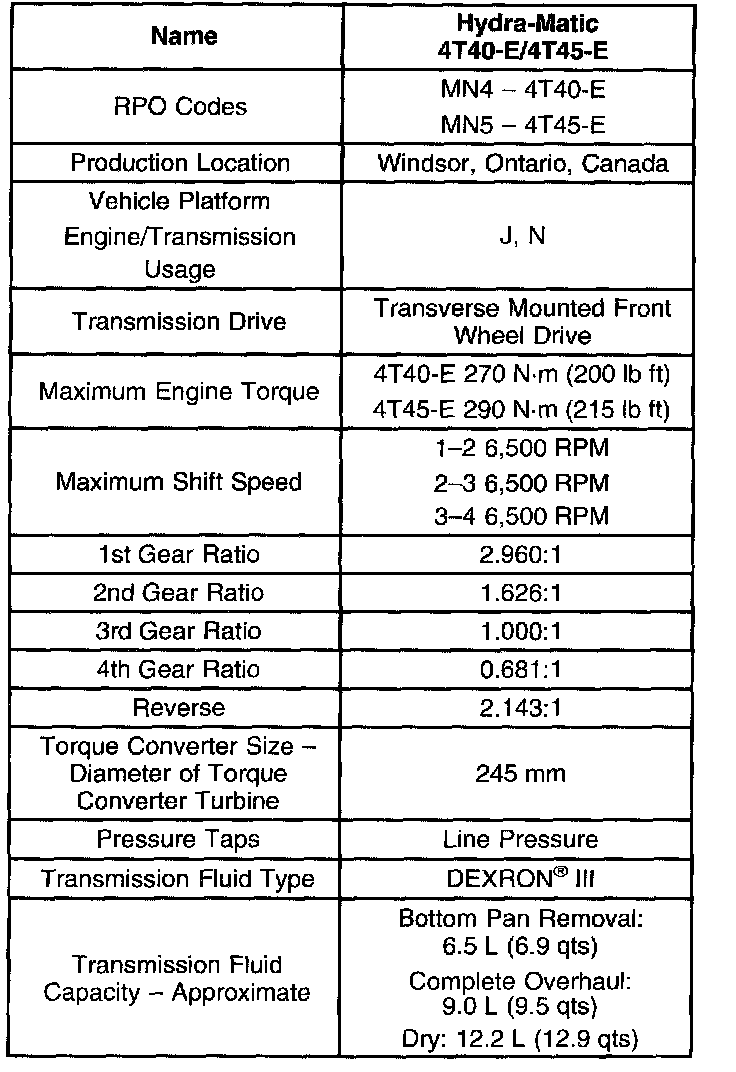

Transmission General Specifications





Fluid Capacity Specifications





Range Reference

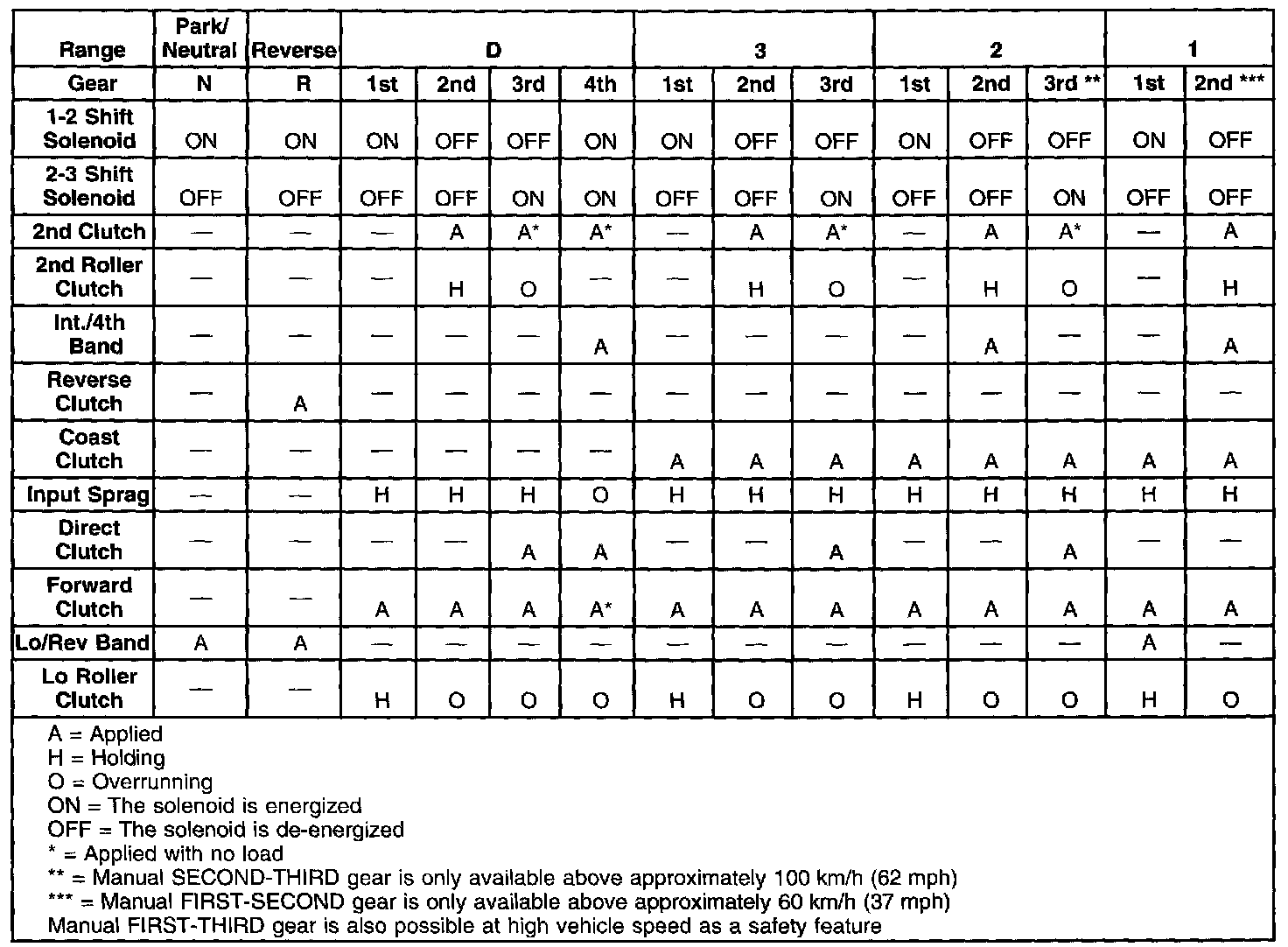

Shift Solenoid Valve State and Gear Ratio





Shift Speed





Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic





Transmission Range Switch Logic





Line Pressure

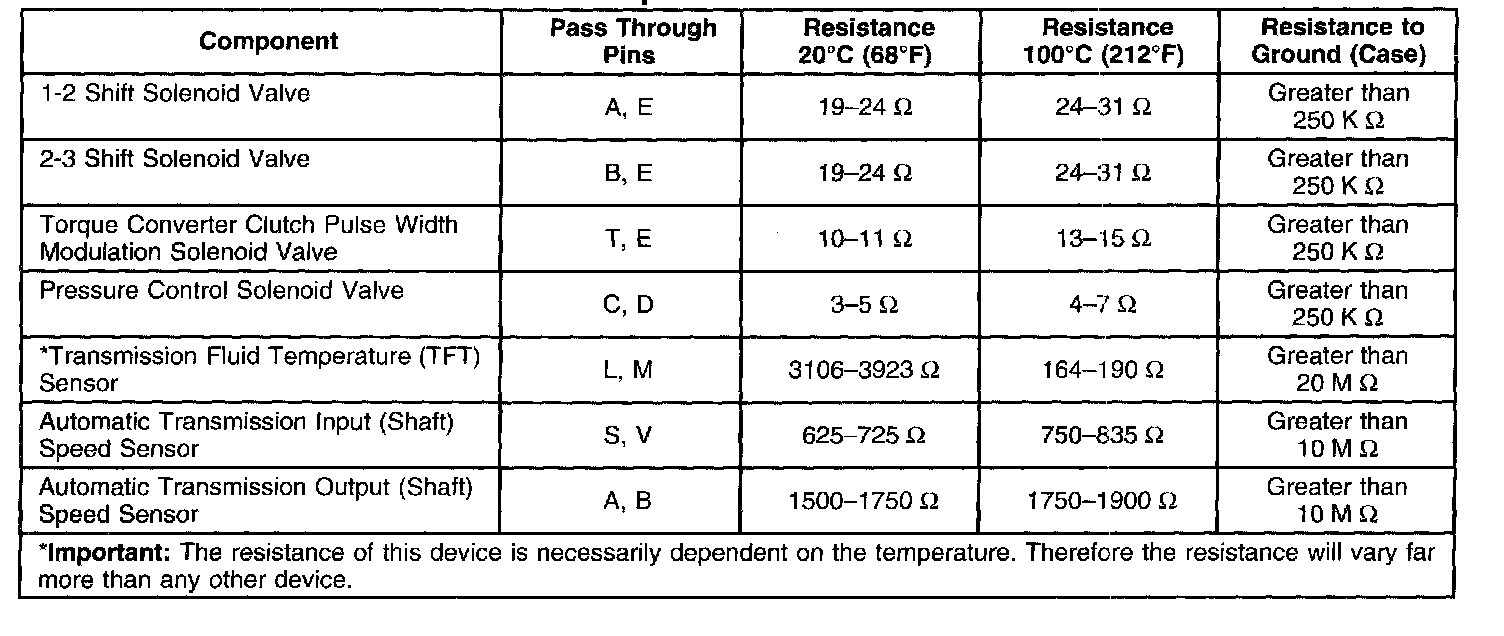

Component Resistance
