Body Control Module: Diagrams

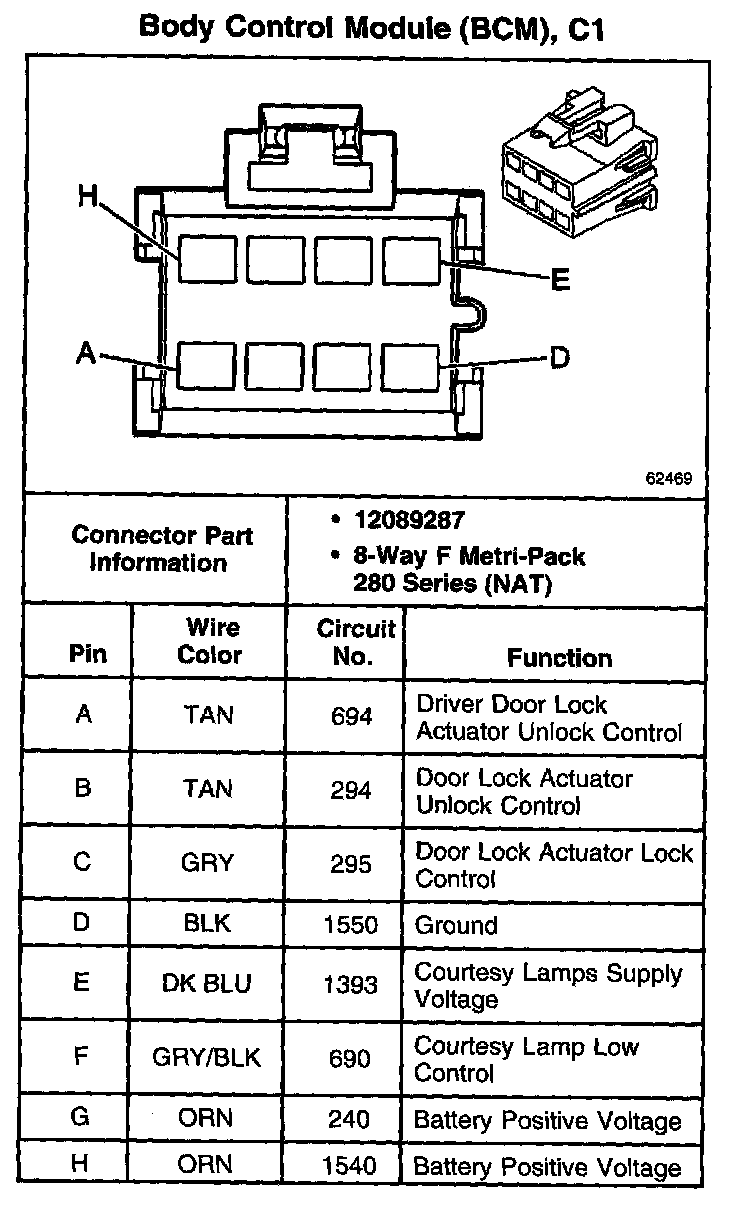

Body Control Module (BCM), C1:

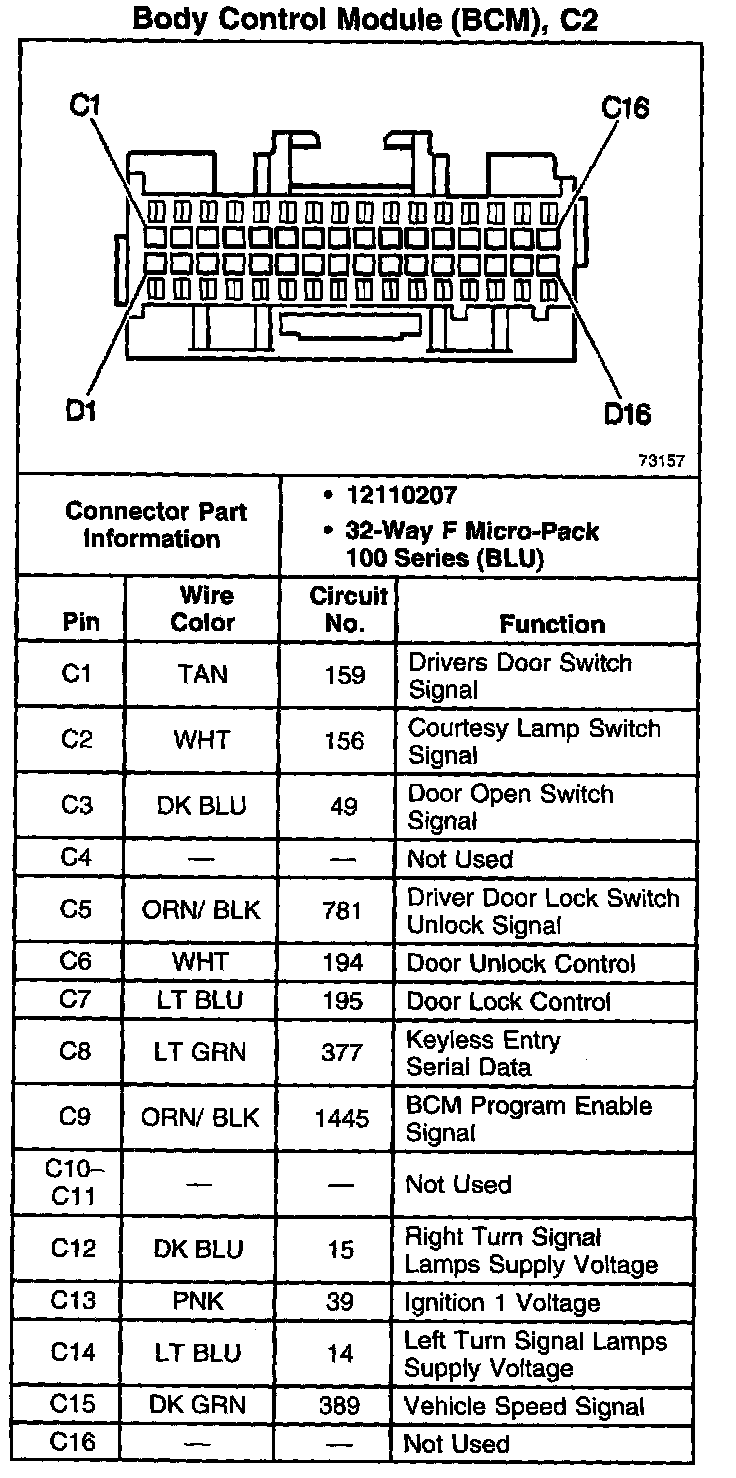

Body Control Module (BCM), C2 Part 1:

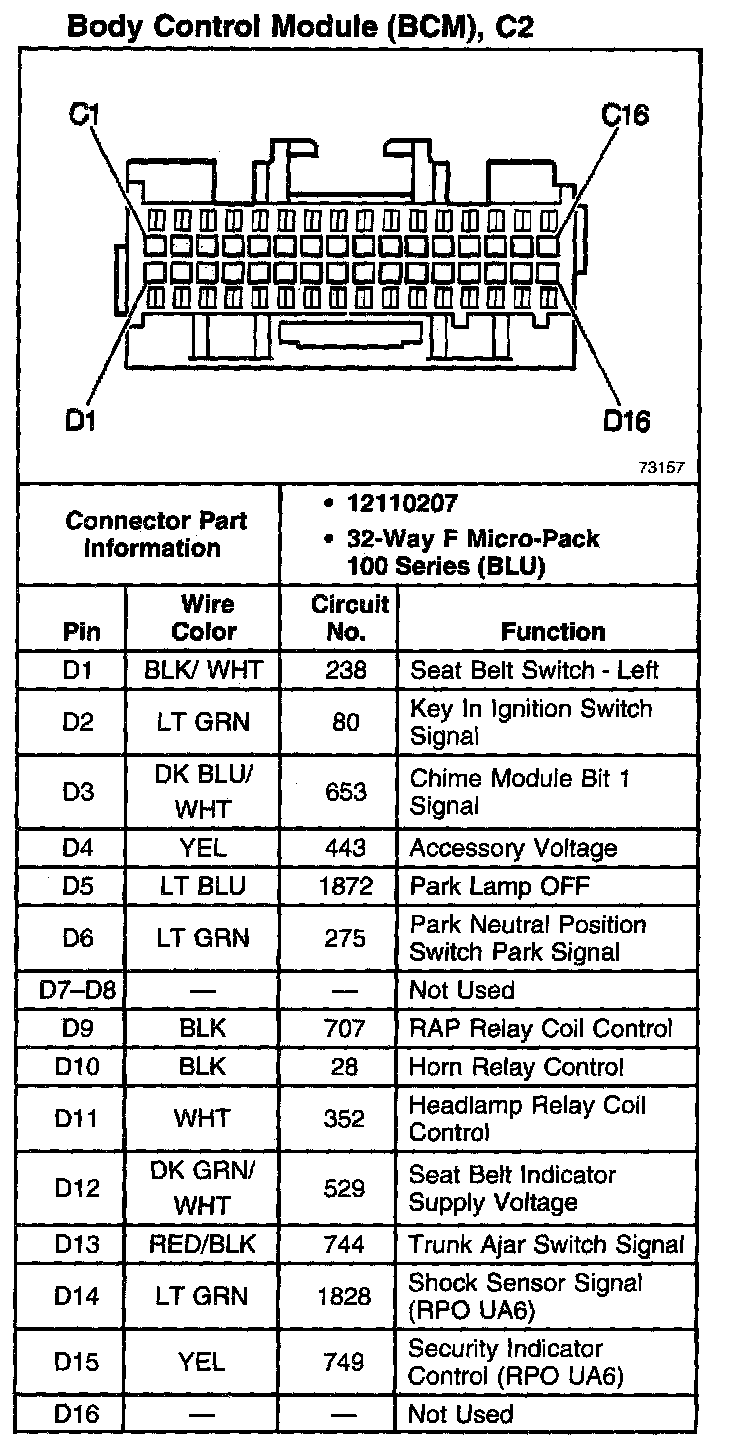

Body Control Module (BCM), C2 Part 2:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
