Control Assembly, HVAC

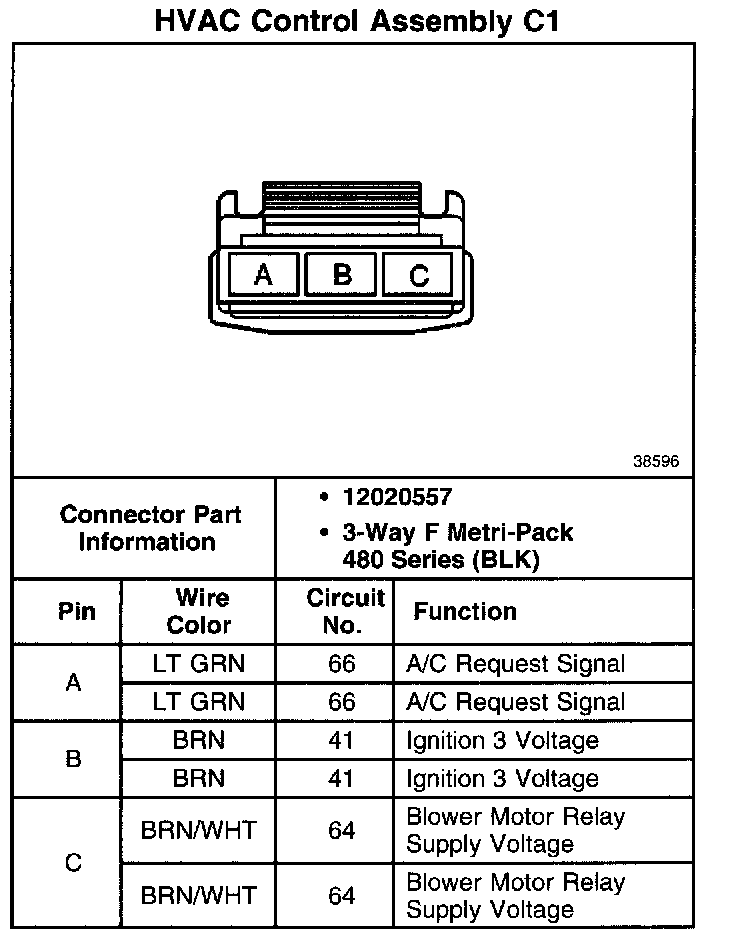

HVAC Control Assembly C1 - HVAC Systems - Manual:

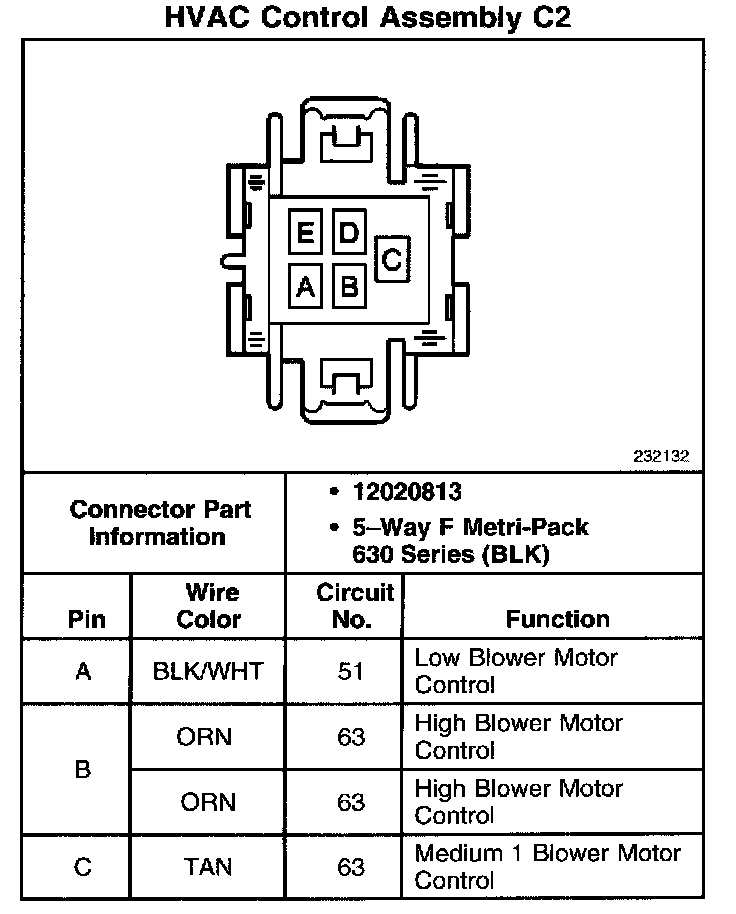

HVAC Control Assembly C2 Part 1 - HVAC Systems - Manual:

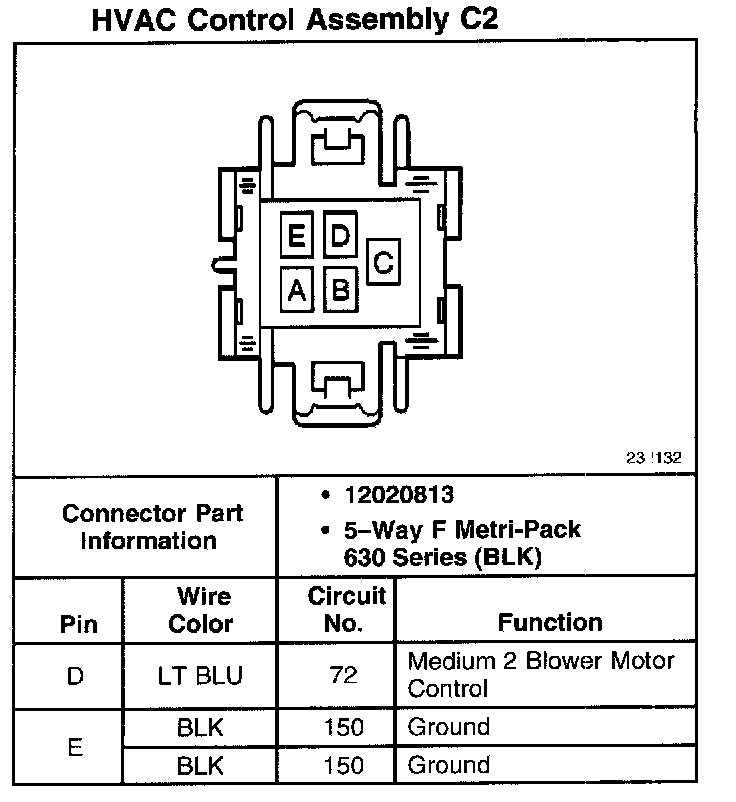

HVAC Control Assembly C2 Part 2 - HVAC Systems - Manual:

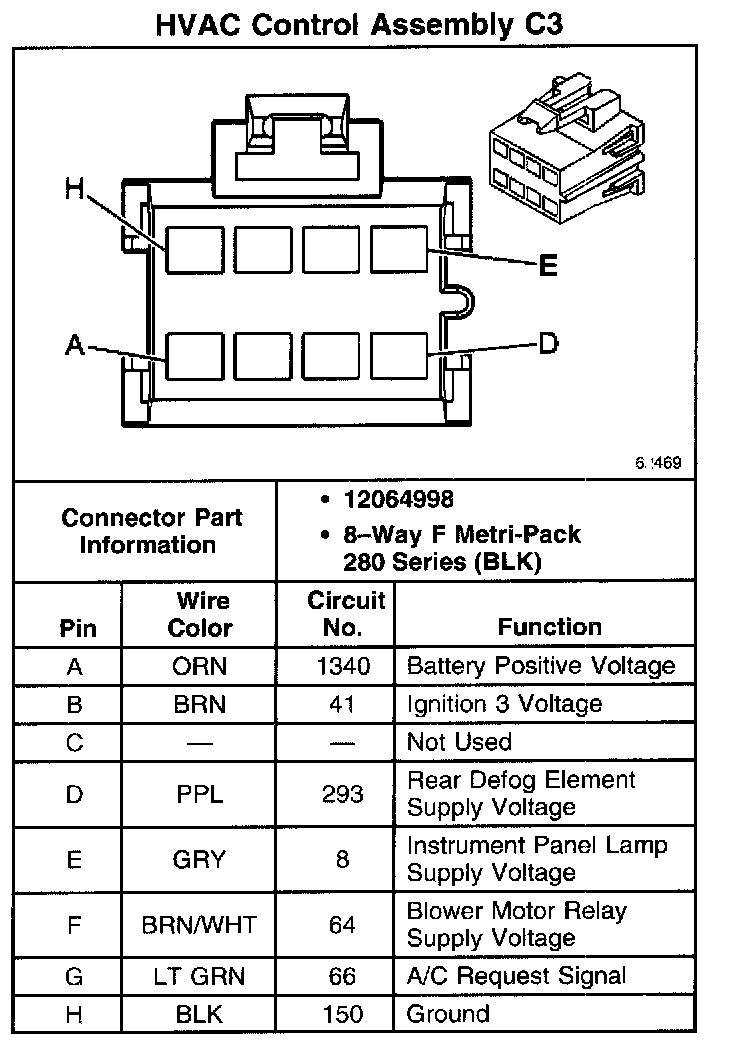

HVAC Control Assembly C3 - HVAC Systems - Manual:
