Controlled/Monitored Subsystem References

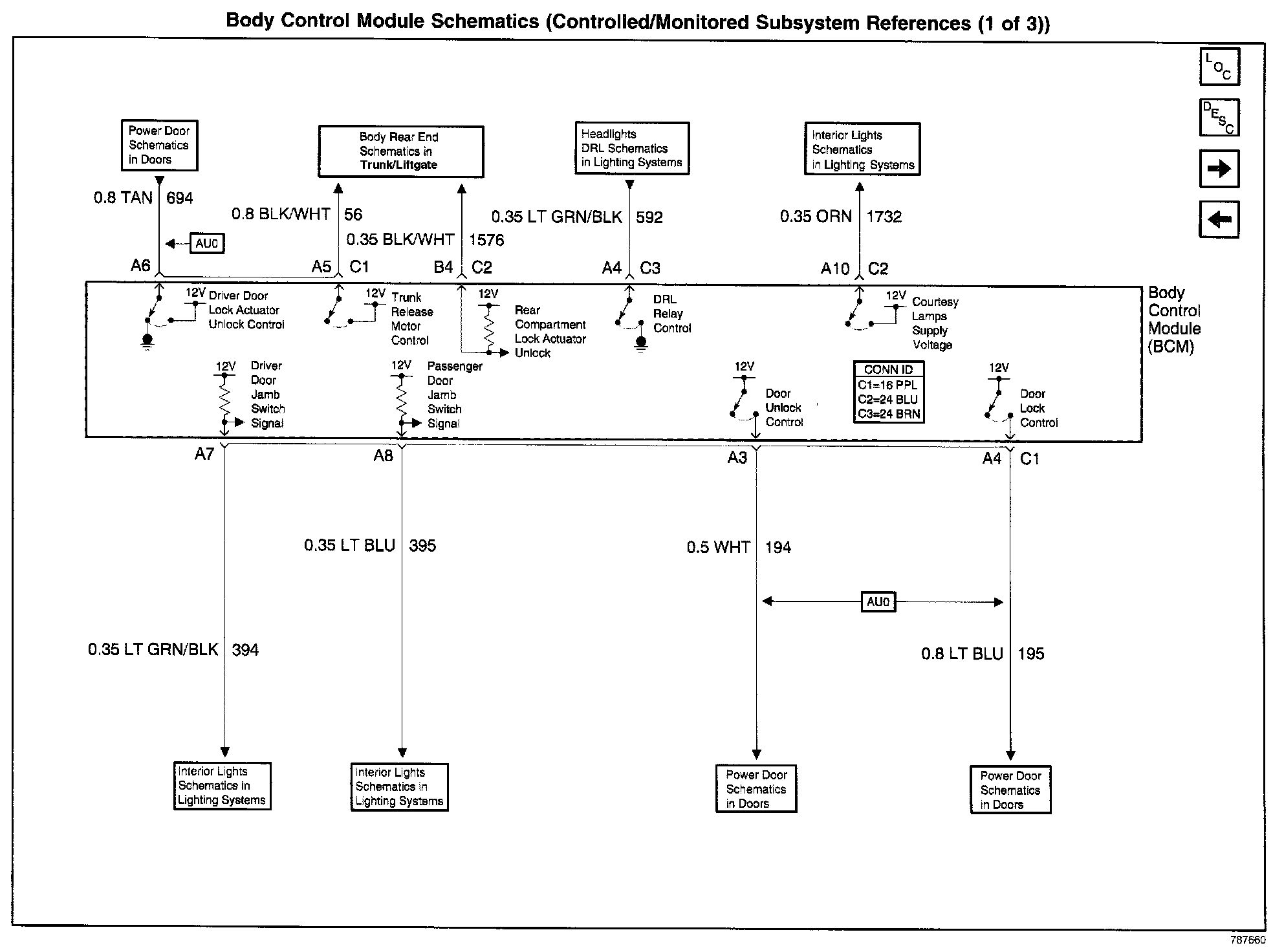

Body Control Module Schematics: Controlled/Monitored Subsystem References Part 1 Of 3:

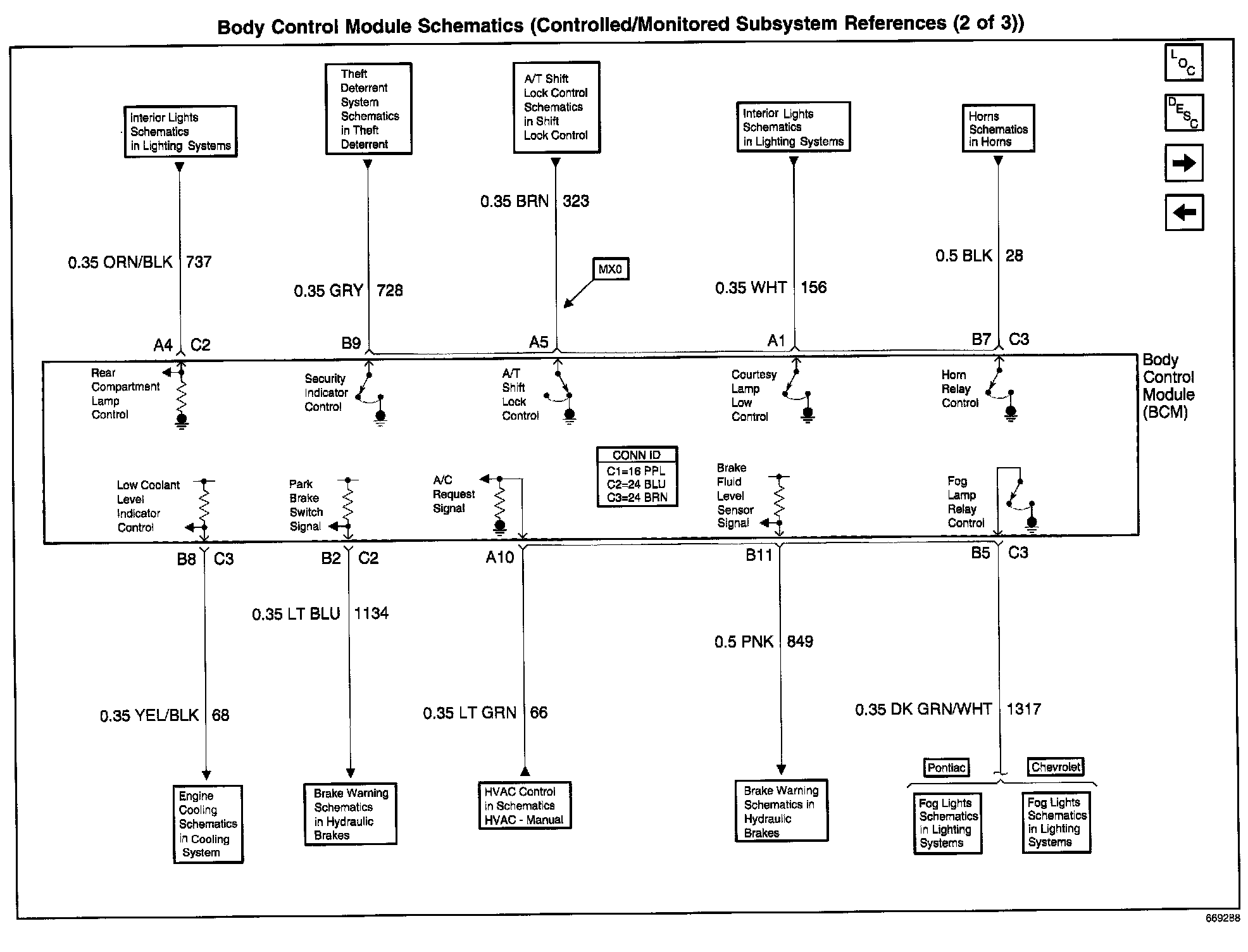

Body Control Module Schematics: Controlled/Monitored Subsystem References Part 2 Of 3:

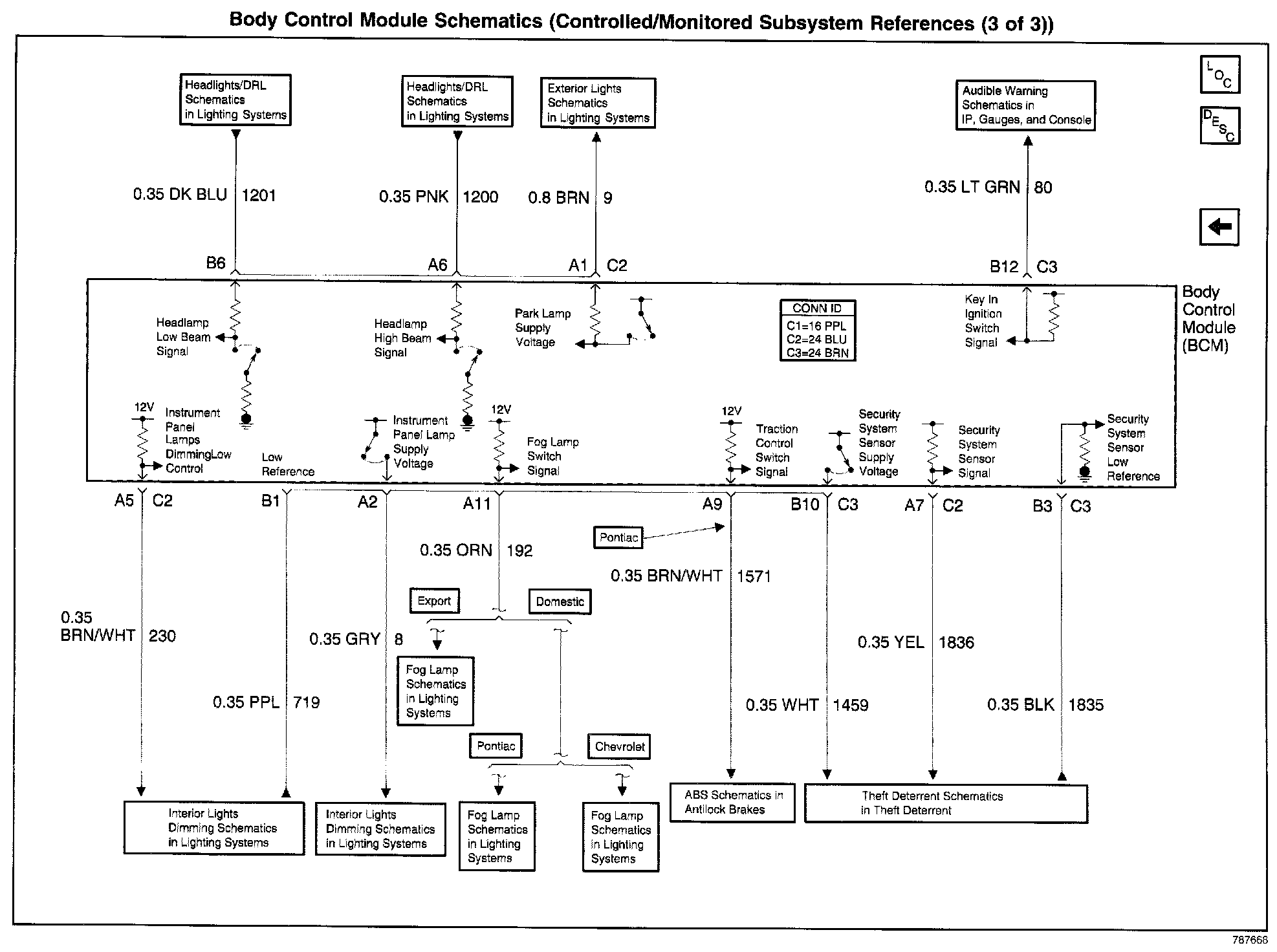

Body Control Module Schematics: Controlled/Monitored Subsystem References Part 3 Of 3:

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application. RPO Codes
