On-Vehicle

Specifications

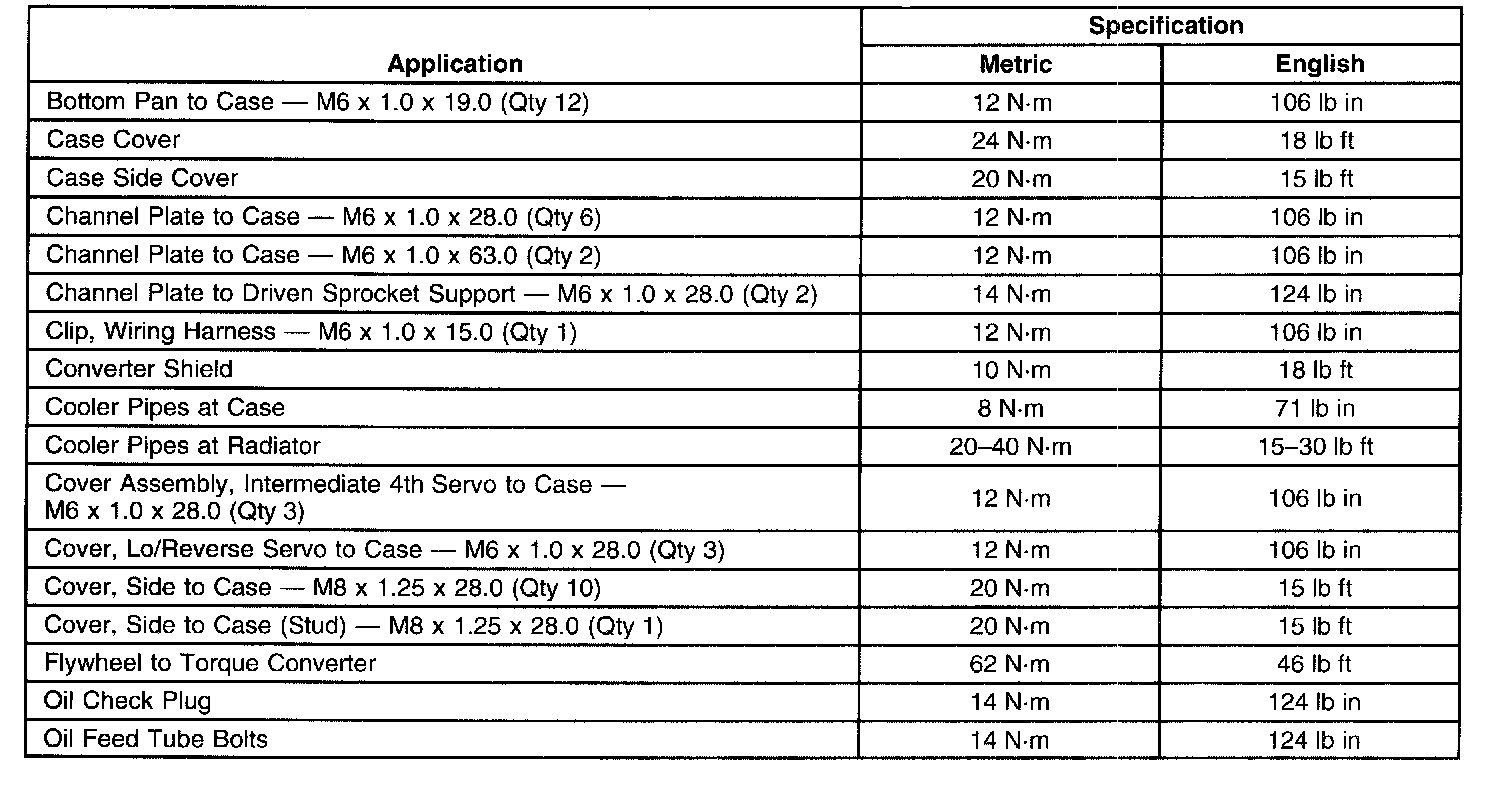

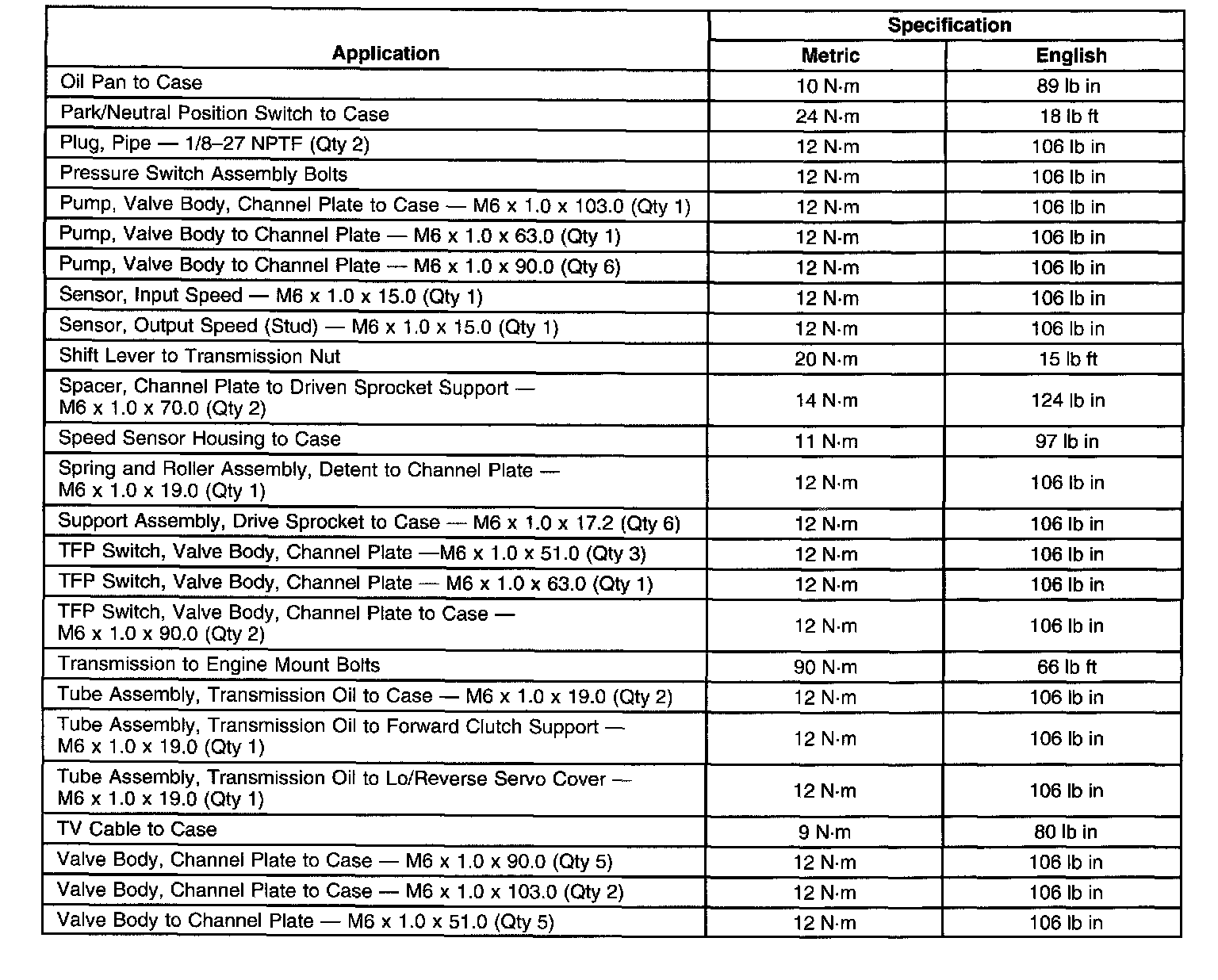

Fastener Tightening Specifications (Unit Repair)

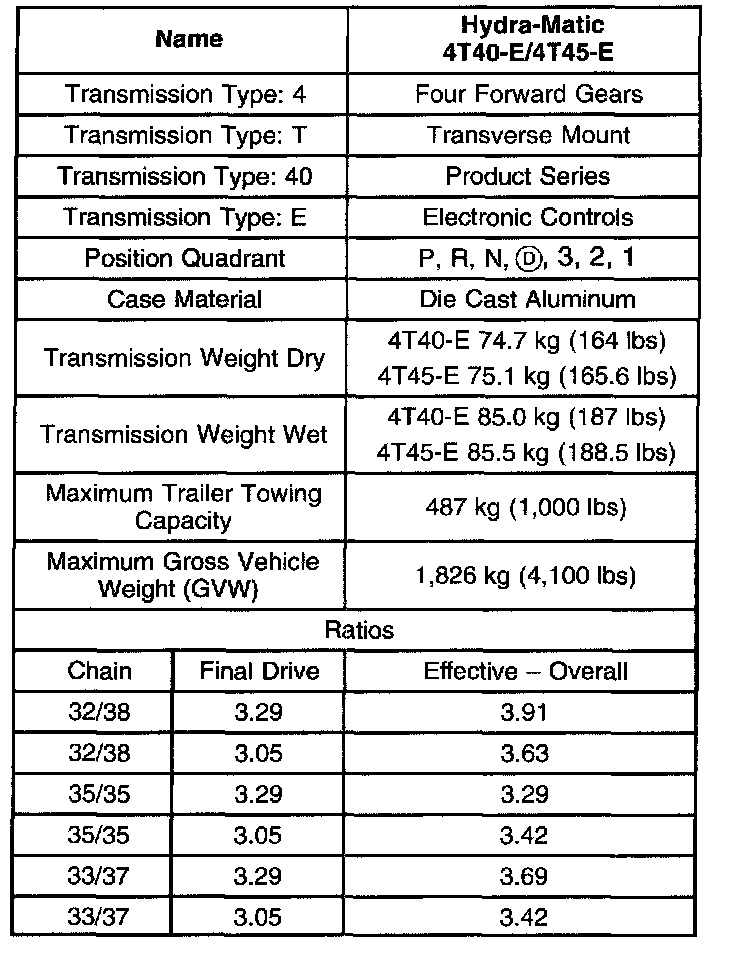

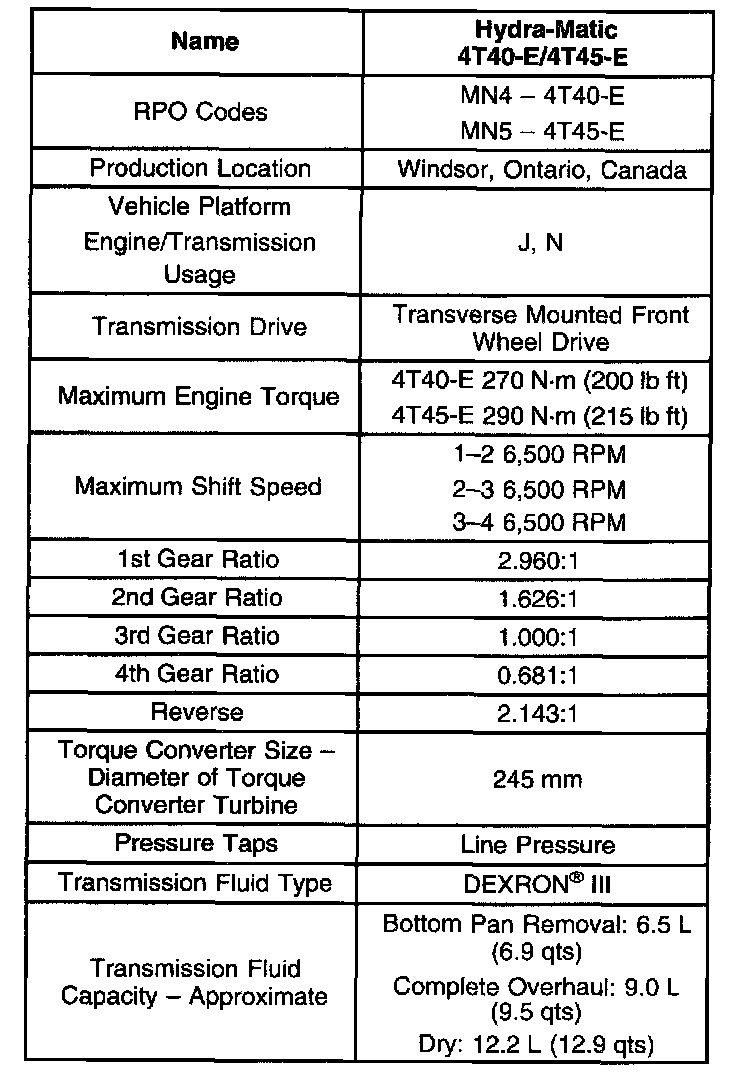

Transmission General Specifications

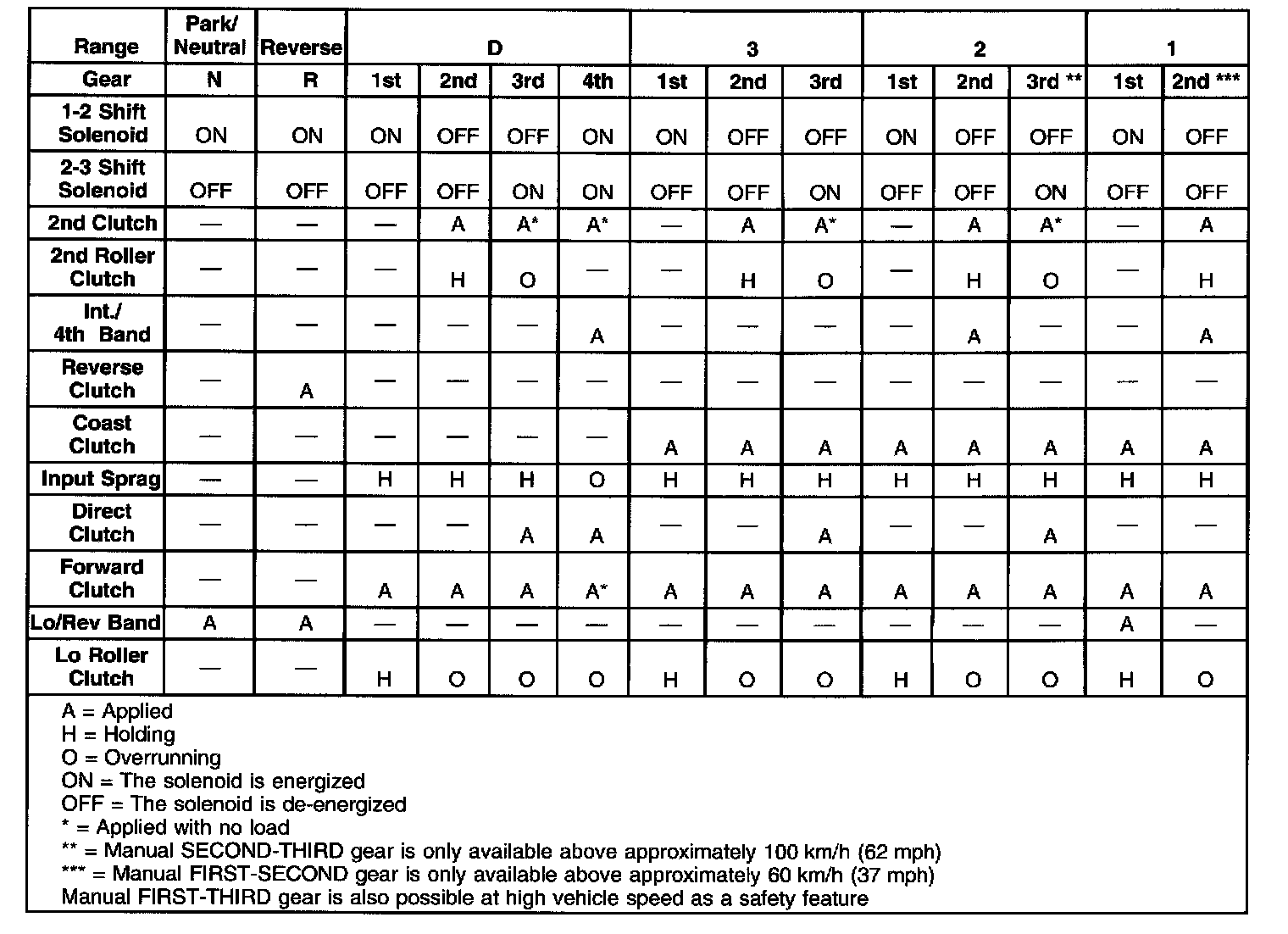

Range Reference

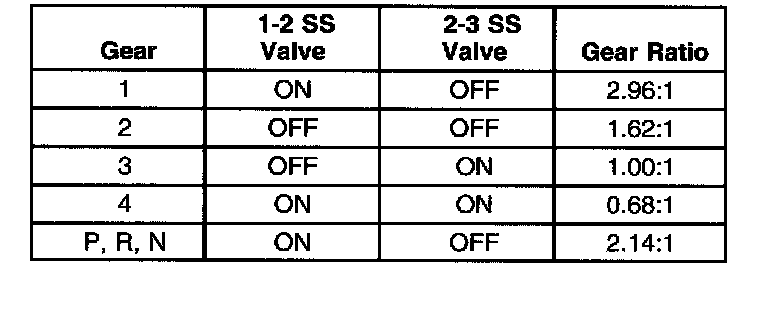

Shift Solenoid Valve State and Gear Ratio

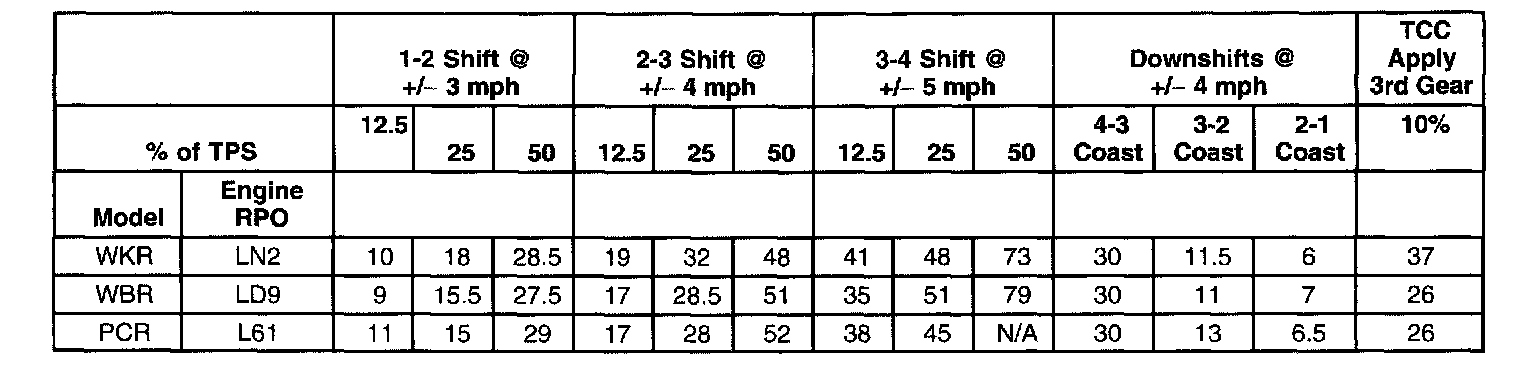

Shift Speed
