Cellular Communication Connector End Views

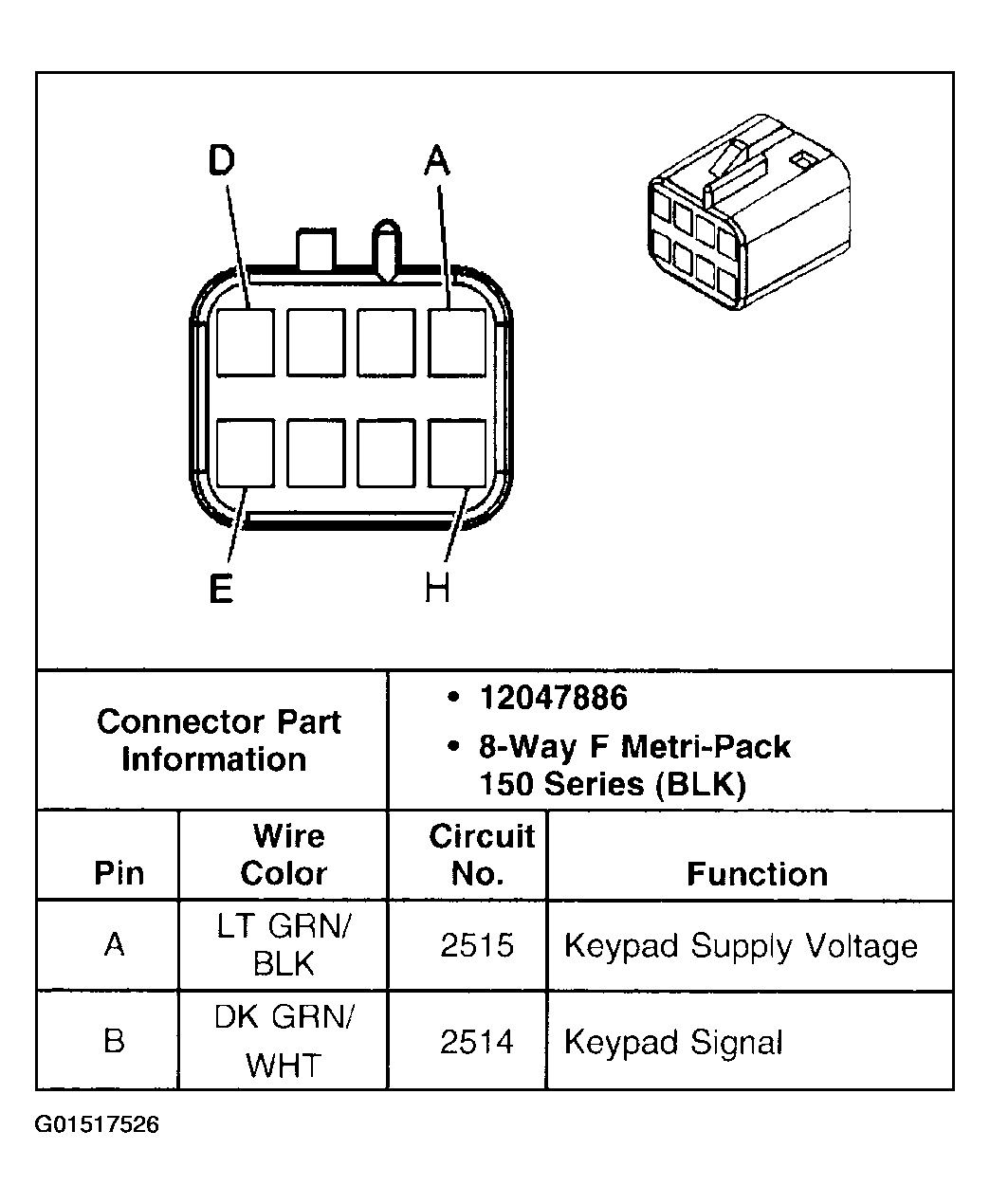

Fig 1: Identifying OnStar® Button Assembly (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying OnStar® Button Assembly (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

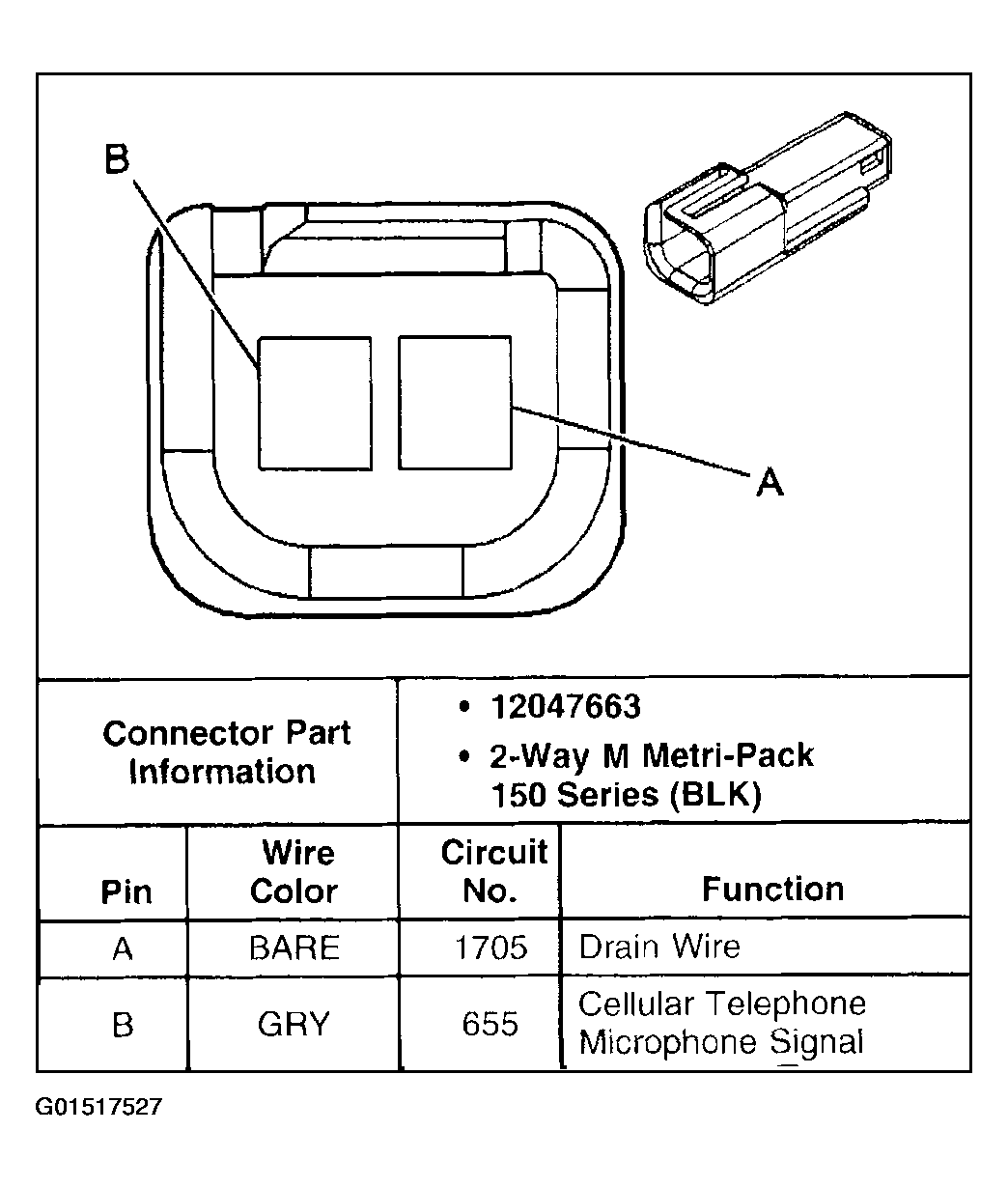

Fig 3: Identifying OnStar® Microphone

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Vehicle Communication Interface Module (VCIM) - C1

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Vehicle Communication Interface Module (VCIM) - C2

Courtesy of GENERAL MOTORS CORP.
