Installation Procedure

  1. Reach your hand through the access opening in order to install the OnStar® button assembly (2) and connect the electrical connectors (1).
  2. Install the overhead console door (3). Install the screws securing the overhead console door.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

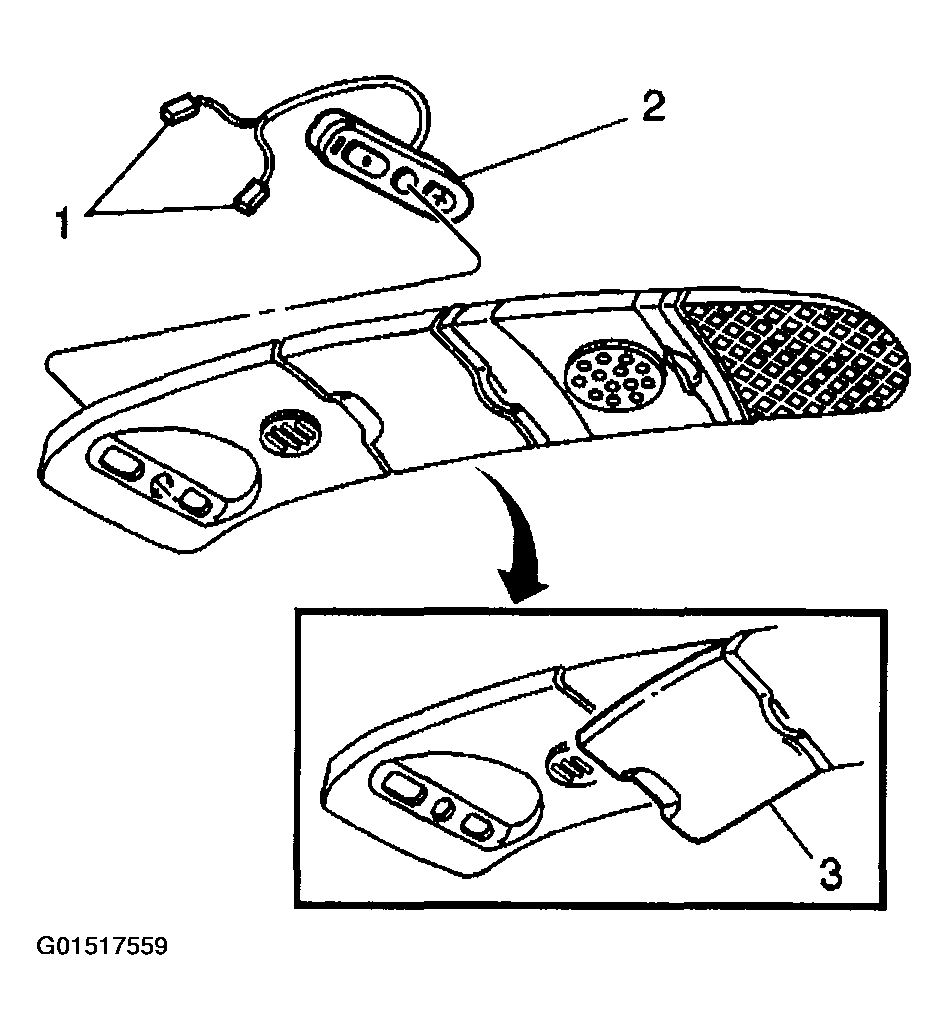

    Fig 1: Installing Overhead Console Door And Connector
    G01517559Courtesy of GENERAL MOTORS CORP.
