Entertainment Connector End Views

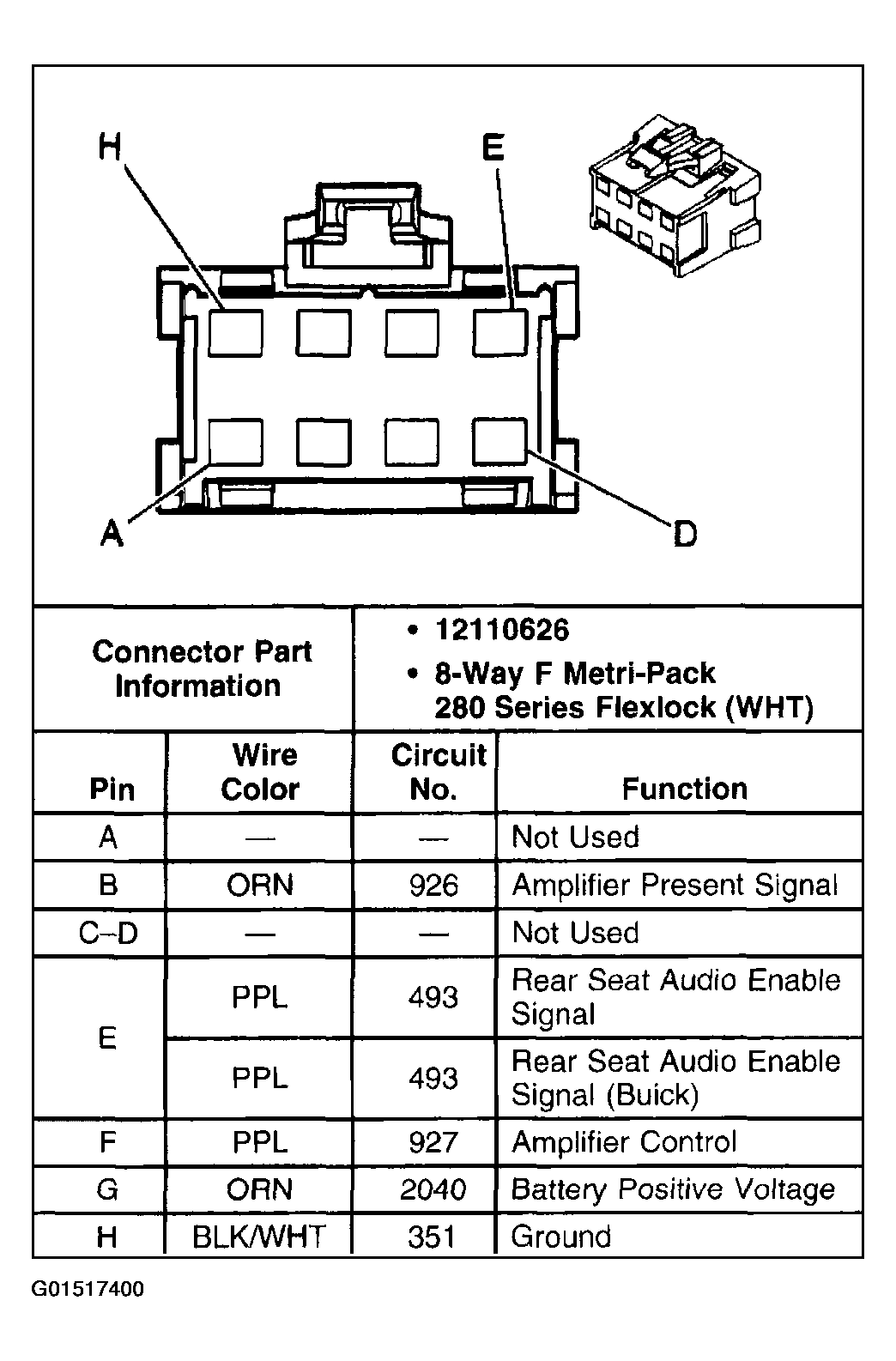

Fig 1: Identifying Audio Amplifier C1 Connector Terminals

G01517400

Courtesy of GENERAL MOTORS CORP.

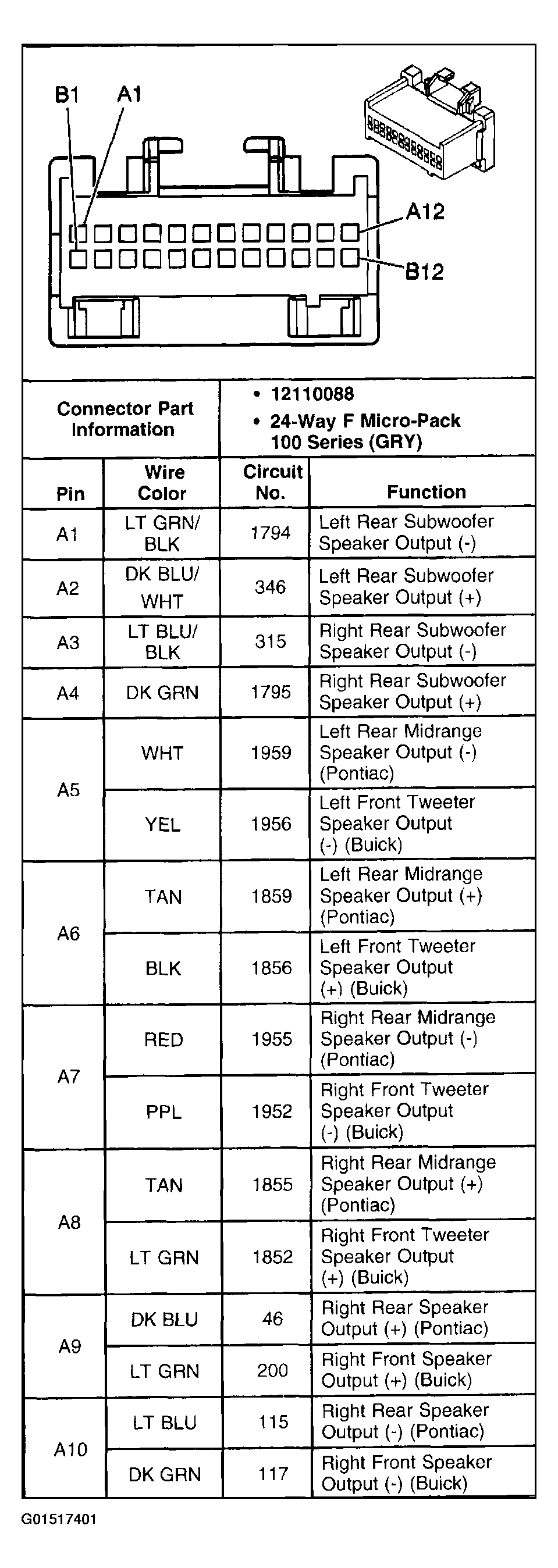

Fig 2: Identifying Audio Amplifier C2 Connector Terminals (1 Of 3)

G01517401

Courtesy of GENERAL MOTORS CORP.

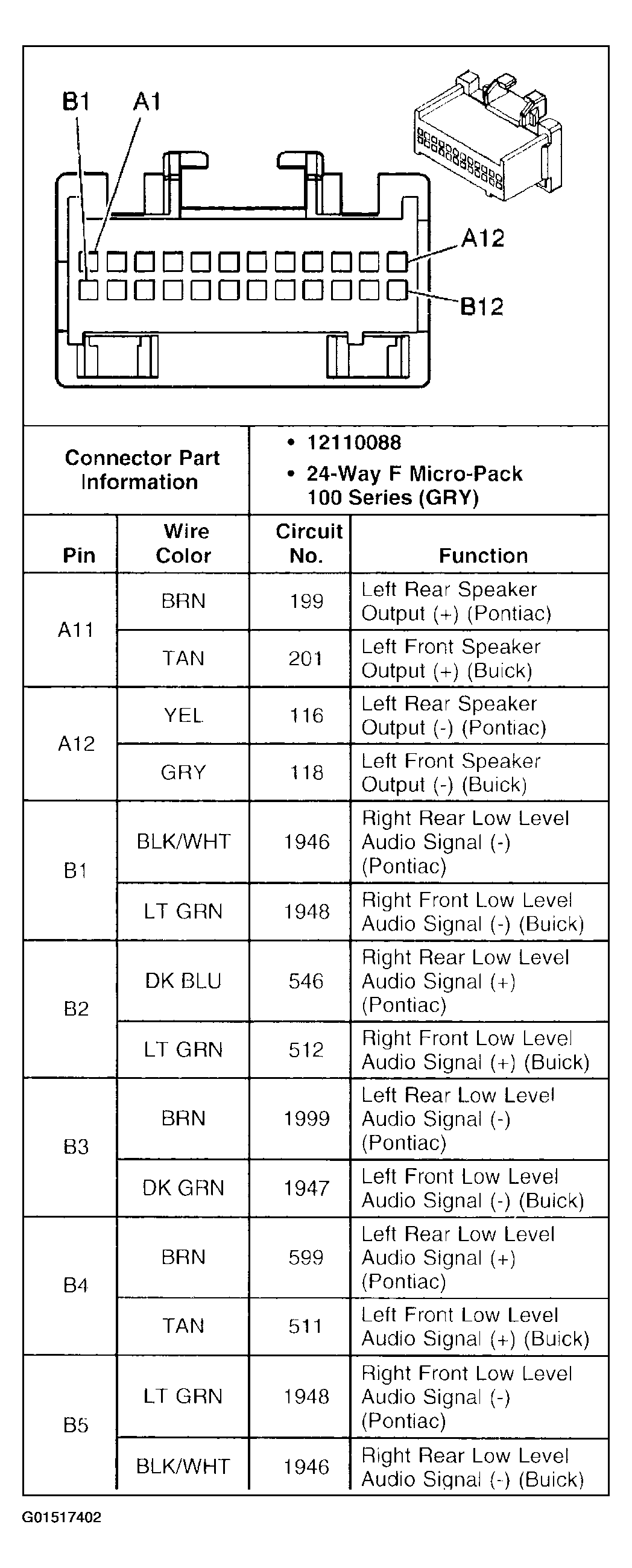

Fig 3: Identifying Audio Amplifier C2 Connector Terminals (2 Of 3)

G01517402

Courtesy of GENERAL MOTORS CORP.

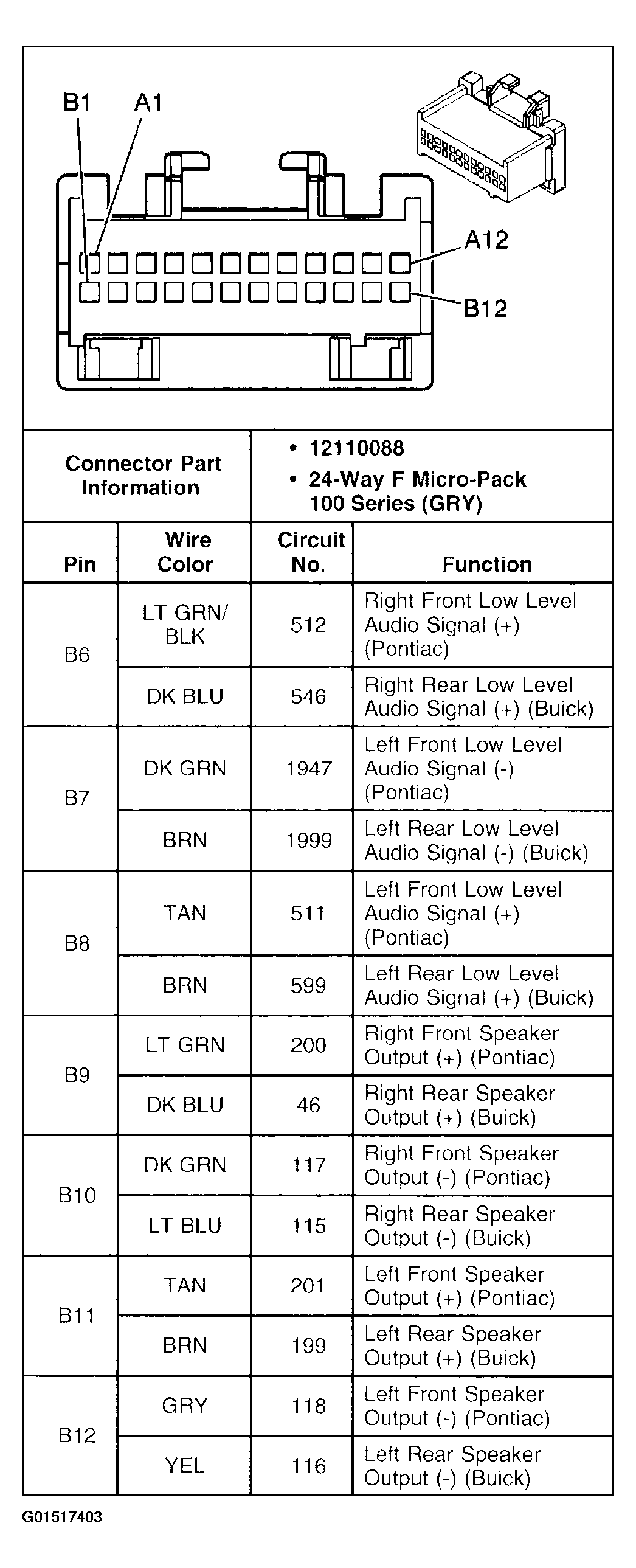

Fig 4: Identifying Audio Amplifier C2 Connector Terminals (3 Of 3)

G01517403

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Digital Radio Receiver (U2K) Connector Terminals

G01517404

Courtesy of GENERAL MOTORS CORP.

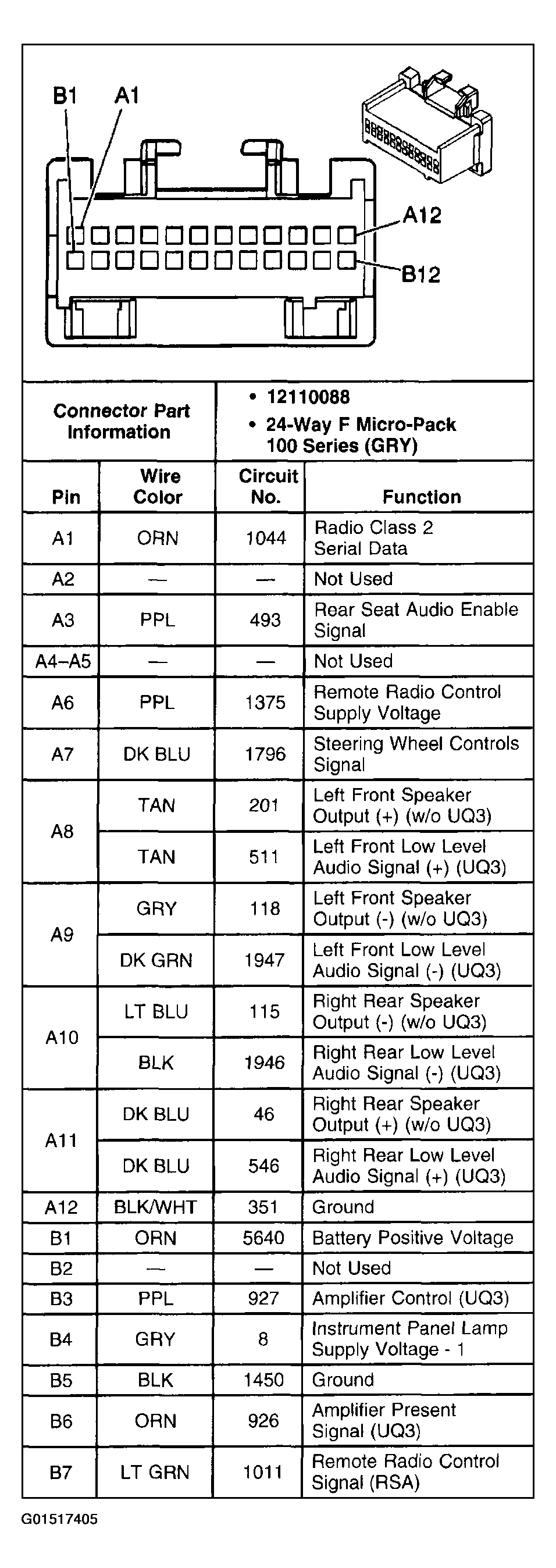

Fig 6: Identifying Radio C1 Connector Terminals (1 Of 2)

G01517405

Courtesy of GENERAL MOTORS CORP.

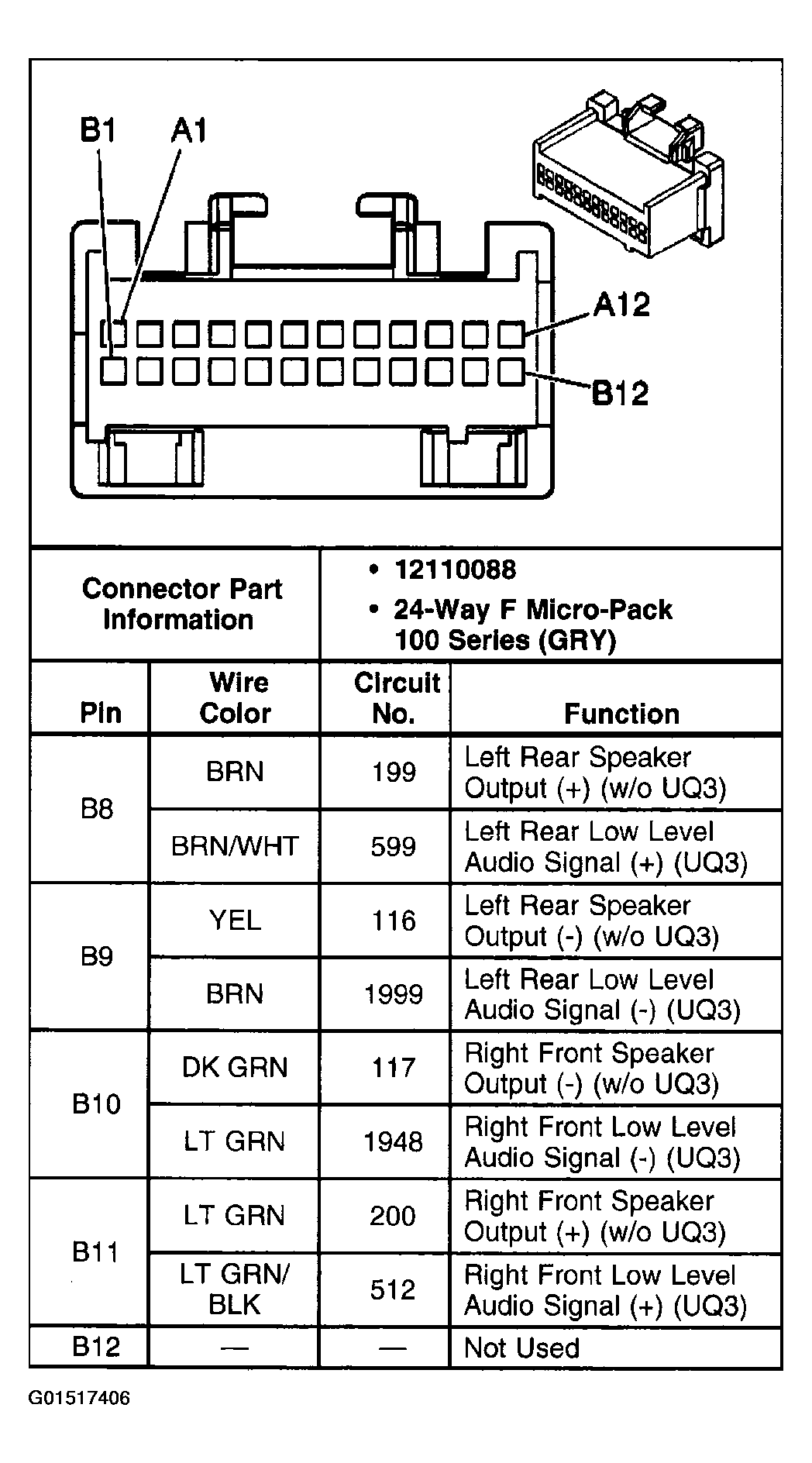

Fig 7: Identifying Radio C1 Connector Terminals (2 Of 2)

G01517406

Courtesy of GENERAL MOTORS CORP.

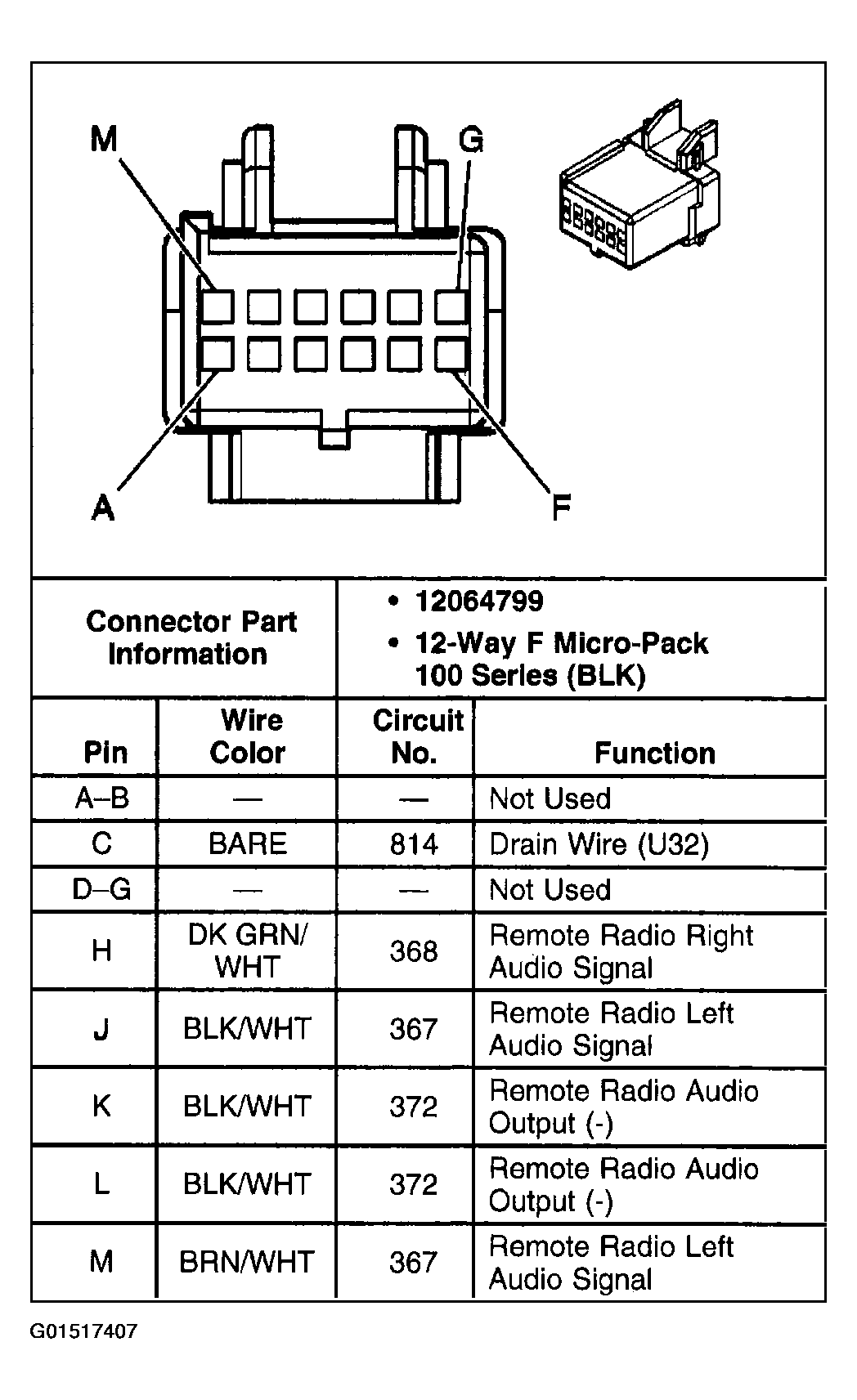

Fig 8: Identifying Radio C2 Connector Terminals

G01517407

Courtesy of GENERAL MOTORS CORP.

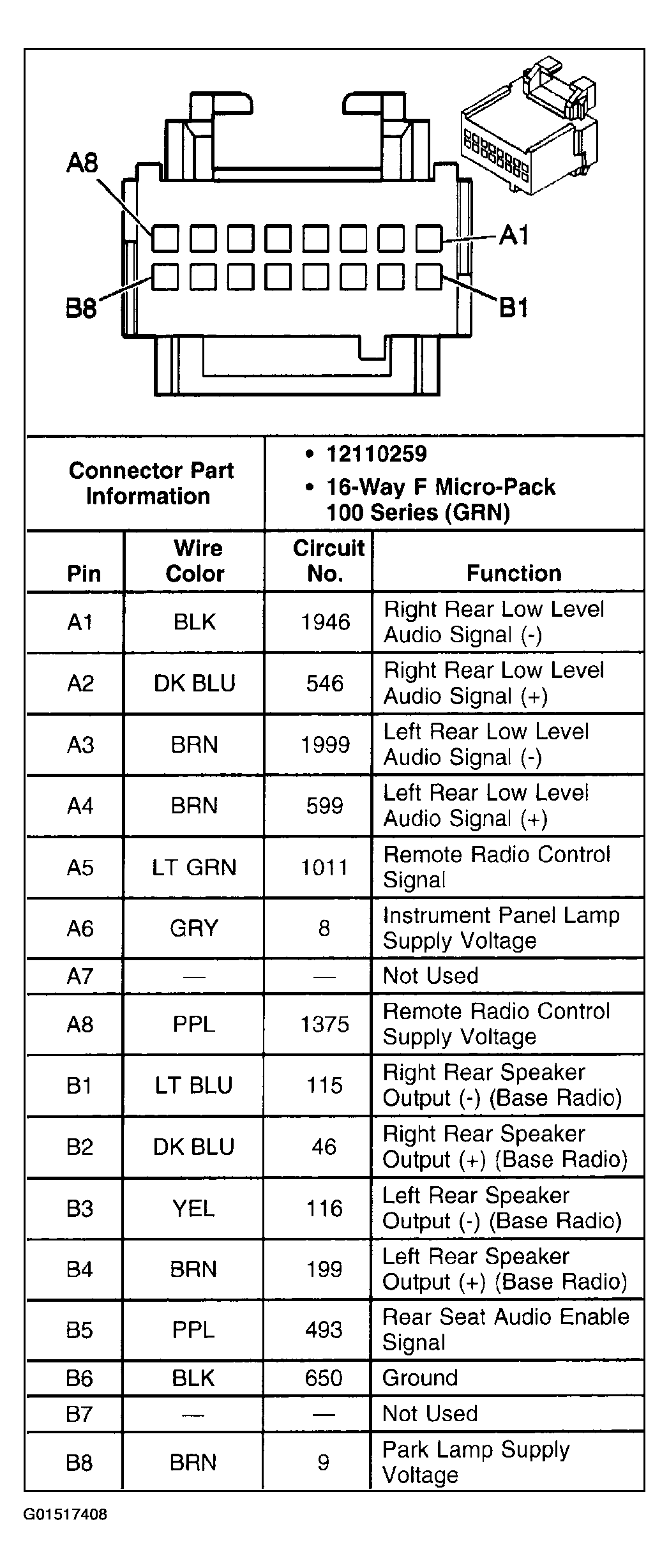

Fig 9: Identifying Rear Seat Audio Control Connector Terminals

G01517408

Courtesy of GENERAL MOTORS CORP.

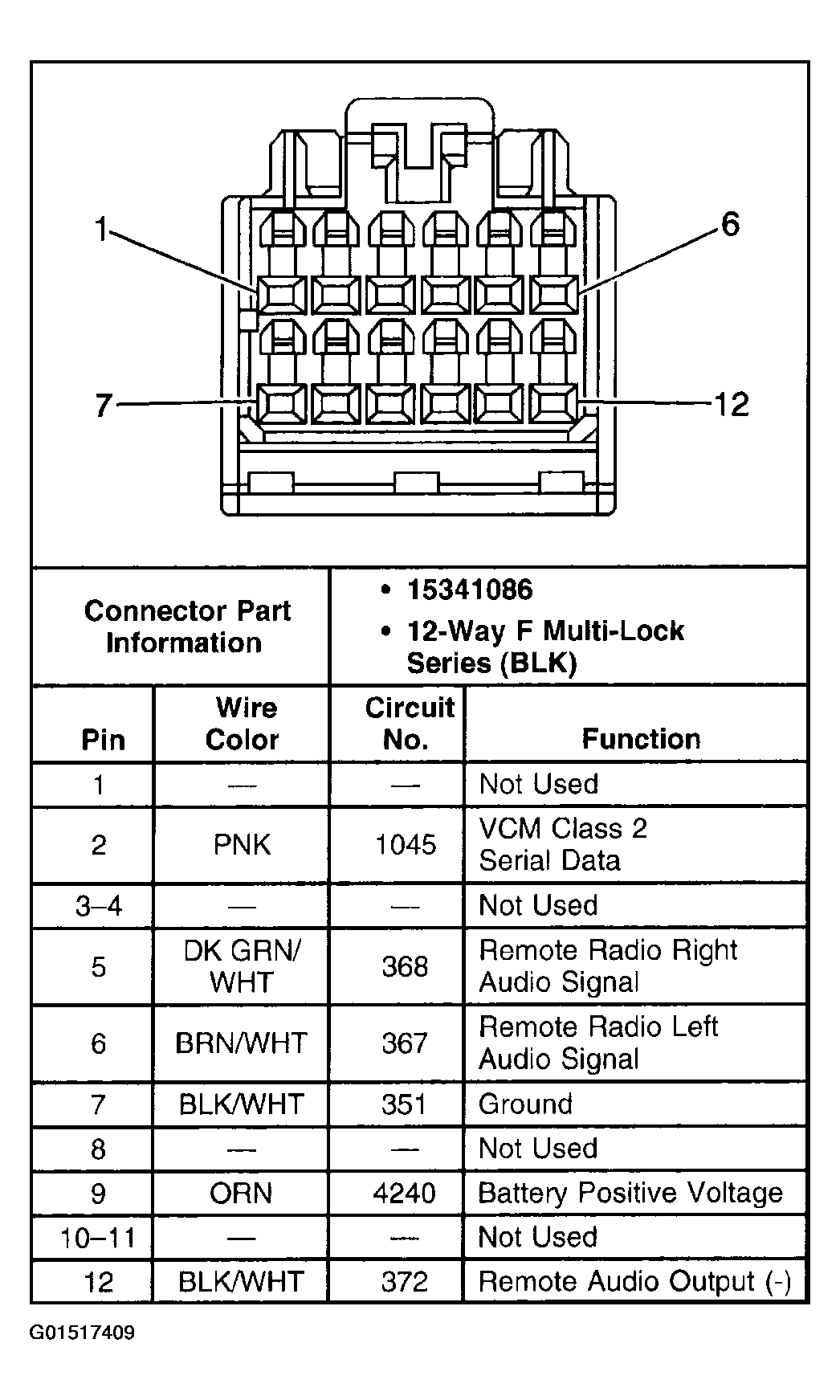

Fig 10: Identifying Rear Seat Entertainment (RSE) Assembly Connector Terminals

G01517409

Courtesy of GENERAL MOTORS CORP.

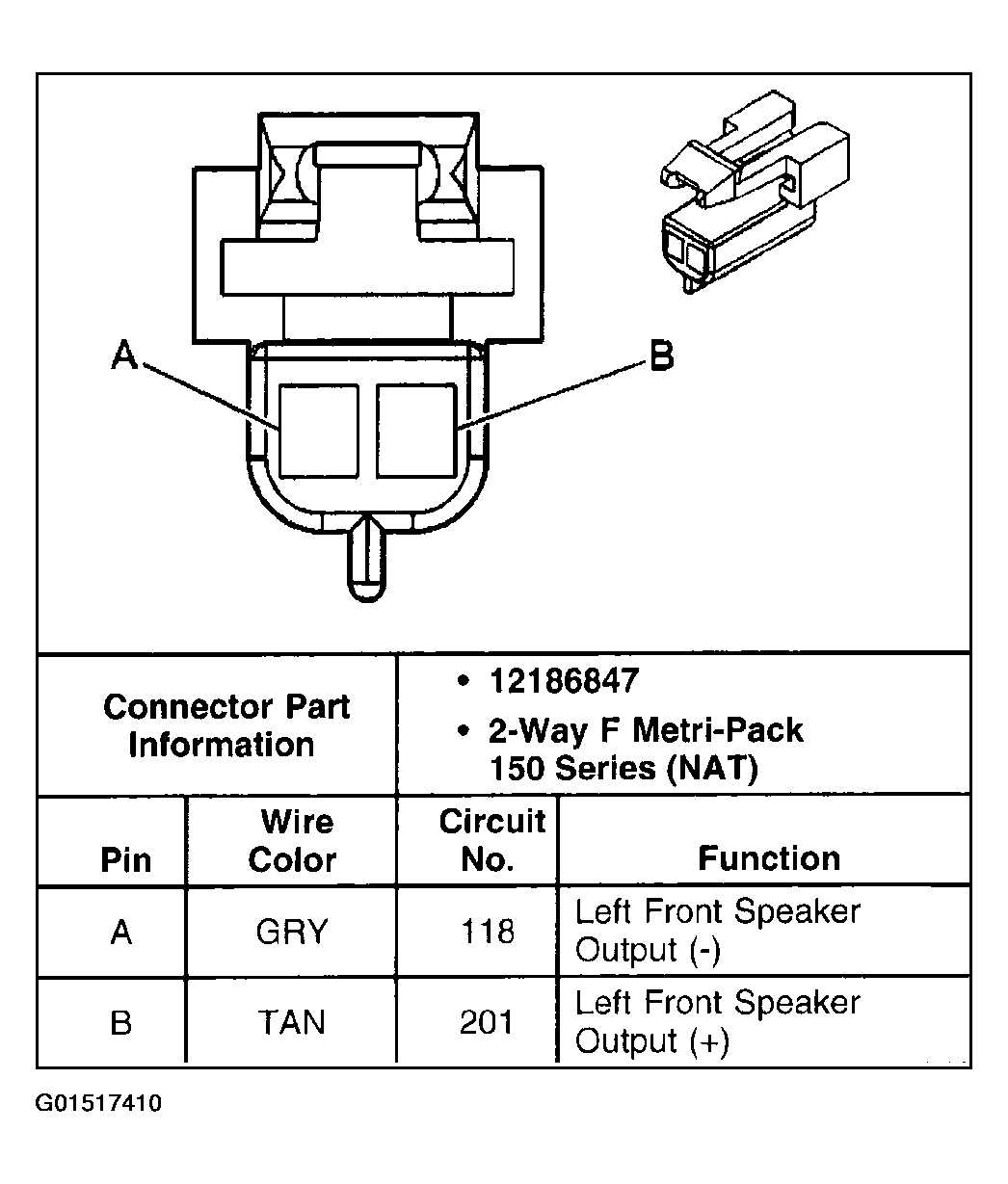

Fig 11: Identifying LF Door Speaker Connector Terminals

G01517410

Courtesy of GENERAL MOTORS CORP.

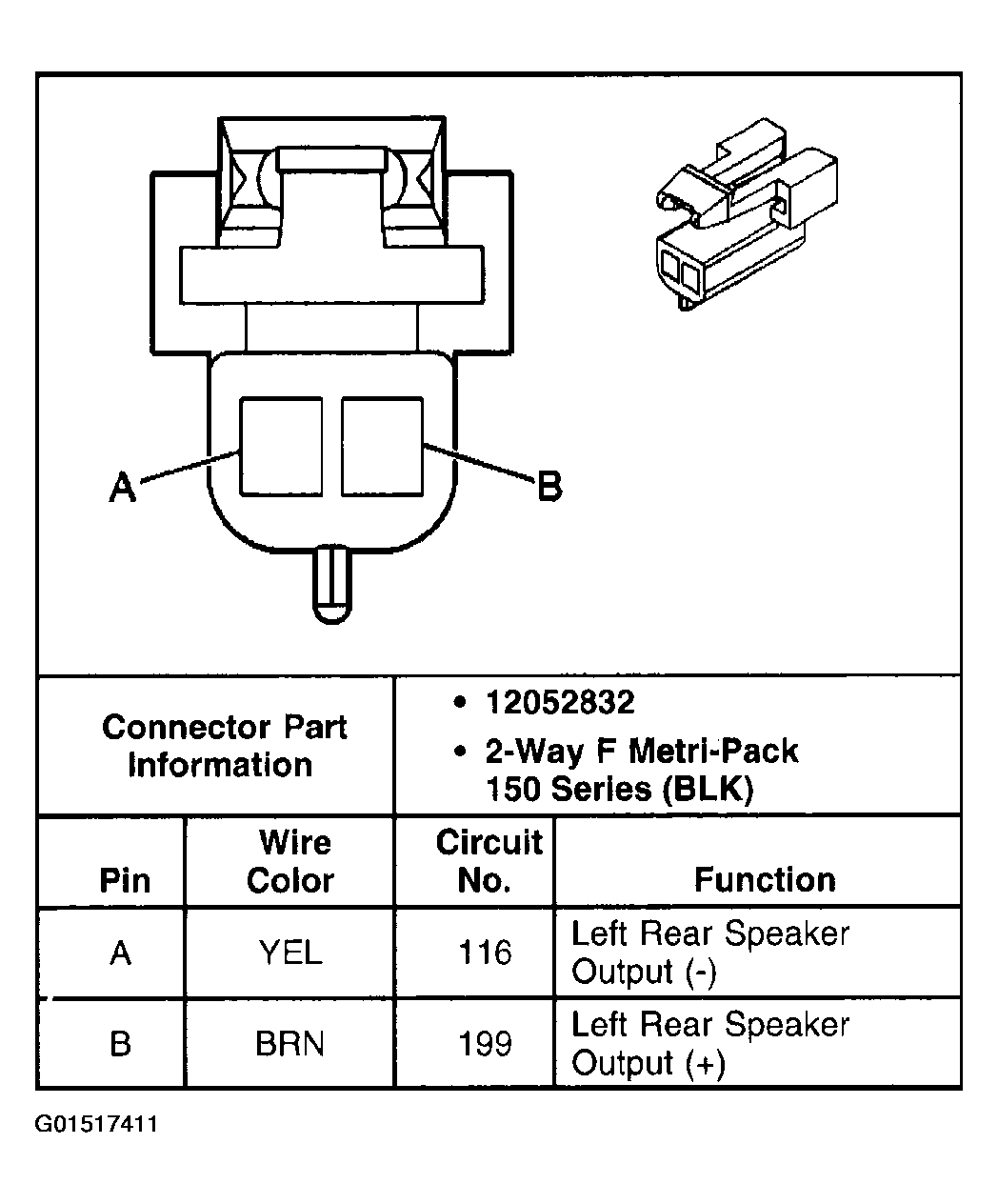

Fig 12: Identifying LR Door Speaker Connector Terminals

G01517411

Courtesy of GENERAL MOTORS CORP.

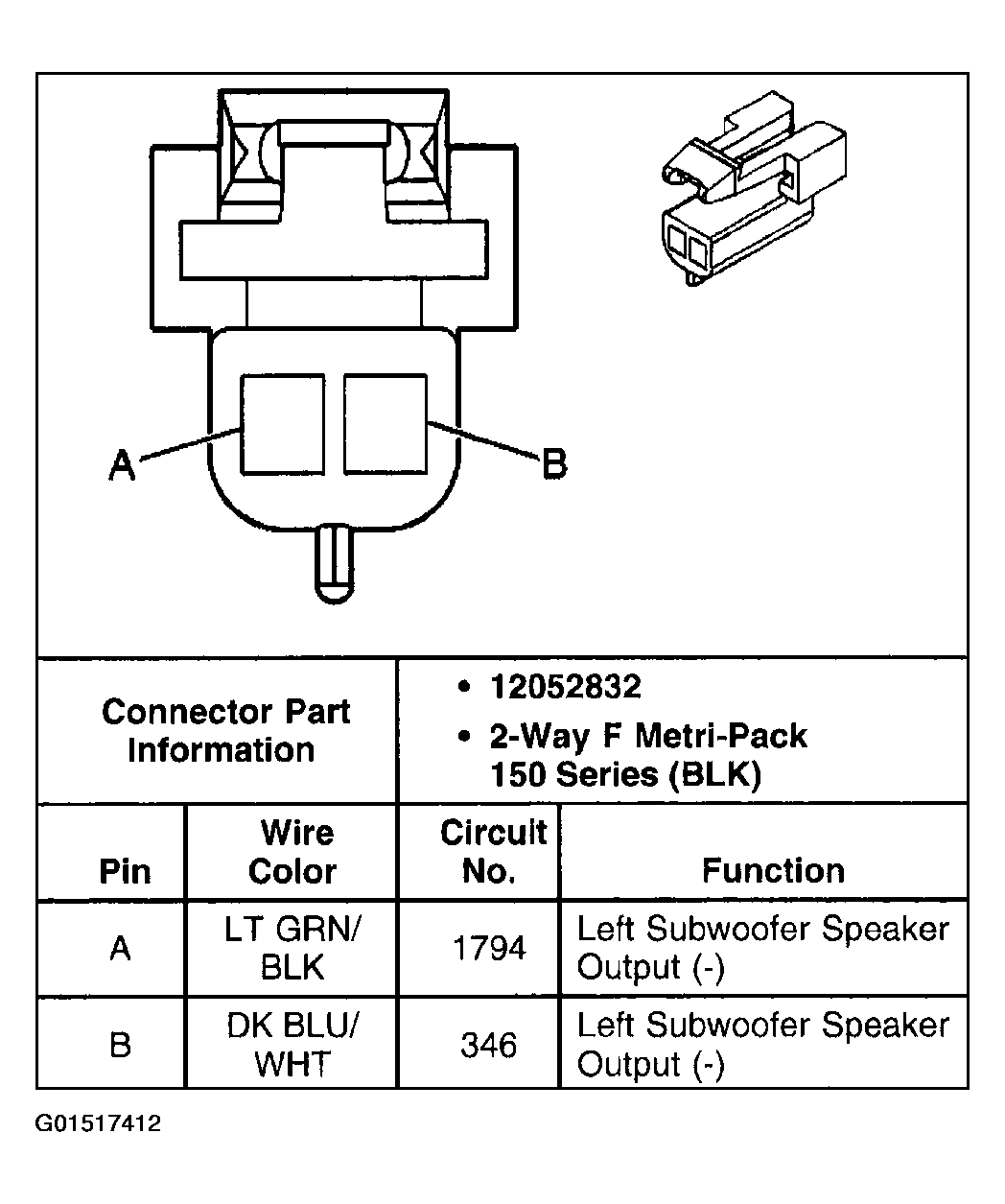

Fig 13: Identifying LR Door Speaker Connector Terminals (Pontiac UQ3 Only)

G01517412

Courtesy of GENERAL MOTORS CORP.

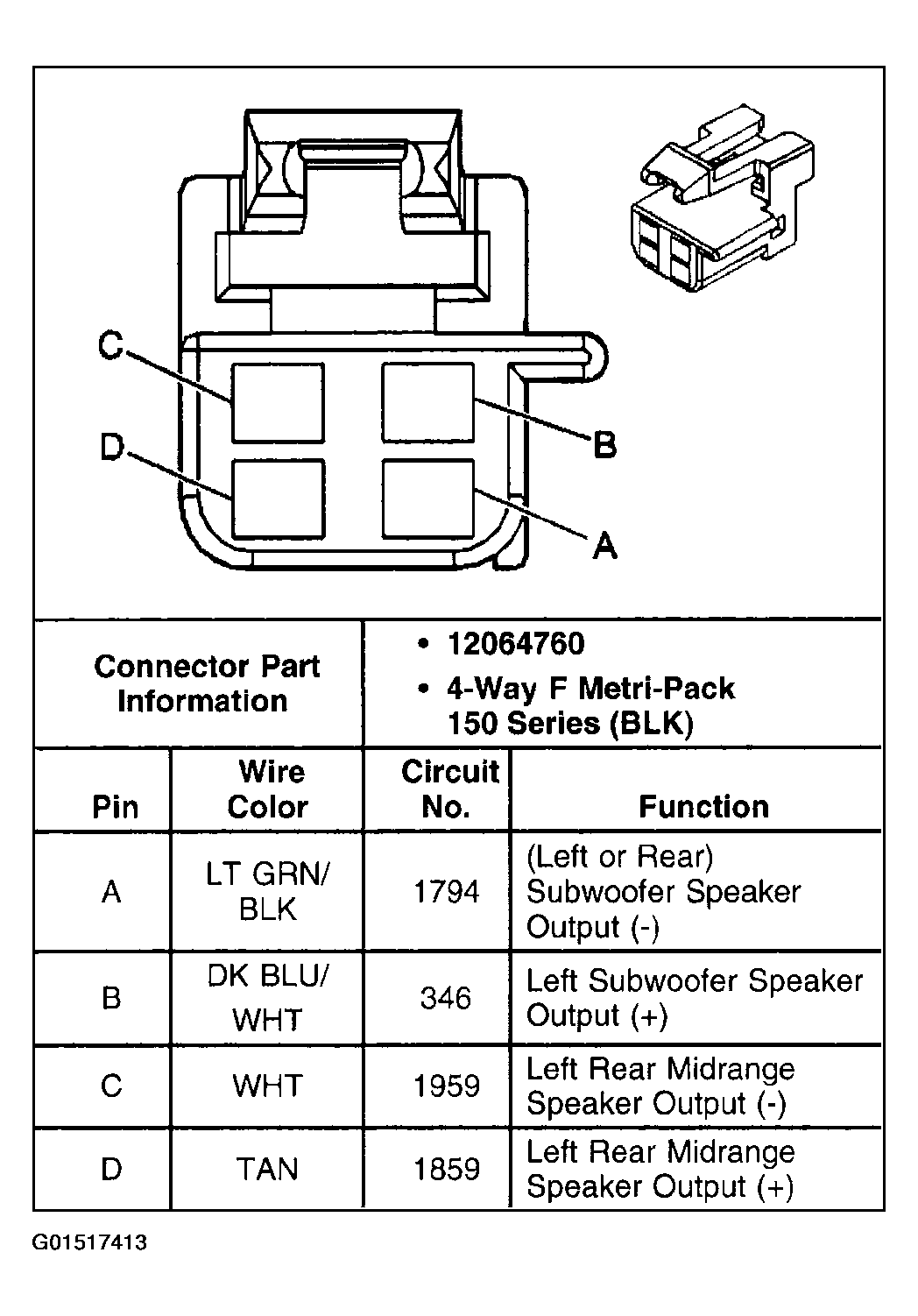

Fig 14: Identifying LR Subwoofer Connector Terminals (Buick UQ3)

G01517413

Courtesy of GENERAL MOTORS CORP.

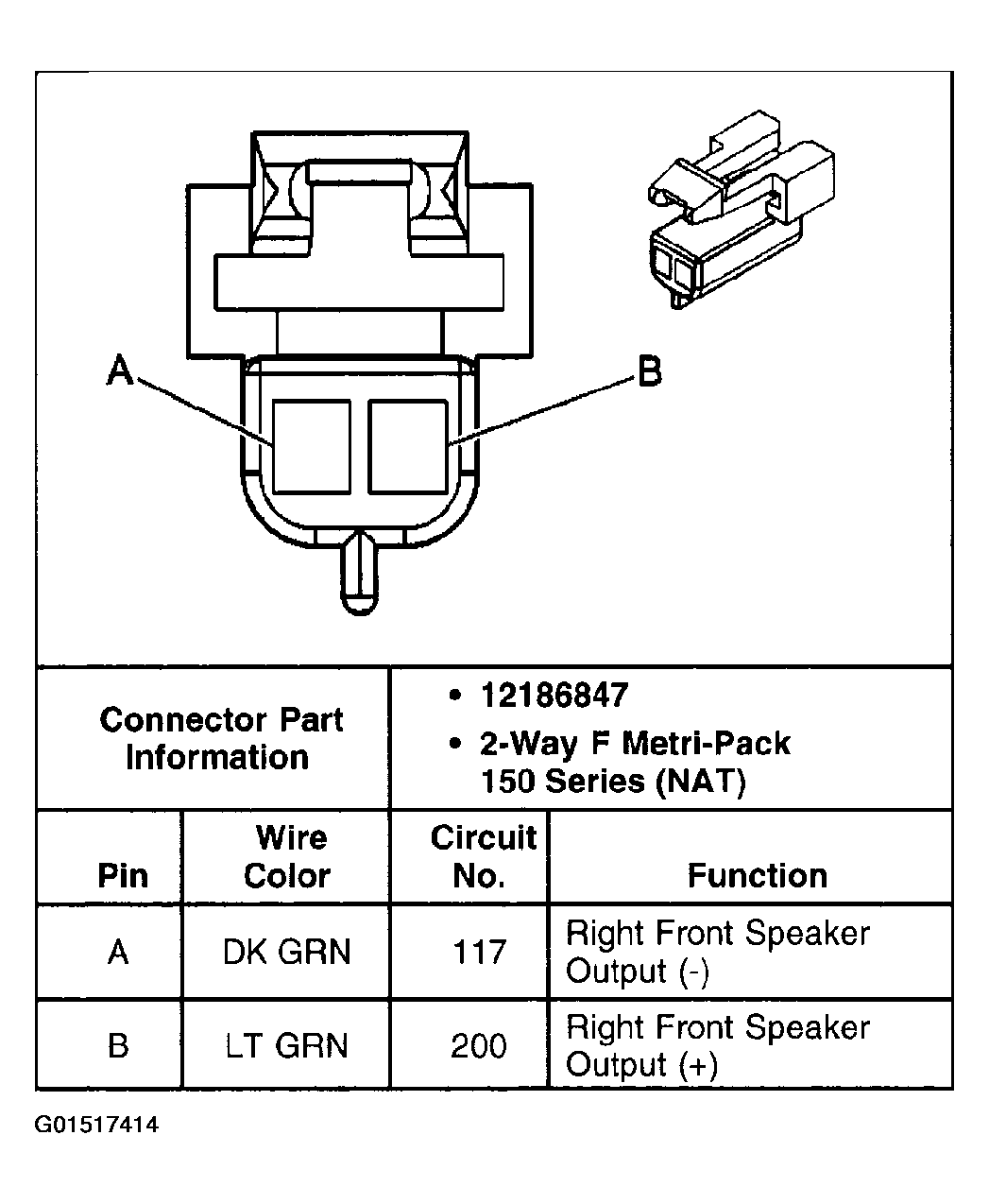

Fig 15: Identifying RF Door Speaker Connector Terminals

G01517414

Courtesy of GENERAL MOTORS CORP.

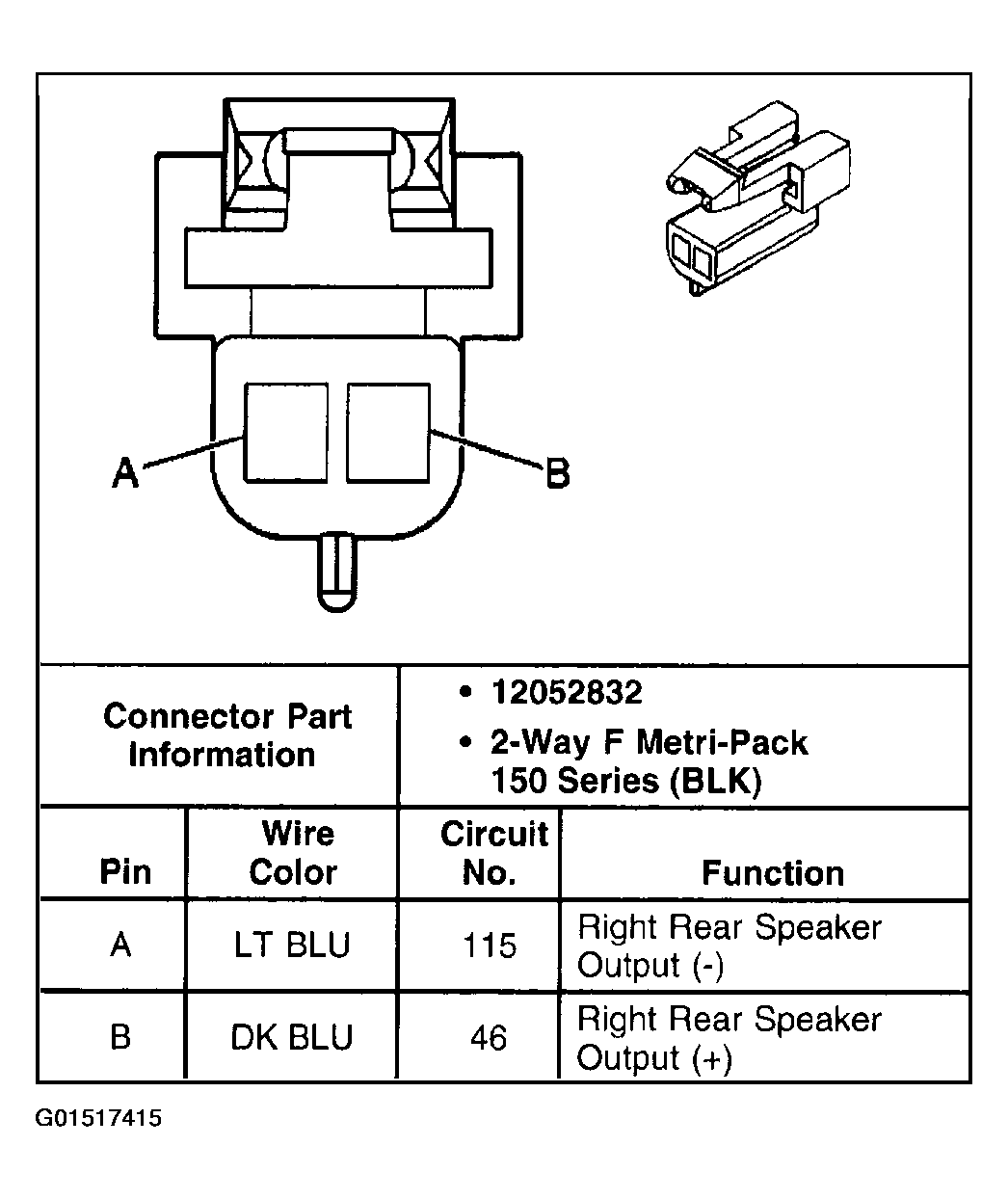

Fig 16: Identifying RR Door Speaker Connector Terminals

G01517415

Courtesy of GENERAL MOTORS CORP.

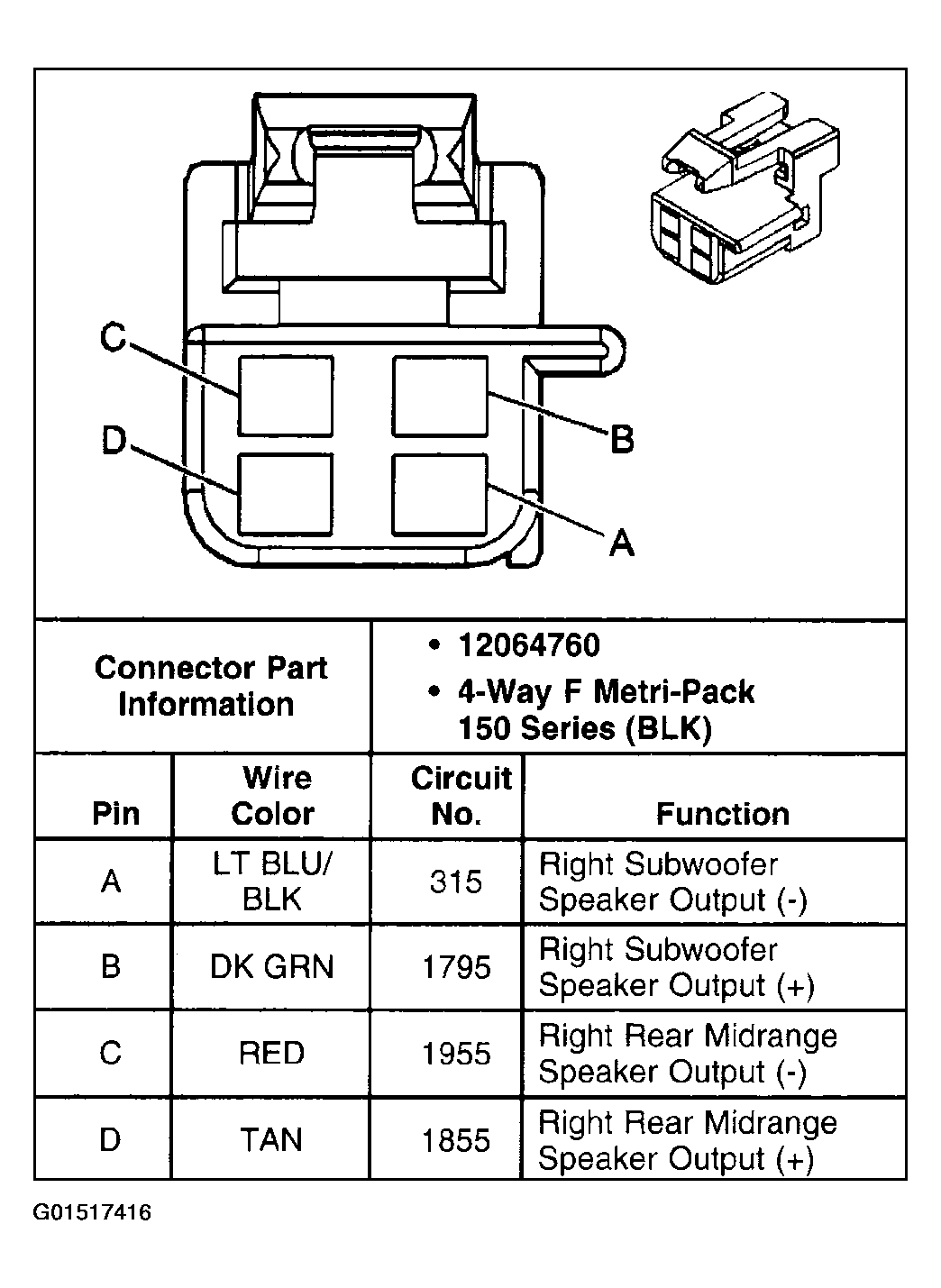

Fig 17: Identifying RR Door Speaker Connector Terminals (Pontiac UQ3 Only)

G01517416

Courtesy of GENERAL MOTORS CORP.

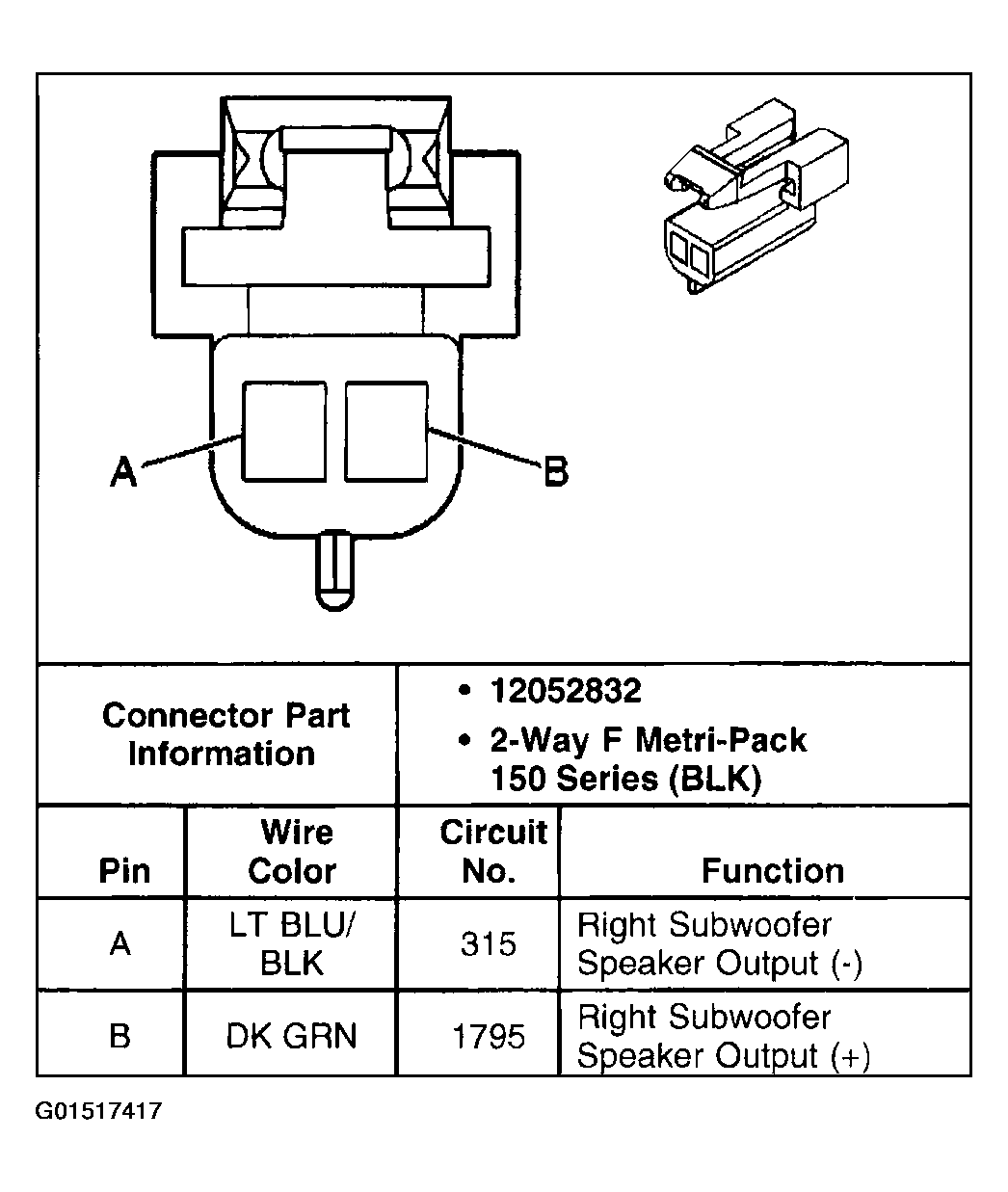

Fig 18: Identifying RR Subwoofer Connector Terminals (Buick UQ3)

G01517417

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Left Steering Wheel Controls Connector Terminals

G01517418

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Right Steering Wheel Controls Connector Terminals

G01517419

Courtesy of GENERAL MOTORS CORP.

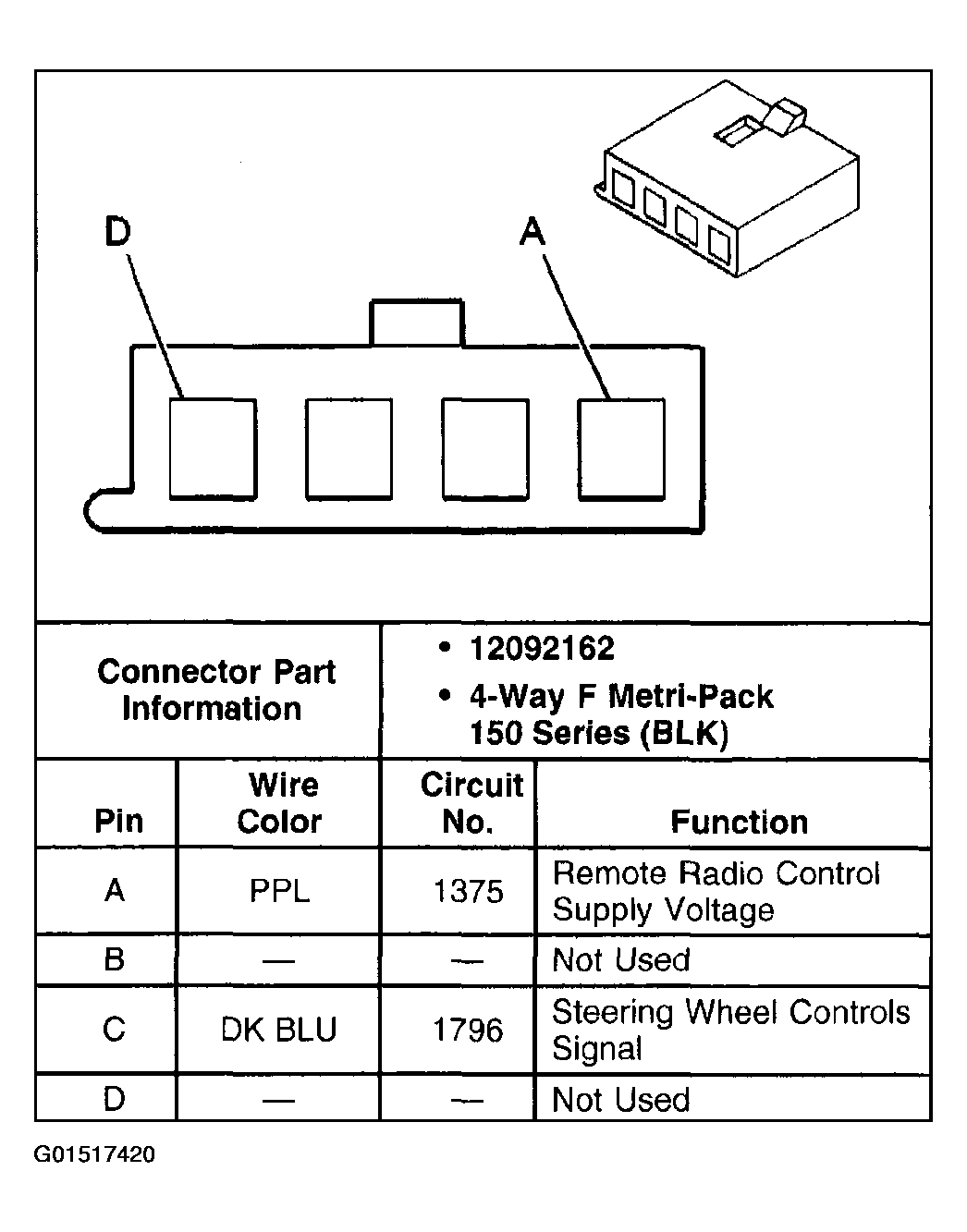

Fig 21: Identifying Tailgate Audio Controls Connector Terminals (Pontiac)

G01517420

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying LF Door Tweeter Connector Terminals

G01517421

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying RF Door Tweeter Connector Terminals

G01517422

Courtesy of GENERAL MOTORS CORP.
